BEYOND S20R-SVZCL11 Internal Turning Tools Holder S20R SVZCL11 SVZCL 11 Solid Carbide Boring Bar SVZCL Carbide Inserts VCMT1103 VCMT110304

• S20R-SVZCL11 Information Overview

• Overview

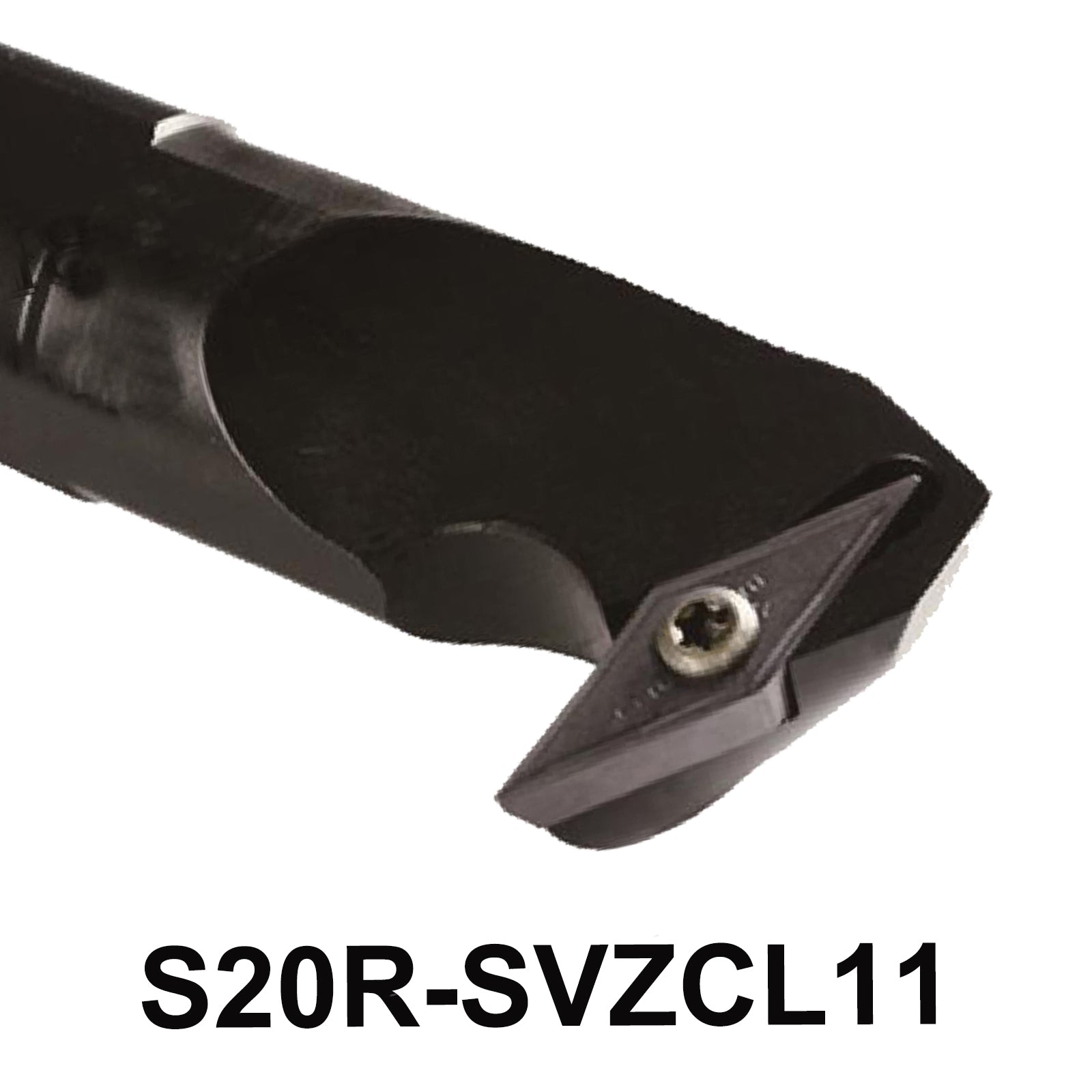

Introducing the S20R-SVZCL11 Mechanical Lathe CNC Internal Boring Bar Tool Holder, expertly crafted for precision in CNC machining. With a cutting edge angle of 93° and a relief angle of 7°, this tool holder is designed for exceptional performance and durability. Made from high-quality alloy steel, it’s compatible with a variety of carbide inserts, making it a versatile addition to your machining arsenal.

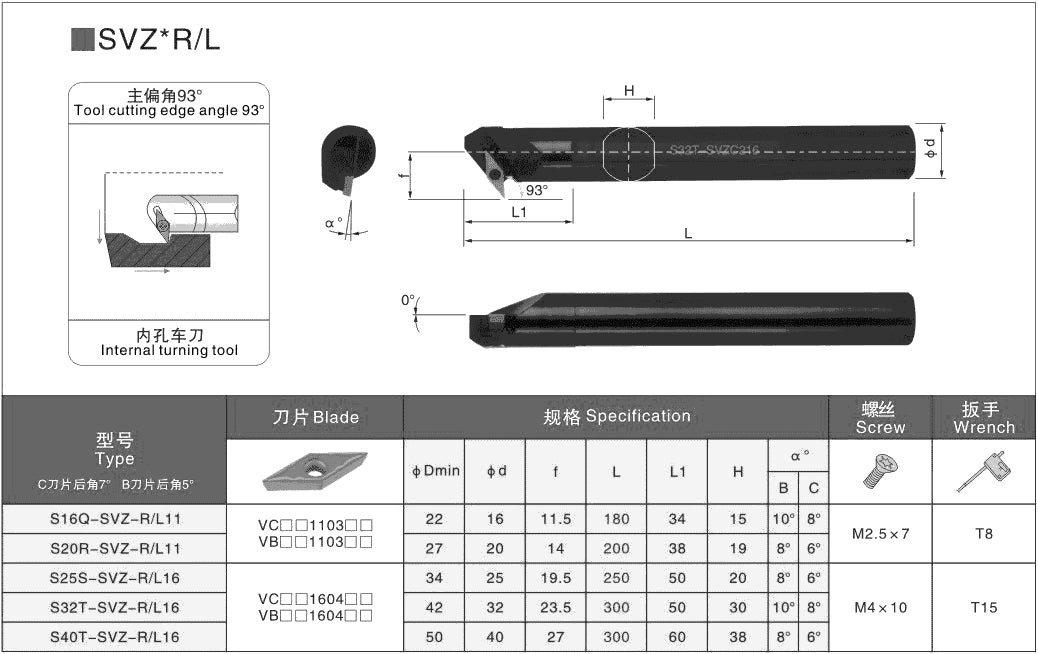

• Dimensions and Specifications of S20R-SVZCL11 Carbide Boring Bars

• Features and Specifications

  • Model: S20R-SVZCL11
  • Package Includes: S20R-SVZCL11 Tool Holder and compatible Screws, and Wrenches
  • 93° cutting edge angle and 7° relief angle.
  • Material:  alloy steel
  • Type: S-Type (Screw-type)
  • Handle Diameter: 20mm
  • Total Length: 200mm
  • Cutting Blade Length: 11mm
  • Screw Size: M2.5*7
  • Wrench: T8
  • Compatible Blades: VCMT110302 VCMT110304 VCMT110308 VCMT220 VCMT221 VCMT222

• 5-Point Description

1. Precision Cutting Edge: The S20R-SVZCL11 features a 93° cutting edge angle and a 7° relief angle, ensuring accurate internal boring for superior surface finishes.
2. Robust Alloy Steel Design: Constructed from durable alloy steel, this tool holder withstands the rigors of machining, offering longevity and reliability.
3. Secure Screw-Type Mechanism: The S-type design with M2.5*7 screws provides stability during operation, while the included T8 wrench ensures easy adjustments.
4. Versatile Insert Compatibility: Compatible with various blades including VCMT110302, VCMT110304, VCMT110308, VCMT220, VCMT221, and VCMT222, enhancing your machining capabilities.
5. Optimized Dimensions: With a handle diameter of 20mm, total length of 200mm, and a cutting blade length of 11mm, this tool holder is designed for efficiency and ease of use.
