BEYOND S20R-SWLCR06 Internal Turning Tools Holder S20R SWLCR06 SWLCR 06 Boring Bars For Lathe SWLCR Carbide Inserts WCMT06T3 WCMT06T302

• S20R-SWLCR06 Information Overview

• Overview

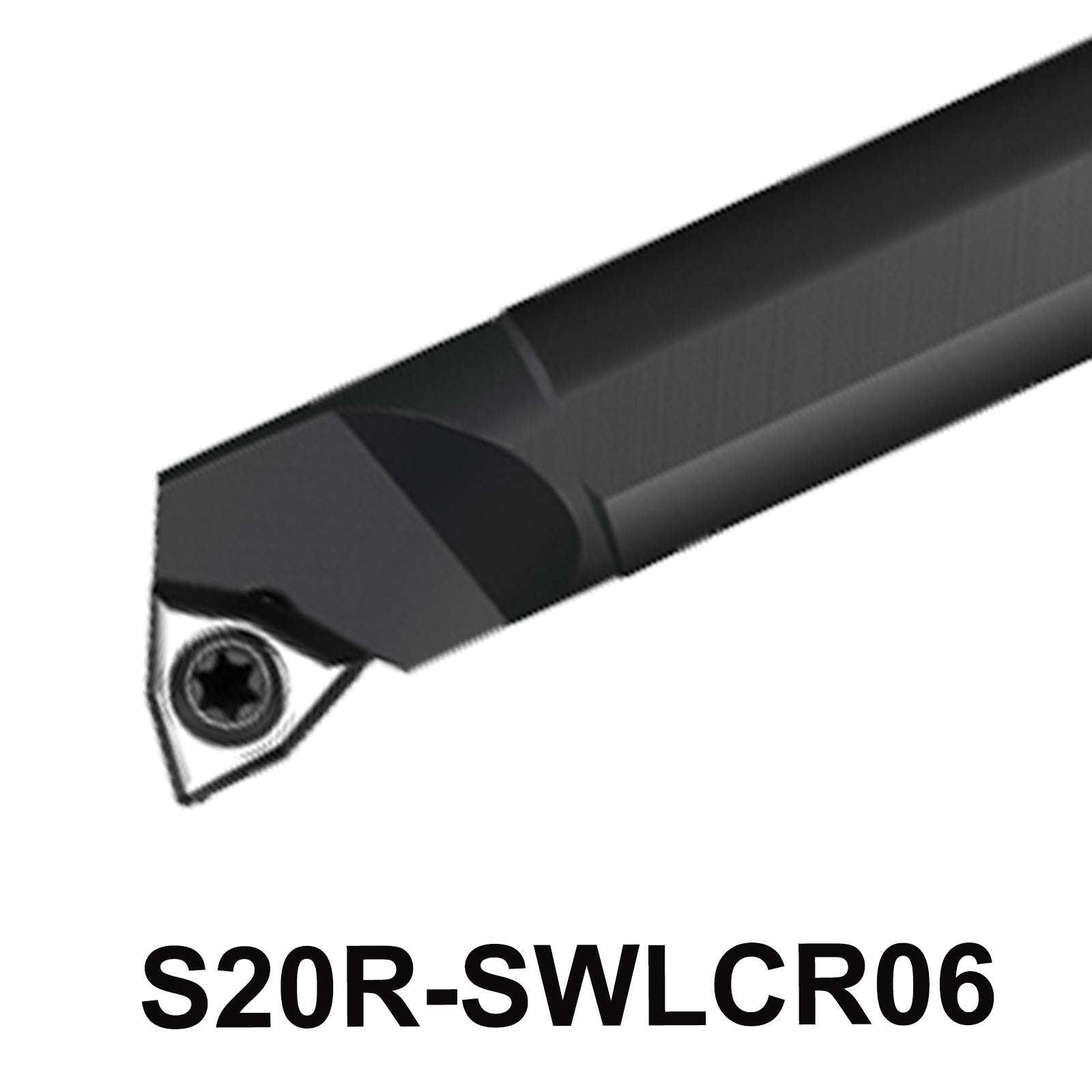

Introducing the S20R-SWLCR06 Internal Boring Bar Tool Holder, designed for precision in mechanical lathes and CNC applications. Featuring a 95° cutting edge angle and a 7° relief angle, this tool holder ensures optimal performance in internal machining tasks. Made from high-strength alloy steel, it guarantees durability and stability, making it an essential addition to your machining toolkit.

• Dimensions and Specifications of S20R-SWLCR06 Carbide Boring Bars

• Features and Specifications

  • Model: S20R-SWLCR06
  • Package Includes: S20R-SWLCR06 Tool Holder and compatible Screws, and Wrenches
  • 95° cutting edge angle and 7° relief angle.
  • Material:  alloy steel
  • Type: S-Type (Screw-type)
  • Handle Diameter: 20mm
  • Total Length: 200mm
  • Cutting Blade Length: 6mm
  • Screw Size: M4*10
  • Wrench: T15
  • Compatible Blades: WCMX06T302  WCMX06T308

• 5-Point Description

1. Exceptional Precision: The 95° cutting edge and 7° relief angle provide optimal performance for internal boring tasks, enhancing accuracy.
2. Durable Construction: Made from robust alloy steel, ensuring longevity and resistance to wear under heavy machining conditions.
3. Versatile Compatibility: Compatible with blades WCMX06T302 and WCMX06T308, allowing for diverse machining applications.
4. Ergonomic Design: With a handle diameter of 20mm and a total length of 200mm, this tool holder is comfortable to use, promoting user control.
5. User-Friendly Setup: Equipped with M4*10 screw and T15 wrench for quick adjustments and easy maintenance.
