Overview:

Optimize your CNC machining with the S20R-SWLNR08 Right Tool Holder. This internal turning tool holder is crafted from durable alloy steel, featuring a 95° cutting edge angle and 0° relief angle for precise operations. Designed for CNC machine tools, lathes, and machining centers, it supports a range of WNMG carbide inserts, ensuring versatility and reliability in metalworking applications.

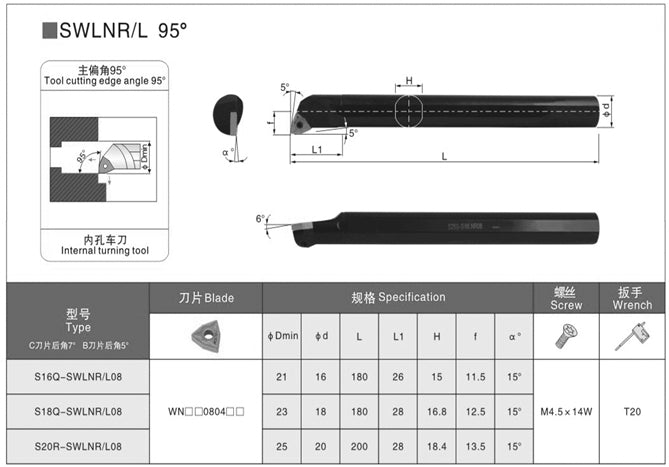

Specifications and Dimensions:

• Type: Right Tool Holder
• Material: Alloy Steel
• Model: S20R-SWLNR08
• Cutting Edge Angle: 95°
• Relief Angle: 0°
• Diameter of Handle: 20mm
• Total Length: 200mm
• Length of Cutting Blade: 8mm
• Screw: M4.5*14W
• Wrench: T20
• Blade Compatibility: WNMG080404, WNMG080408, WNMG080412, WNMG431, WNMG432, WNMG433

5-Point Description:

1. High-Quality Material: Made from robust alloy steel for durability and reliability.
2. Precise Cutting Edge: Features a 95° cutting edge angle and 0° relief angle for accurate machining.
3. Versatile Compatibility: Supports WNMG carbide inserts including WNMG080404, WNMG080408, WNMG080412, WNMG431, WNMG432, WNMG433.
4. Optimal Dimensions: Handle diameter of 20mm, total length of 200mm, and 8mm cutting blade length.
5. Wide Application: Perfect for use in CNC machine tools, CNC lathes, and machining centers, enhancing machining precision and efficiency.

Application:

The S20R-SWLNR08 CNC Right Tool Holder is primarily used in CNC machine tools, CNC lathes, and machining centers for internal turning operations. It is ideal for applications requiring precision and reliability in metalworking and machining tasks.

Advantages:

• Precision Machining: Features a 95° cutting edge angle and no relief angle, ensuring precise cuts and excellent surface finishes.
• Durable Construction: Made from high-quality alloy steel, providing durability and resistance to wear and tear in industrial environments.
• Versatile Compatibility: Compatible with a range of WNMG carbide inserts (WNMG080404, WNMG080408, WNMG080412, WNMG431, WNMG432, WNMG433), offering flexibility for various machining needs.


Package Includes:

• S20R-SWLNR08 Tool Holder
• Compatible Screws and Wrenches

Reasons to Choose: The S20R-SWLNR08 CNC Right Tool Holder stands out due to its precision-oriented design, durable build, versatility with multiple insert options, ergonomic handling, and broad application scope. It is an excellent choice for machinists and manufacturers seeking reliable performance and enhanced machining capabilities.

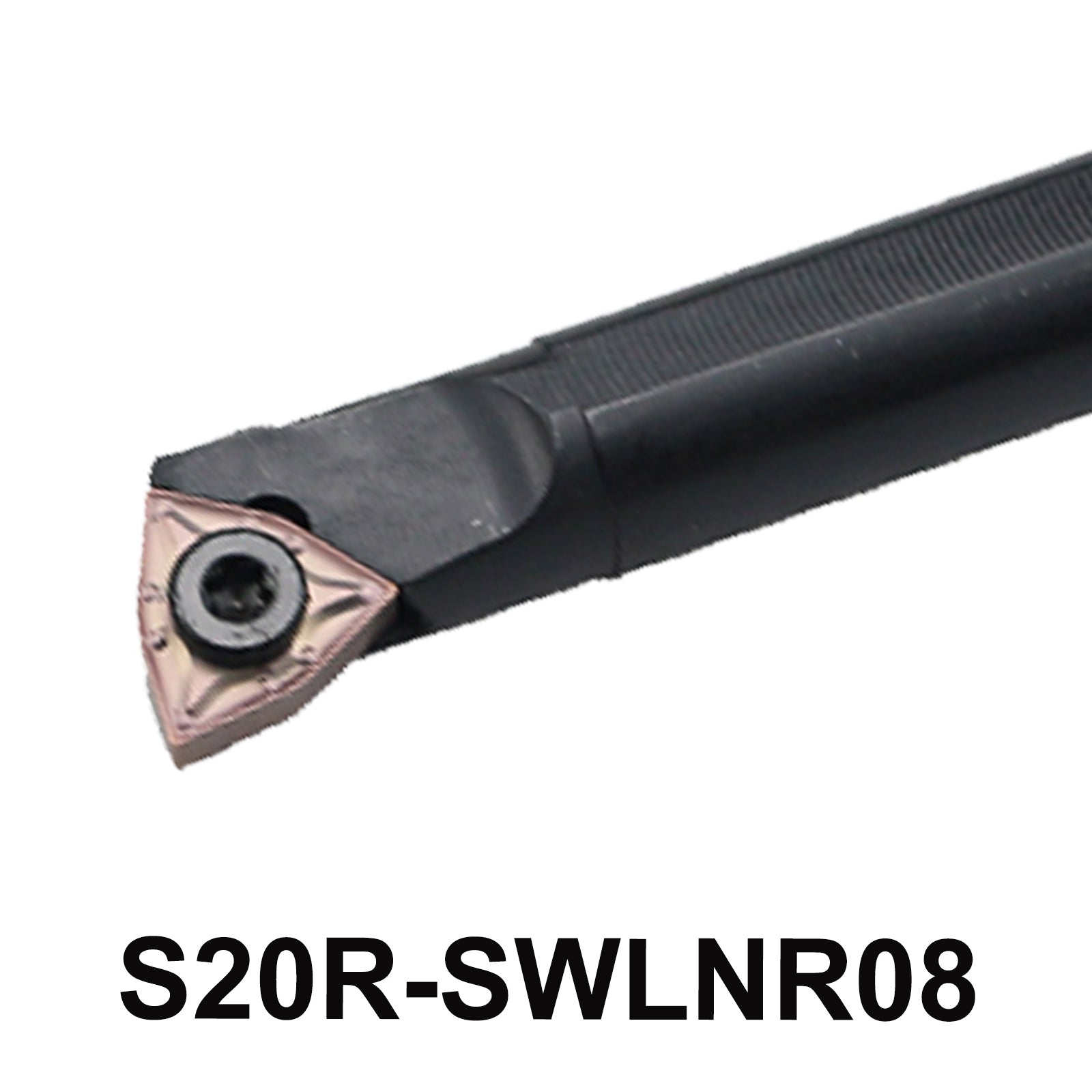

S20R-SWLNR08 CNC Tool Holder: Precision Tool for CNC Lathes

• 95° Tool Cutting Edge Angle

• 0° Blade Relief Angle

• Alloy Steel Construction

• S-Type Model: S20R-SWLNR08

• Compatible with WNMG Inserts

• Application in CNC Machining

• Specifications and Dimensions

• Features and Benefits
