Key Features:

• Cutting Edge Angle: 95°
• Relief Angle: 7°
• Material: High-grade alloy steel
• Diameter of Handle: 25mm
• Total Length: 250mm
• Length of Cutting Blade: 11mm
• Screw Type: M4*8
• Wrench Type: T15
• Compatible Blades: DCMT11T302, DCMT11T304, DCMT11T308, DCMT3(2.5)0, DCMT3(2.5)1, DCMT3(2.5)2

Applications: Ideal for precise internal turning tasks on CNC machine tools and lathes. Its versatility allows for use with various DCMT carbide inserts, making it suitable for different materials and machining needs.

Product Overview:

The S25S-SDUCL11 CNC Internal Boring Bar Tool Holder is meticulously engineered to deliver precision and durability for internal turning operations. Constructed from high-quality alloy steel, this tool holder features a 95° cutting edge angle and a 7° blade relief angle, which optimizes cutting performance and reduces tool wear. With a robust 25mm handle diameter and an extended total length of 250mm, it ensures exceptional stability and control during operation. Designed for compatibility with a range of blade inserts, the S25S-SDUCR11 is the perfect choice for professional machinists seeking reliability and flexibility in CNC machining tasks.

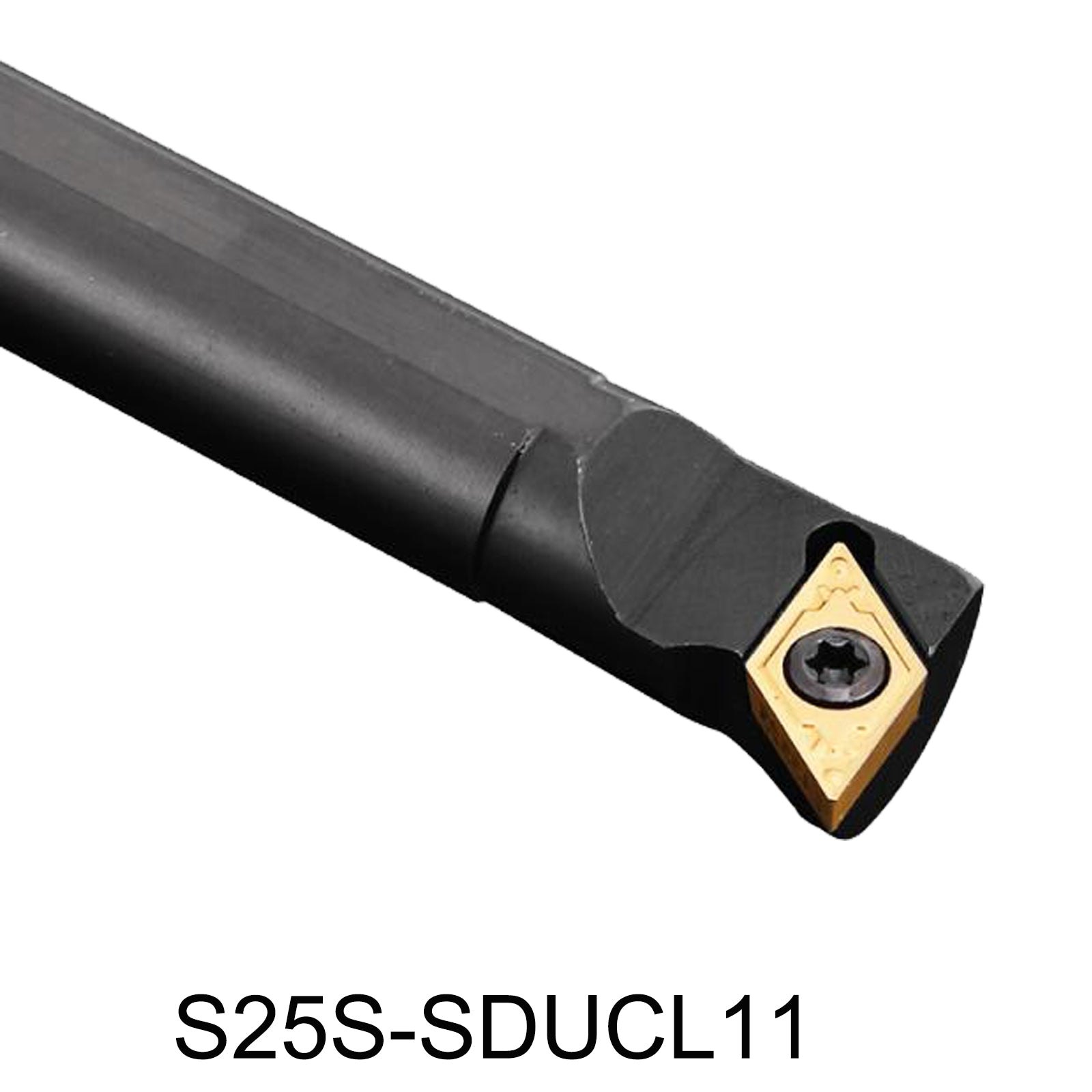

S25S-SDUCL11 CNC Lathe Tool Holder Bushings - Premium Alloy Steel S25S-SDUCL11 boring bar holder

• Exceptional Precision and Durability

• Versatile Tool Holder for CNC Lathes

• Advanced Cutting Edge Technology

• Precision Engineering with 95° Cutting Edge

• Robust Alloy Steel Construction

• Compatible with Multiple DCMT Blades

5-Point Description for S25S-SDUCL11 CNC Internal Boring Bar Tool Holder

1. Precision Cutting Angles: Engineered with a 95° cutting edge angle and a 7° blade relief angle, the S25S-SDUCL11 ensures highly accurate internal turning, reducing chatter and improving surface finish.

2. Durable Alloy Steel Construction: Constructed from high-quality alloy steel, this tool holder offers exceptional strength and longevity, capable of withstanding demanding machining conditions and extended use.

3. Versatile Carbide Insert Compatibility: Designed to accommodate a variety of carbide inserts, including DCMT11T302, DCMT11T304, DCMT11T308, DCMT3(2.5)0, DCMT3(2.5)1, and DCMT3(2.5)2, providing flexibility for different cutting applications.

4. Stable and Secure Operation: Features a 25mm diameter handle that delivers superior stability and control during operations. The S-type screw mechanism ensures secure and precise adjustments of the cutting blade.

5. Wide Application Range: Ideal for use with CNC machine tools and lathes, this internal boring bar tool holder enhances the accuracy and efficiency of internal turning tasks, making it a valuable addition to any machining setup.

Advantages:

1. Precision Cutting: 95° cutting edge angle enhances accuracy and surface finish.
2. Durable Construction: Made from alloy steel for long-lasting performance.
3. Versatile Blade Compatibility: Supports a range of DCMT carbide inserts for flexible machining.
4. Stable Operation: 25mm handle diameter and 250mm length provide excellent stability and control.
5. Easy Maintenance: Includes M4*8 screw and T15 wrench for straightforward adjustments and maintenance.
