Overview

Introducing the S25S-SDXCL11 Mechanical Lathe CNC Internal Boring Bar Tool Holder, designed for precision and durability in internal turning applications. With a tool cutting edge angle of 95° and a relief angle of 7°, this tool holder provides exceptional performance in CNC machine tools and lathes. Constructed from high-quality alloy steel, it features an S-type screw mechanism for secure blade attachment and easy adjustments. The tool holder is compatible with a variety of cutting blades, ensuring versatility and efficiency in your machining operations.

Key Features

• Cutting Edge Angle: 95°
• Relief Angle: 7°
• Material: Alloy Steel
• Handle Diameter: 25mm
• Total Length: 250mm
• Blade Length: 11mm
• Compatible Inserts: DCMT11T302,DCMT11T304,DCMT11T308,DCMT11T312 DCMT3(2.5)0, DCMT3(2.5)1,DCMT3(2.5)2,DCMT3(2.5)3
• Includes: M4*10 Screws, T15 Wrench

5-Point Description

1. Precision Cutting Angles: The 95° cutting edge angle and 7° relief angle ensure accurate and efficient internal turning, reducing tool wear and improving finish quality.
2. Robust Alloy Steel Construction: Provides excellent durability and resistance to wear, ensuring reliable performance in high-demand machining tasks.
3. Versatile Blade Compatibility: Compatible with multiple blade models (DCMT and DCMT3 series) for a range of internal turning applications.
4. Easy Adjustment and Maintenance: The S-type screw mechanism allows for quick and secure blade changes, with included M4*10 screw and T15 wrench.
5. Optimized for CNC Lathes: Designed for use in CNC machine tools and lathes, enhancing efficiency and precision in internal boring and turning tasks.

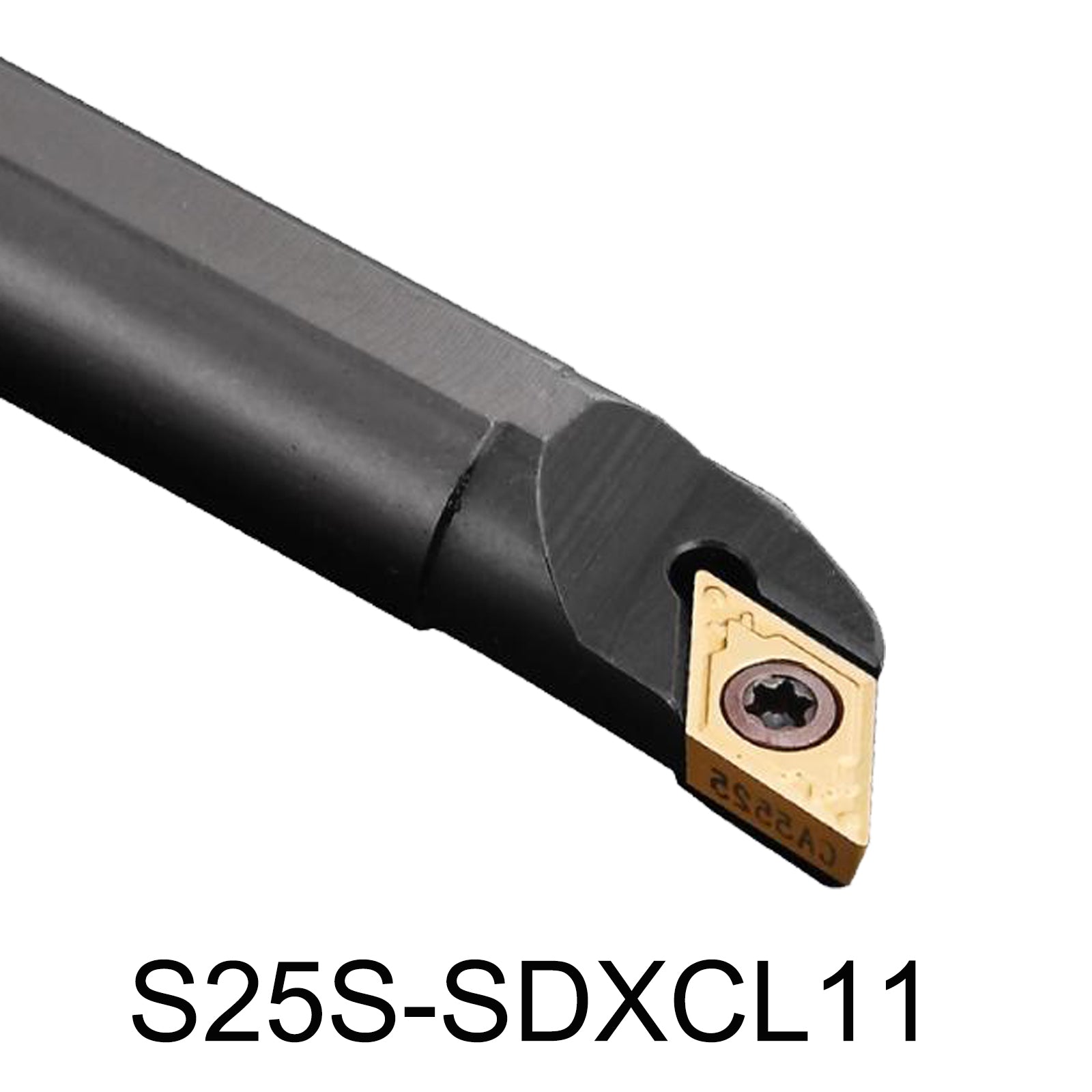

S25S-SDXCL11  CNC Internal Boring Bar Tool Holder Anti Vibration S25S SDXCL11 Boring Bar Precision

• Superior Precision and Design

• Durable Alloy Steel Construction

• Enhanced Machining Efficiency

• 95° Cutting Edge Angle: Provides accurate and efficient internal turning with exceptional edge stability.

• 7° Relief Angle: Reduces cutting forces and enhances tool performance, ensuring smoother operations.

• High-Quality Alloy Steel: Ensures durability and resistance to wear, making it suitable for demanding machining tasks.

Application

• CNC Machine Tools: Ideal for use in CNC lathes and boring bars for internal turning and boring tasks.
• Internal Turning: Perfect for machining internal diameters with high precision and smooth finishes.
• Versatile Machining: Suitable for a wide range of materials and internal turning depths, depending on the blade used.

Advantages

• High Precision: Accurate cutting angles and relief reduce tool wear and improve machining results.
• Durable Construction: Alloy steel design ensures long tool life and consistent performance.
• Versatile Compatibility: Compatible with various blade models, providing flexibility for different machining needs.
