Overview

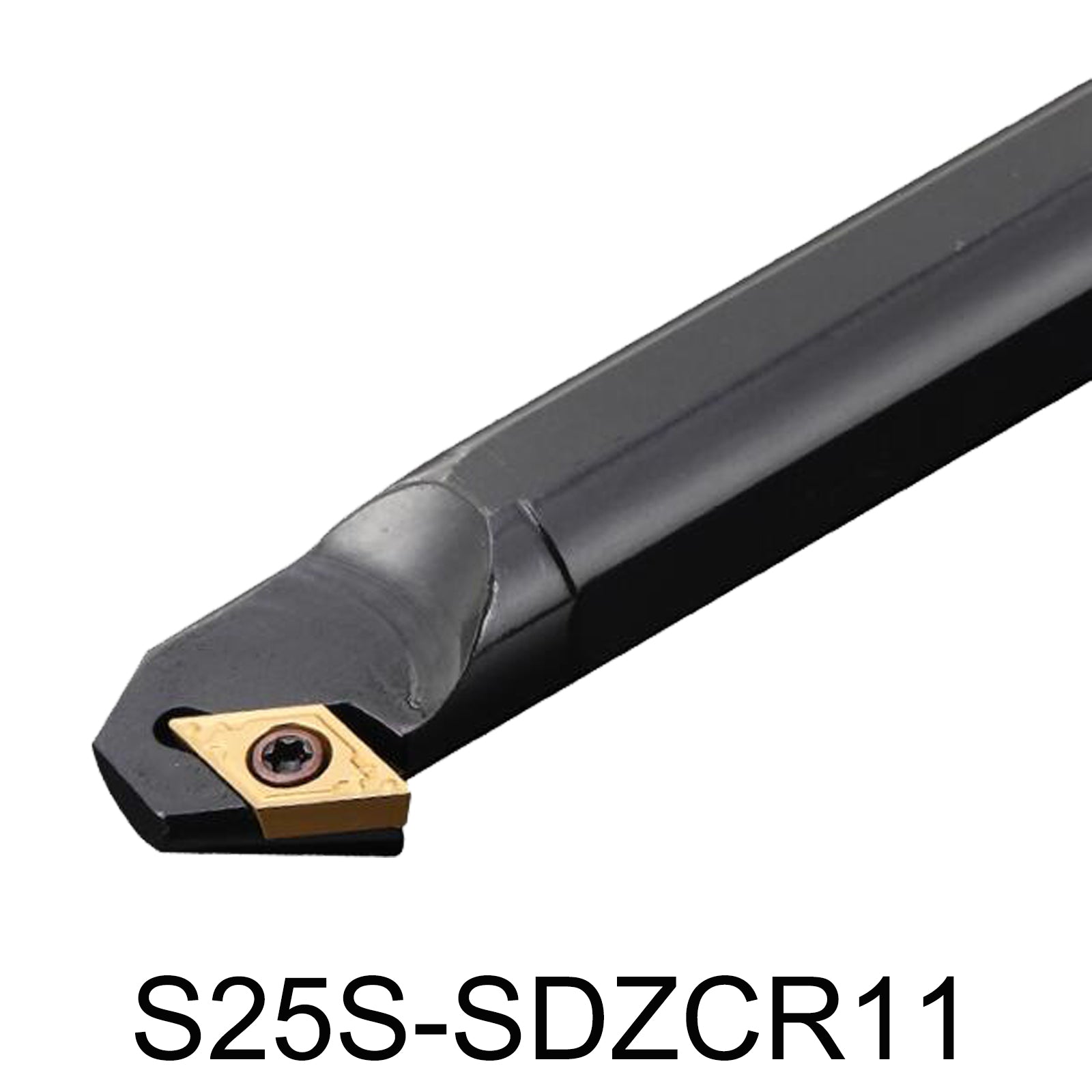

Discover the S25S-SDZCR11 CNC internal boring bar tool holder, engineered for high precision and durability. With a 93° cutting edge angle and a 7° relief angle, it excels in internal boring and turning tasks. Constructed from robust alloy steel, this tool holder features a secure S-type screw design, making it compatible with various DCMT blades. Ideal for CNC machine tools and lathes, it offers a versatile and reliable solution for advanced machining needs.

Key Features

• Model:S25S-SDZCR11
• Cutting Edge Angle: 93°
• Relief Angle: 7°
• Material: Alloy Steel
• Handle Diameter: 25mm
• Total Length: 250mm
• Blade Length: 11mm
• Compatible Inserts: DCMT11T302,DCMT11T304,DCMT11T308,DCMT11T312 DCMT3(2.5)0, DCMT3(2.5)1,DCMT3(2.5)2,DCMT3(2.5)3
• Includes: M4*8 Screws, T15 Wrench

Package Includes:

• S25S-SDZCR11 Tool Holder
• Compatible  Screws, and Wrenches

Application: Ideal for use in CNC machine tools and lathes, this tool holder is designed for internal boring and turning tasks. It is compatible with various DCMT blades, making it a versatile addition to your machining toolkit.

Advantages:

1. Precision Cutting: Achieves accurate and consistent internal boring.
2. Durable Material: Alloy steel construction for longevity and resistance to wear.
3. Versatile Blade Compatibility: Compatible with multiple DCMT blades for flexible use.
4. Secure Blade Hold: S-type screw mechanism ensures stability and reliability.
5. Enhanced Performance: Extended length and diameter for improved machining capabilities.

S25S-SDZCR11 S25S-SDZCR11 CNC Internal Boring Bar Tool Holder – Ultimate Precision for Advanced Machining

• Enhanced Precision with 93° Cutting Edge Angle and 7° Relief

• Robust Alloy Steel Construction for Superior Durability

• Versatile Compatibility with Multiple Blade Types

• Perfect for CNC Machines and Lathes

• Secure S-Type Screw Mechanism for Reliable Blade Hold

• Extended Length and Diameter for Enhanced Performance

5-Point Description:

1. 93° Cutting Edge Angle: Offers precise internal boring capabilities.
2. 7° Blade Relief Angle: Reduces tool wear and enhances cutting efficiency.
3. Alloy Steel Construction: Ensures long-lasting durability and strength.
4. Screw-Type Design: Provides a secure and stable blade attachment.
5. Extended Length: 250mm total length and 25mm handle diameter for enhanced performance.
