BEYOND S25S-SVQBR16 Internal Turning Tools Holder S25S SVQBR16 SVQBR 16 Boring Bar CNC Lathe Cutter Machine SVQBR Carbide Inserts VBMT1604 VBMT160404

• S25S-SVQBR16 Information Overview

• Overview

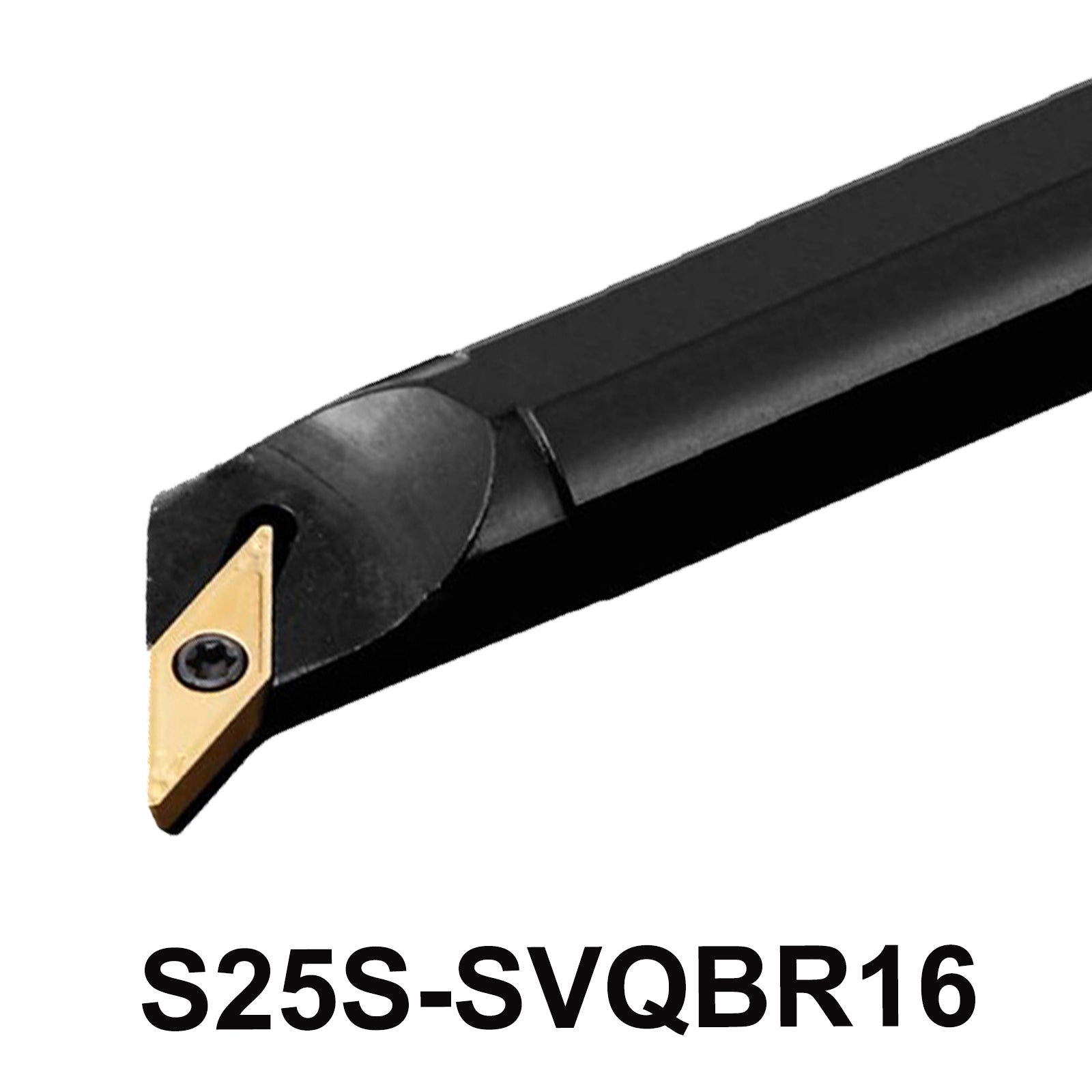

The S25S-SVQBR16 Mechanical Lathe CNC Internal Boring Bar Tool Holder is constructed from premium alloy steel, this tool holder is designed for both robustness and exceptional performance. It features a cutting edge angle of 117.5° for superior cutting accuracy and an adjustable screw-type mechanism for easy blade adjustments. Ideal for CNC lathes and internal boring applications, it supports a variety of carbide inserts, enhancing its versatility. Upgrade your machining setup with this high-performance tool holder to achieve flawless results and increased efficiency in every project.

• Dimensions and Specifications of S25S-SVQBR16 Boring Bar Holder Lathe

• Features and Specifications

  • Model: S25S-SVQBR16
  • Package Includes:S25S-SVQBR16 Tool Holder and compatible Screws, and Wrenches
  • 117.5° cutting edge angle and 5° relief angle.
  • Material:  alloy steel
  • Type: S-Type (Screw-type)
  • Handle Diameter: 25mm
  • Total Length: 250mm
  • Cutting Blade Length: 16mm
  • Screw Size: M4*10
  • Wrench: T15
  • Compatible Blades: VBMT160404  VBMT160408 VBMT331 VBMT332

• 5-Point Description

1. 1. Precision Cutting: 117.5° cutting edge angle and 5° blade relief angle for superior internal boring accuracy and smooth finishes.
   2. High-Quality Material: Constructed from alloy steel for enhanced durability and resistance to wear, ensuring long-term reliability.
   3. Versatile Compatibility: Supports VBMT160404, VBMT160408, VBMT331, and VBMT332 carbide inserts for a wide range of machining needs.
   4. Ergonomic Design: Features a 25mm diameter handle and a 250mm total length for excellent stability and ease of use.
   5. Complete Set: Comes with M4*10 screw and T15 wrench, providing everything needed for immediate setup and operation.
