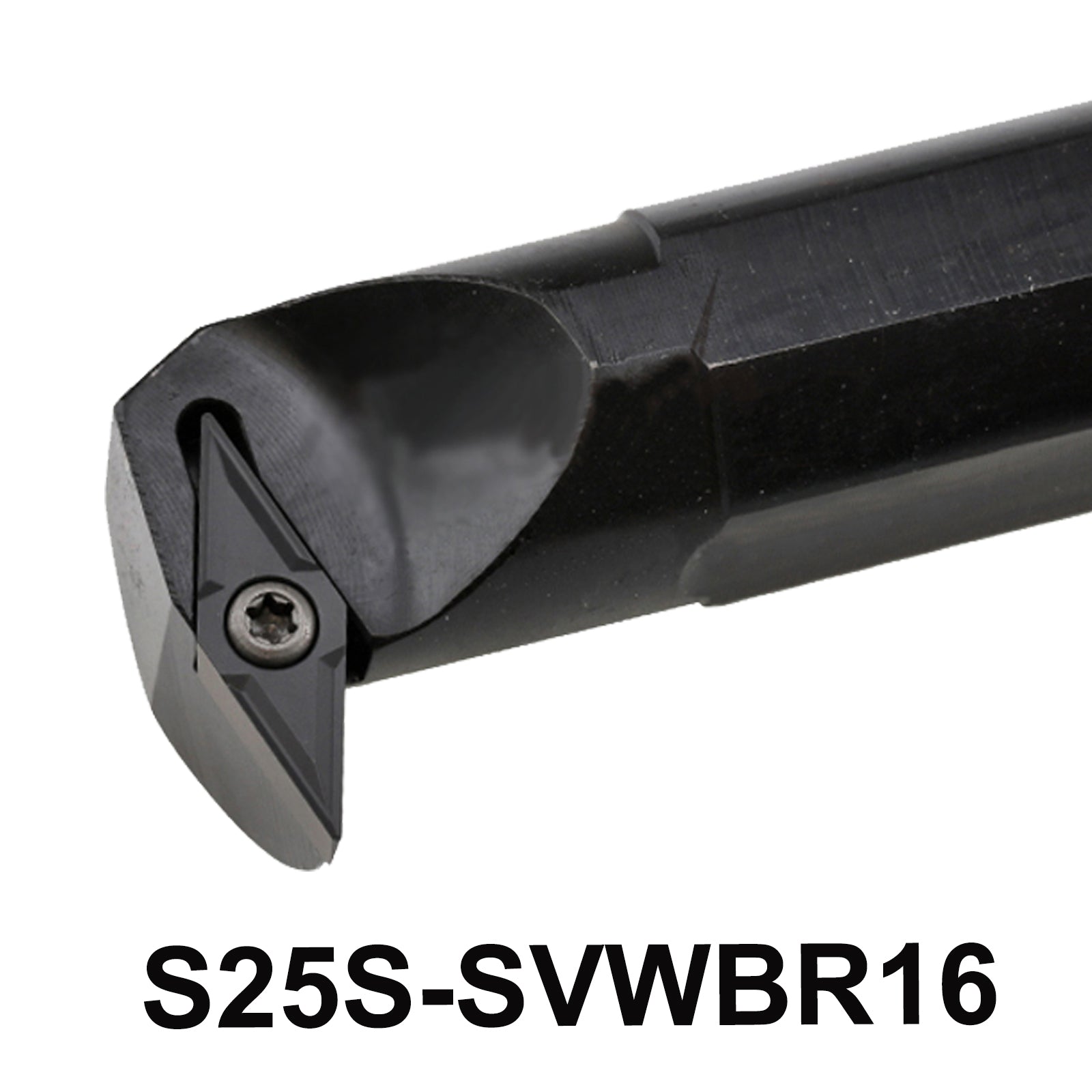

BEYOND S25S-SVWBR16 Internal Boring Tool Holders S25S SVWBR16 SVWBR 16 Boring Bar CNC Lathe Cutter Machine SVWBR Carbide Inserts VBMT1604 VBMT160404

• S25S-SVWBR16 Information Overview

• Overview

The S25S-SVWBR16 Mechanical Lathe CNC Internal Boring Bar Tool Holder is engineered for precision and durability, making it an essential tool for CNC machining professionals. Constructed from high-quality alloy steel, this tool holder features a cutting edge angle of 72.5°, enabling optimal performance for internal boring and turning operations. Its screw-type adjustment mechanism ensures secure blade positioning, while compatibility with various carbide inserts provides versatility for different machining needs. Designed for stability and control, the S25S-SVWBR16 is your go-to solution for enhancing efficiency and accuracy in CNC machining tasks.

• Dimensions and Specifications of S25S-SVWBR16 Boring Bar Holder Lathe

• Features and Specifications

  • Model: S25S-SVWBR16
  • Package Includes: S25S-SVWBR16 Tool Holder and compatible Screws, and Wrenches
  • 72.5° cutting edge angle and 5° relief angle.
  • Material:  alloy steel
  • Type: S-Type (Screw-type)
  • Handle Diameter: 25mm
  • Total Length: 250mm
  • Cutting Blade Length: 16mm
  • Screw Size: M4*10
  • Wrench: T15
  • Compatible Blades: VBMT160404  VBMT160408 VBMT331 VBMT332

• 5-Point Description

1. Durable Alloy Steel Design: Crafted from high-grade alloy steel, the S25S-SVWBR16 tool holder is built to withstand the demands of rigorous machining environments, providing long-lasting performance and reliability.

2. Optimized Cutting Edge Angle: Featuring a precise 72.5° cutting edge angle, this tool holder is engineered for efficient internal boring and turning operations, ensuring clean and accurate cuts for superior workpiece finishes.

3. Screw-Type Adjustment Mechanism: The innovative S-type (screw-type) design with an M4*10 screw and T15 wrench allows for easy adjustments, ensuring secure blade positioning and consistent machining results.

4. Versatile Blade Compatibility: This tool holder accommodates various carbide inserts including VBMT160404, VBMT160408, VBMT331, and VBMT332, making it adaptable for a wide range of machining applications.

5. Ergonomic Dimensions: With a 25mm handle diameter, a total length of 250mm, and a 16mm cutting blade, the S25S-SVWBR16 offers excellent stability and control, ideal for precision internal boring tasks in CNC machine tools.
