• S25S-SVZBR11 Information Overview

• Overview

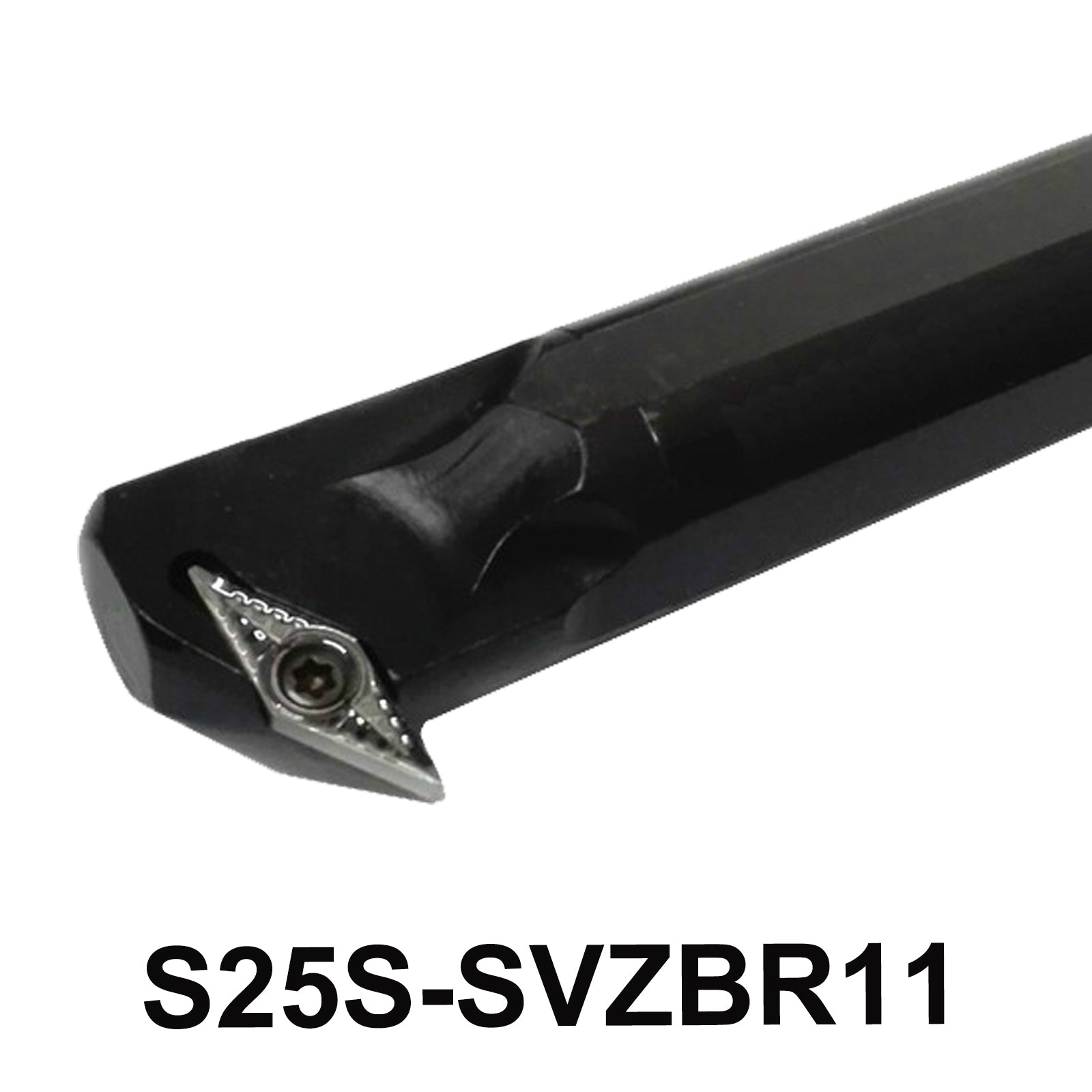

Introducing the S25S-SVZBR11 Mechanical Lathe CNC Internal Boring Bar Tool Holder, expertly engineered for precision in CNC machining. With a cutting edge angle of 93° and a 5° blade relief, this robust tool holder is crafted from high-quality alloy steel. Its design maximizes performance in internal turning applications, making it an essential addition to your CNC lathe toolkit.

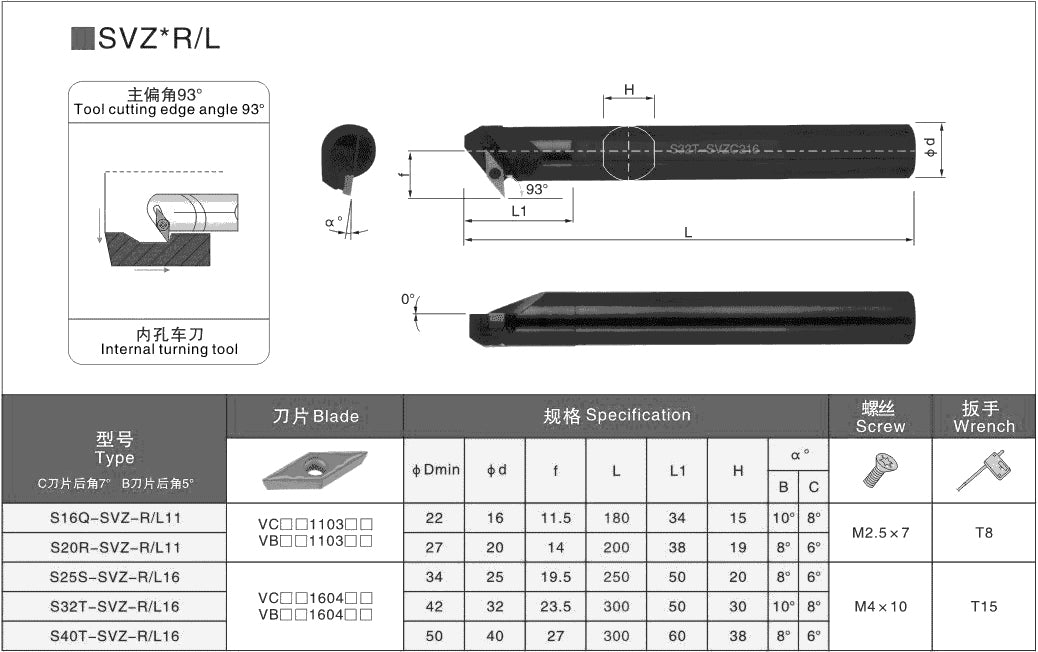

• Dimensions and Specifications of S25S-SVZBR11 Boring Bar Holder Lathe

• Features and Specifications

  • Model: S25S-SVZBR11
  • Package Includes: S25S-SVZBR11 Tool Holder and compatible Screws, and Wrenches
  • 93° cutting edge angle and 5° relief angle.
  • Material:  alloy steel
  • Type: S-Type (Screw-type)
  • Handle Diameter: 25mm
  • Total Length: 250mm
  • Cutting Blade Length: 11mm
  • Screw Size: M2.5*7
  • Wrench: T8
  • Compatible Blades: VBMT110302 VBMT110304 VBMT110308 VBMT220 VBMT221 VBMT222

• 5-Point Description

1. High Precision: Designed with a 93° cutting edge angle and 5° blade relief for enhanced cutting accuracy in intricate machining tasks.
2. Durable Construction: Made from premium alloy steel, providing exceptional strength and longevity under demanding operational conditions.
3. Versatile Application: Perfect for a wide range of internal turning operations in CNC machine tools, improving efficiency and performance.
4. User-Friendly Design: Features a 25mm handle diameter and a total length of 250mm for optimal handling and control during use.
5. Insert Compatibility: Compatible with various carbide inserts including VBMT110302, VBMT110304, and VBMT220, ensuring versatility for different machining needs.
