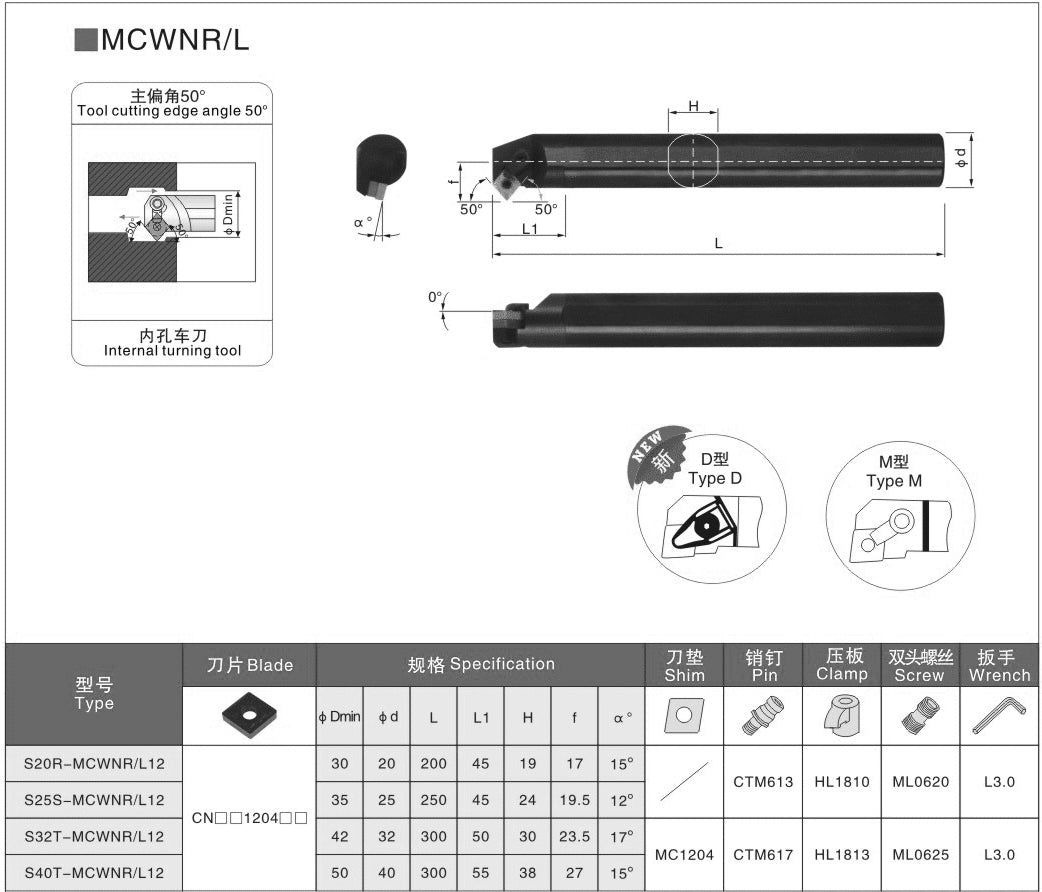

• Specifications and Dimensions of S32T-MCWNR12 CNC Lathe Tool Holder

• 50° Cutting Edge Angle

• Alloy Steel Construction

• Compatible with CNMG Inserts

Product Name: S32R-MCWNR12 Right Tool Holder

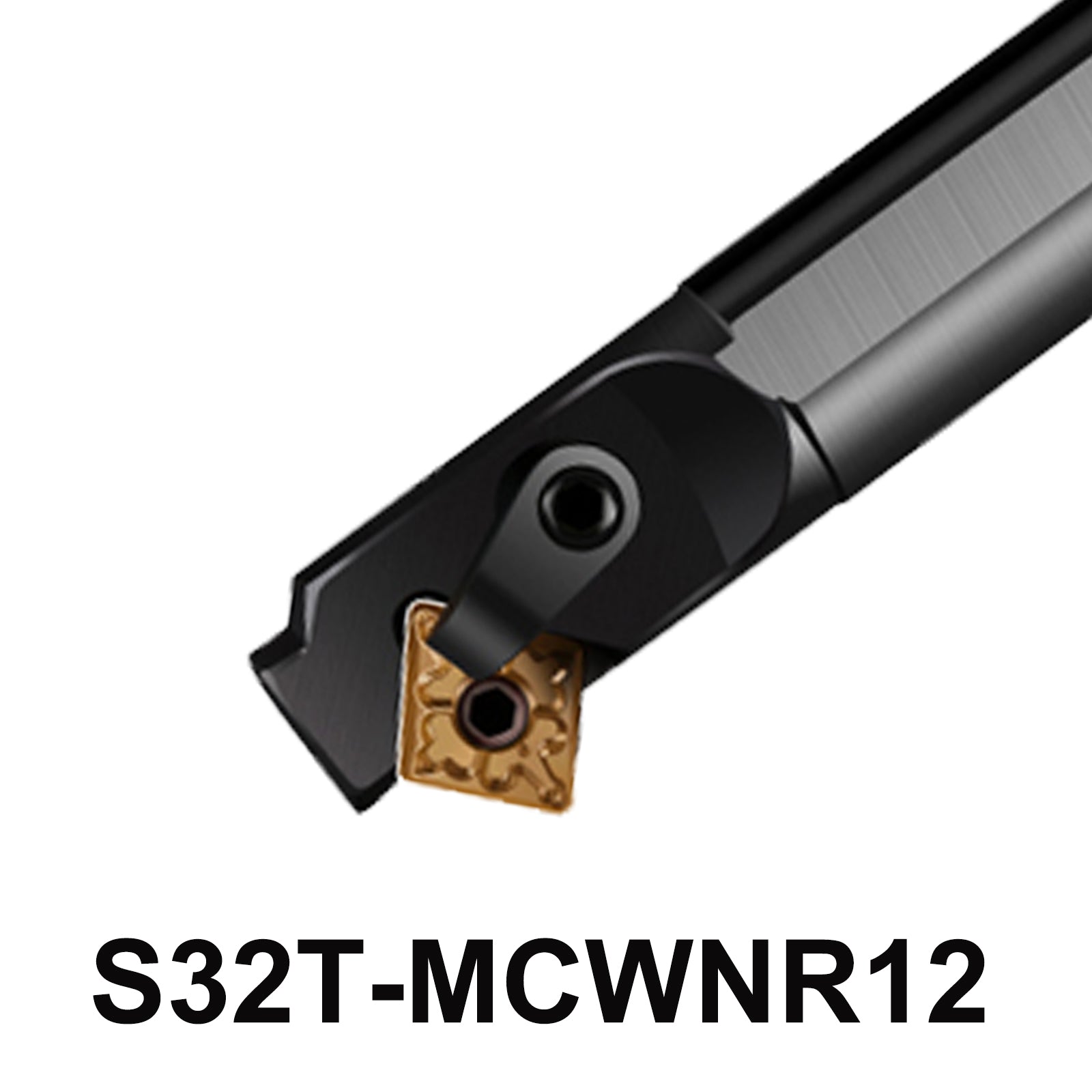

Overview:The S32R-MCWNR12 Small Boring Bar Right Tool Holder is designed for precise internal turning operations on CNC lathes. Made from high-quality alloy steel, it ensures durability and reliability in machining applications. The tool holder features a 50° cutting edge angle and a relief angle of 0°, optimizing chip control and tool life. It includes essential accessories such as the MC1204 Shim CTM617 pin, HL1813 clamp, ML0625 screw, and L3.0 wrench, facilitating easy installation and maintenance.

Features:

• Tool Cutting Edge Angle: 50°
• Rellef of angle of blade:0°
• Material: Alloy Steel
• Diameter of Handle: 32mm
• Total Length: 300mm
• Length of cutting blade:12mm
• Shim:MC1204
• Pin: CTM617
• Clamp: HL1813
• Screw: ML0625
• Wrench: L3.0
• Blade Compatibility: CNMG120404  CNMG120408  CNMG120412, CNMG120416  CNMG431  CNMG432  CNMG433  CNMG434

Applications:

• Ideal for use in CNC machine tools, CNC lathes, and machining centers.
• Suitable for various machining operations, providing stability and precision.

5-Point Description:

1. Durable Alloy Steel Construction: Provides robustness and longevity in machining environments.

2. Optimized Cutting Edge Angle: 50° cutting edge angle for precise internal turning operations.

3. Wide Insert Compatibility: Accommodates various CNMG inserts, offering flexibility for different machining tasks.

4. Comprehensive Kit: Includes MC1204 Shim CTM617 pin, HL1813 clamp, ML0625 screw, and L3.0 wrench for easy setup and maintenance.

5. Ideal for CNC Machining: Specifically designed for CNC lathes, ensuring high-performance machining results.
