S32T-MVXNR16 CNC Boring Bar Tool Holder, 32mm Diameter, Alloy Steel

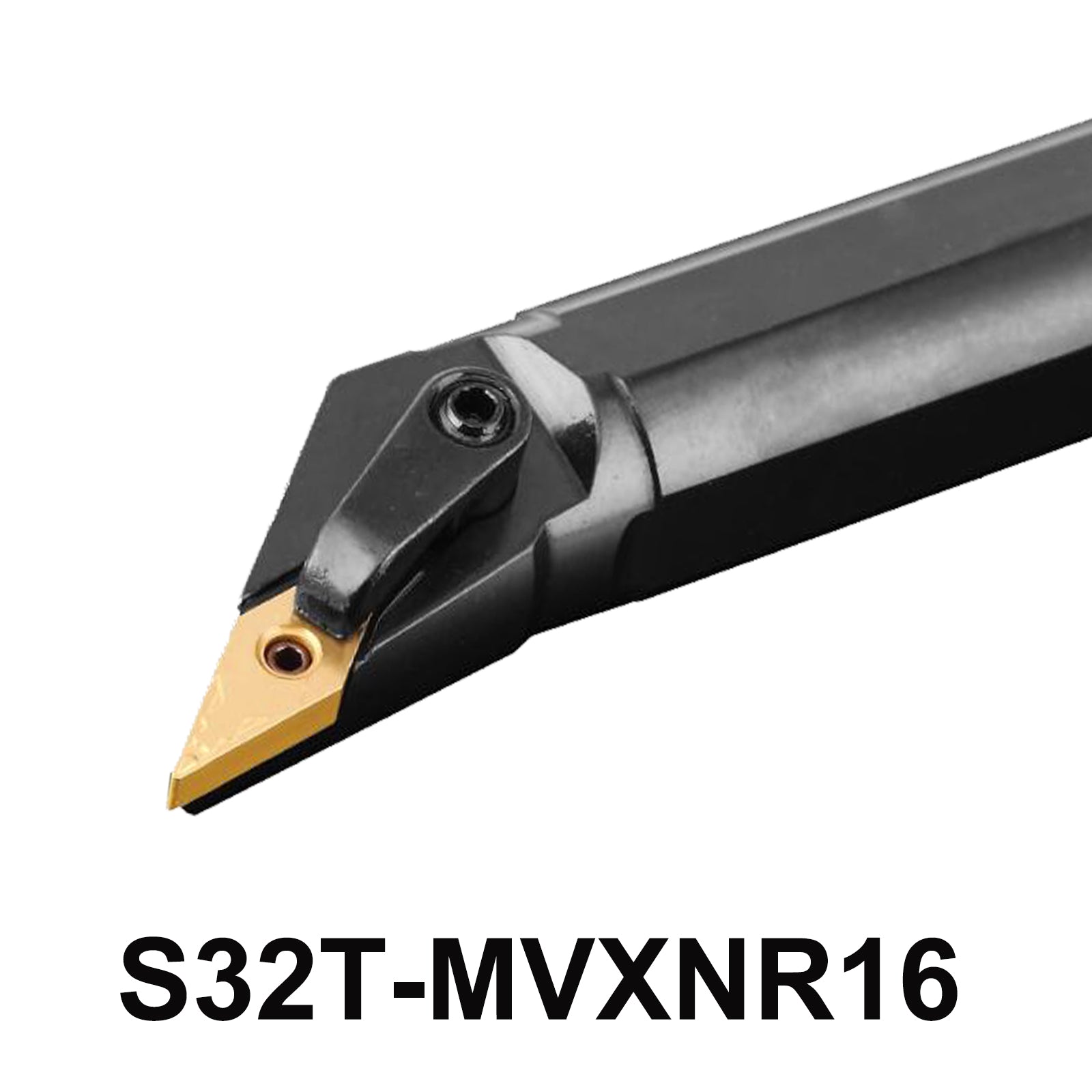

S32T-MVXNR16 CNC Boring Bar Tool Holder

Overview

Specifications | Features | Applications | Compatibility | Included Accessories

Overview:

The S32T-MVXNR16 CNC Boring Bar Tool Holder is designed for professional-grade CNC machining applications. It features a robust alloy steel construction with an M-type multi-lock system, ensuring stability during operations. With a 96° cutting edge angle and no relief angle on the blade, this tool holder is optimized for internal turning tasks.

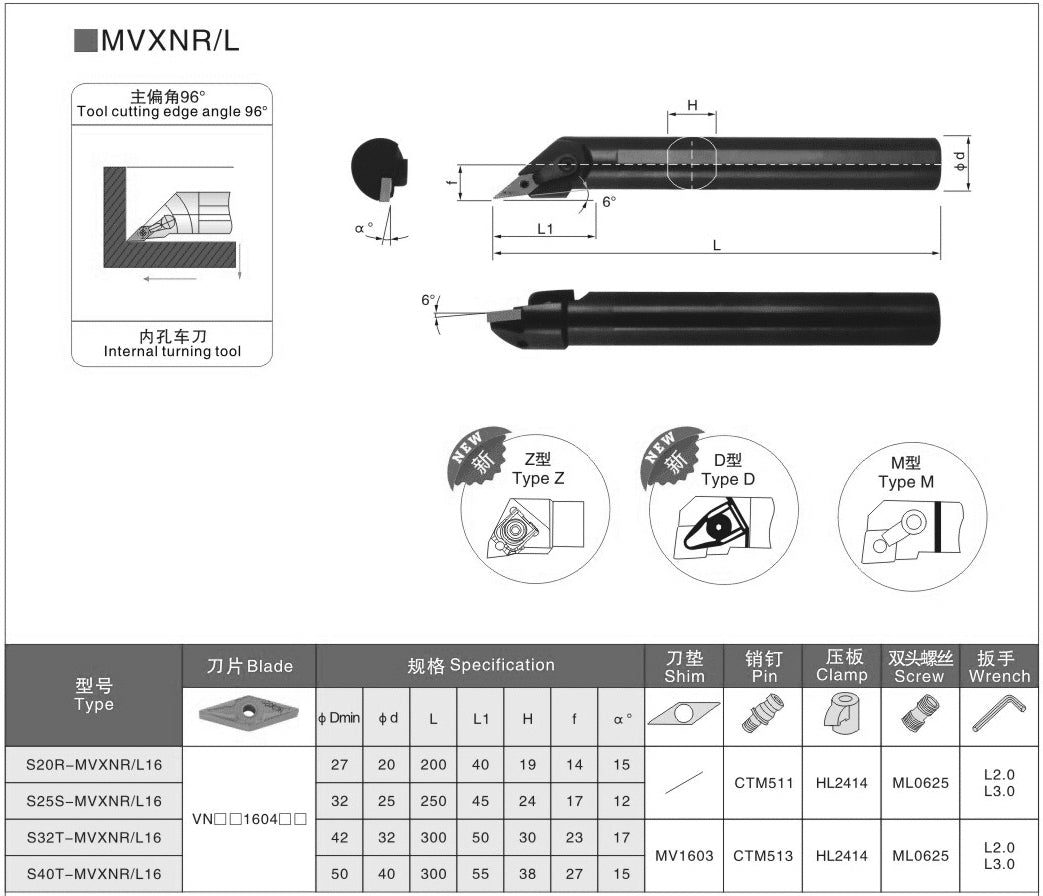

Detail Page:

• Model: S32T-MVXNR16
• Tool Holder Type: CNC Boring Bar
• Tool Cutting Edge Angle: 96°
• Material: Alloy Steel
• Handle Diameter: 32mm
• Total Length: 300mm
• Cutting Blade Length: 16mm
• Shim: MV1603
• Pin: CTM513
• Clamp: HL2414
• Screw: ML0625
• Wrench: L2.0, L3.0
• Blade Compatibility: VNMG160404, VNMG160408, VNMG160412, VNMG331, VNMG332, VNMG333

Application:

Ideal for CNC machine tools and lathes, the S32T-MVXNR16 is suitable for internal turning operations, providing precision and durability for demanding machining tasks.

Package Includes:

• S32T-MVXNR16 Tool Holder
• Compatible Clamps, Shims, Pins, Screws, and Wrenches

Advantages:

1. Sturdy Construction: Made from high-quality alloy steel for durability and reliability.
2. Optimized Design: Features a 96° cutting edge angle for effective internal turning.
3. Secure Fit: M-type multi-lock system ensures stable tool positioning.
4. Versatile Compatibility: Compatible with a range of VNMG carbide inserts for various machining needs.
5. Comprehensive Accessories: Includes CTM513 pin, HL2414 clamp, ML0625 screw, and L2.0 L3.0 wrench for convenient setup and maintenance.

5-Point Description:

1. Precision Machining: Designed for high-precision internal turning with a 96° cutting edge angle.
2. Durable Construction: Made from robust alloy steel for extended tool life and reliability.
3. Multi-Lock System: M-type system ensures secure clamping of VNMG carbide inserts, minimizing vibrations for stable machining.
4. Comprehensive Accessories: Includes CTM513 pin, HL2414 clamp, ML0625 screw, and L2.0/L3.0 wrench for complete operational capability.
5. Versatile Application: Suitable for CNC machine tools and lathes, ideal for a variety of machining tasks including boring, facing, and internal turning.
