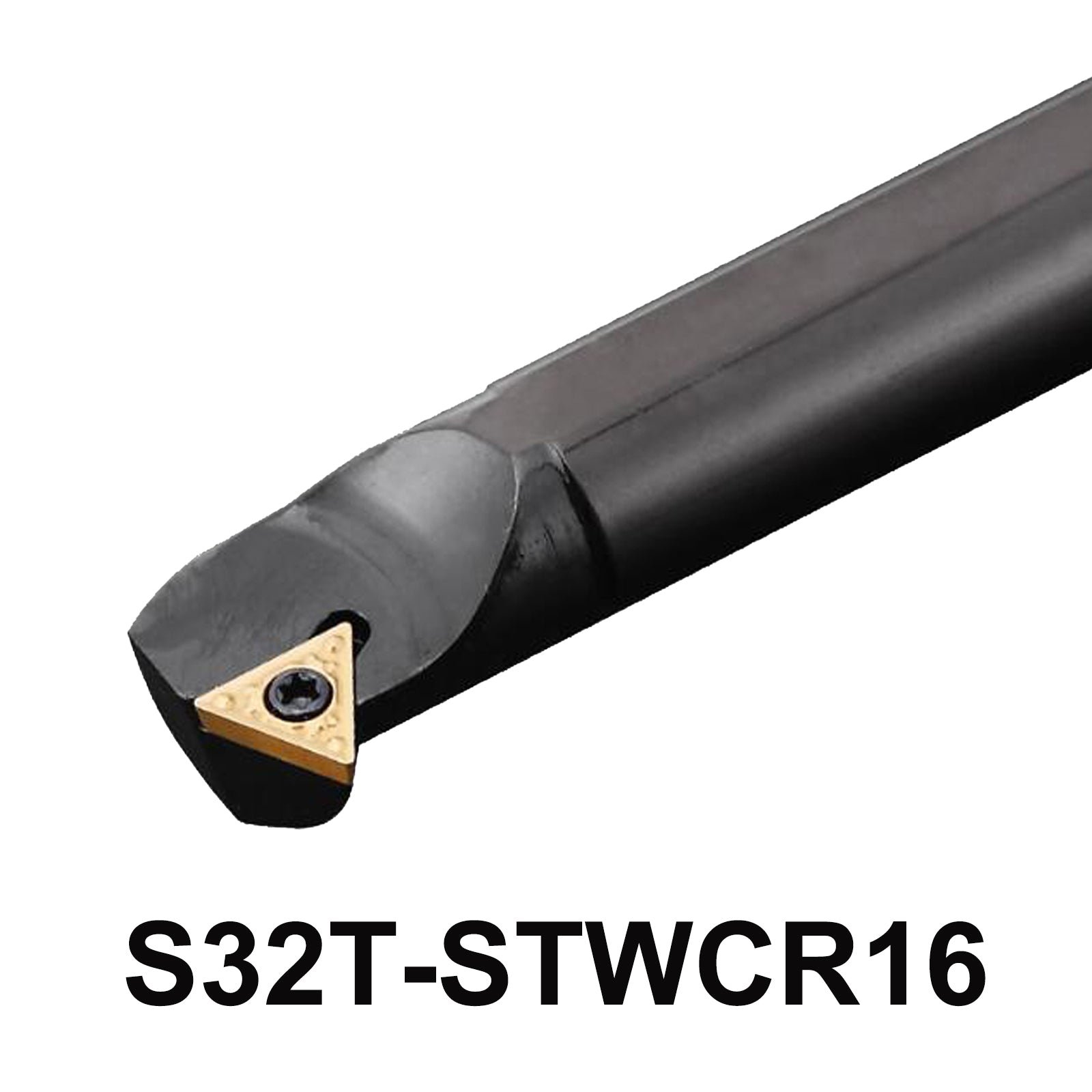

Overview

The S32T-STWCR16 CNC internal boring bar tool holder is specially designed for high-precision internal hole machining. Its cutting edge angle is 60° and the insert relief angle is 7°, ensuring excellent cutting performance. Made from sturdy alloy steel, the knife holder has a handle diameter of 32mm and an overall length of 300mm, providing stability and reach. It accommodates a range of TCMT16T3 blades  The tool holder is equipped with M4*10 screws and T15 wrench to ensure easy adjustment and reliable operation.

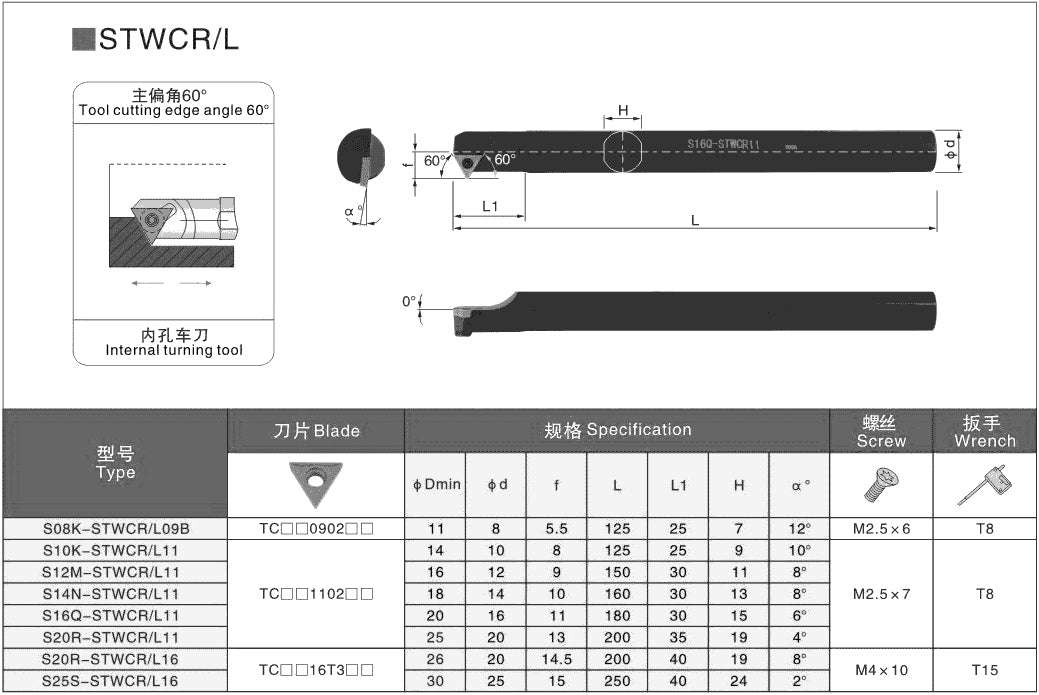

Features and Specifications

• Model:  S32T-STWCR16
• 95° cutting edge angle and 7° relief angle.
• Material:  alloy steel
• Type: S-Type (Screw-type)
• Handle Diameter: 32mm
• Total Length: 300mm
• Cutting Blade Length: 16mm
• Screw Size: M4*10
• Wrench: T15
• Compatible Blades: TCMT16T304,TCMT16T308,TCMT3(2.5)1,TCMT3(2.5)2

Package Includes:

• S32T-STWCR16  Tool Holder
• Compatible Screws, and Wrenches

Applications:

• CNC Internal Boring and Turning

• Suitable for Various TCMT Blade Types

• Ideal for Use in CNC Lathes and Boring Bar Setups

Advantages:

• Exceptional Precision: 60° cutting edge angle and 7° blade relief for smooth and accurate internal machining.
• Durable Build: Alloy steel construction provides reliability and longevity in demanding environments.
• Extended Reach: 32mm handle diameter and 300mm length for enhanced control and access.

BEYOND S32T-STWCR16  Internal Turning Tools Holder S32T STWCR16 STWCR 16 Boring Bar CNC Lathe Cutter Machine Carbide Inserts TCMT16T3 TCMT16T304

• 60° cutting edge angle precision machining

• Durable alloy steel construction enhances performance

• Handle diameter 32mm, length 300mm for greater reach

• 7° blade relief angle for optimal cutting efficiency

• Multi-function blade compatibility: TCMT16T304, TCMT16T308, TCMT3(2.5)1, TCMT3(2.5)2

• Easy adjustment using M4*10 screws and T15

5-Point Description:

• High Precision: 60° cutting edge angle and 7° insert clearance ensure precise and efficient internal boring.

• Study Construction: Alloy steel material guarantees durability and long-lasting performance.

• Reach: 32mm handle diameter and 300mm length provide excellent stability and maneuverability.

• Versatile blade options: Compatible with TCMT16T304, TCMT16T308, TCMT3(2.5)1 and TCMT3(2.5)2 blades.

• Easy Maintenance: Equipped with M4*10 screws and T15 wrench for easy adjustment and maintenance.
