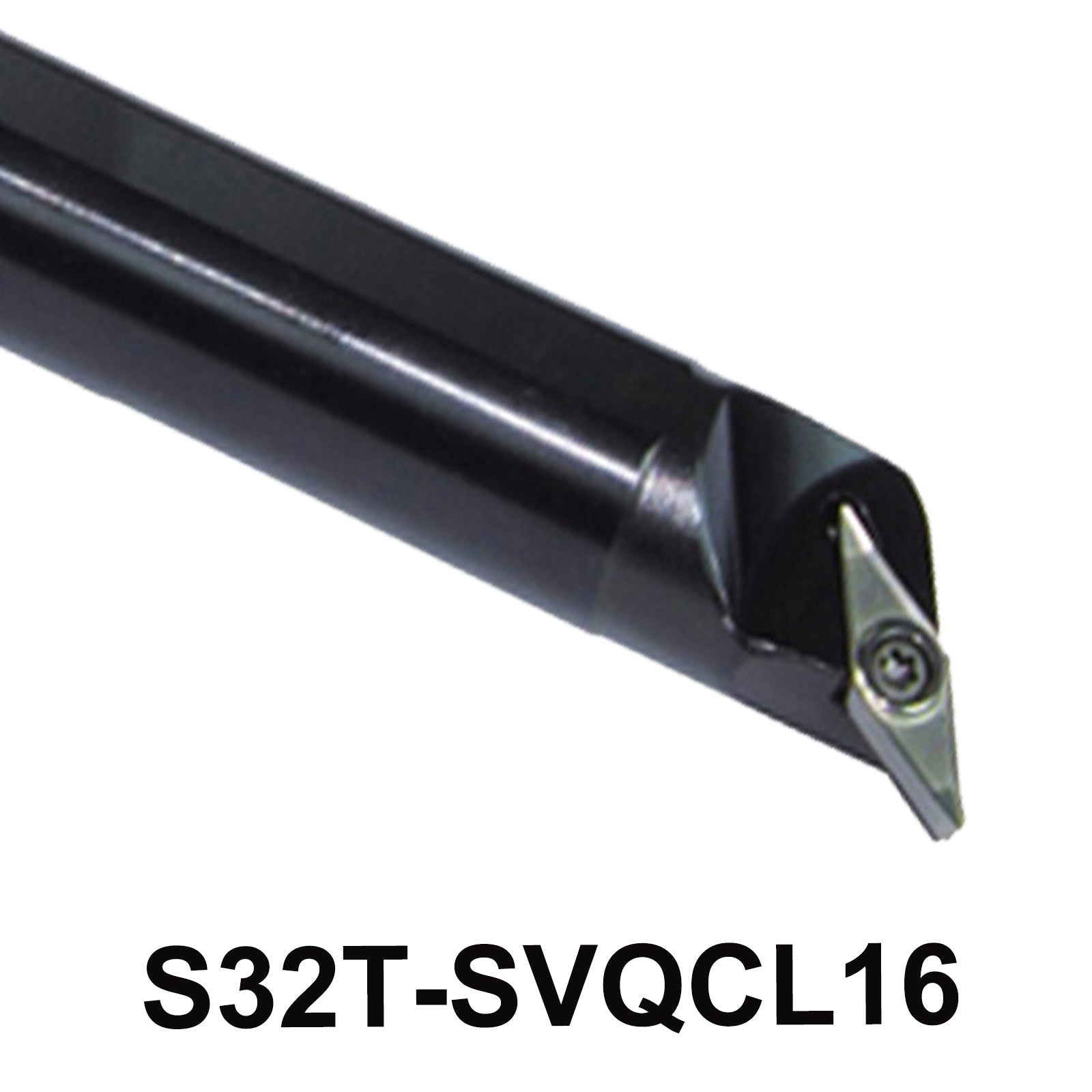

BEYOND S32T-SVQCL16 Internal Turning Tools Holder S32T SVQCL16 SVQCL 16 Boring Bar For Engine SVQCL Carbide Inserts VCMT1604 VCMT160404

• S32T-SVQCL16 Information Overview

• Overview

Introducing the S32T-SVQCL16 CNC Internal Boring Bar Tool Holder, expertly crafted to meet the needs of precision machining. With a cutting edge angle of 117.5° and a relief angle of 7°, this tool holder is designed for optimal performance in internal turning applications. Made from high-quality alloy steel, it ensures durability and strength, making it ideal for demanding environments. Its 32mm handle diameter and total length of 300mm provide excellent control, while the 16mm cutting blade length allows for versatile use. This tool holder is compatible with VBMT160404, VBMT160408, VBMT331, and VBMT332 carbide inserts

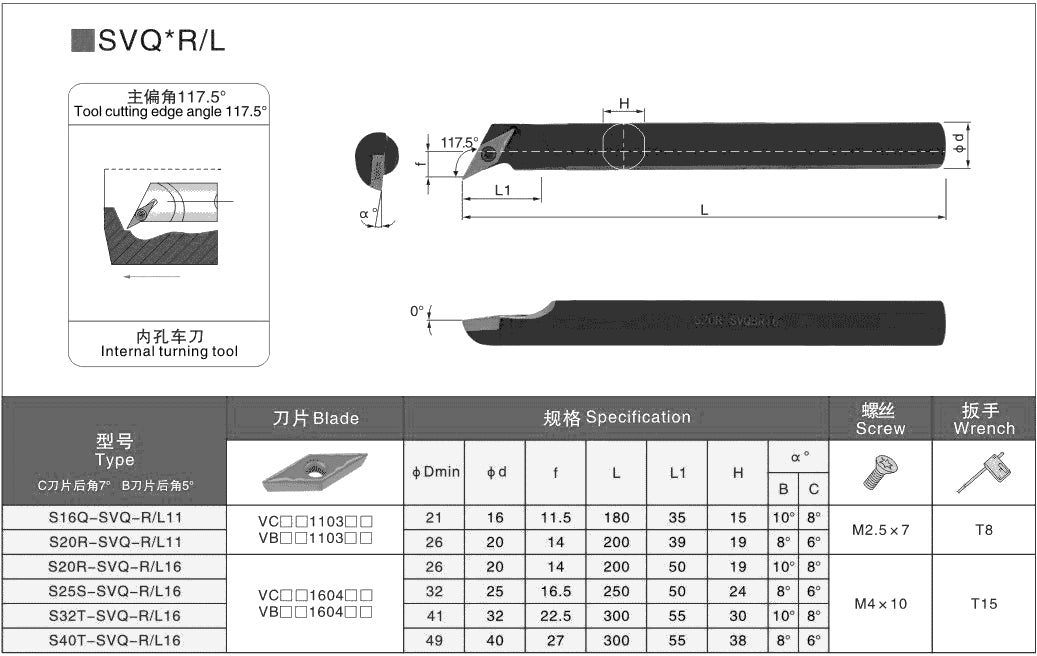

• Dimensions and Specifications of S32T-SVQCL16 Carbide Boring Bars

• Features and Specifications

  • Model: S32T-SVQCL16
  • Package Includes: S32T-SVQCL16 Tool Holder and compatible Screws, and Wrenches
  • 117.5° cutting edge angle and 7° relief angle.
  • Material:  alloy steel
  • Type: S-Type (Screw-type)
  • Handle Diameter: 32mm
  • Total Length: 300mm
  • Cutting Blade Length: 16mm
  • Screw Size: M4*10
  • Wrench: T15
  • Compatible Blades: VBMT160404  VBMT160408 VBMT331 VBMT332

• 5-Point Description

1. Advanced Cutting Geometry: The 117.5° cutting edge angle and 7° relief angle enhance chip removal and reduce tool wear, providing a cleaner finish.
2. Robust Alloy Steel Construction: Built from premium alloy steel for exceptional strength and longevity, suitable for high-performance machining tasks.
3. Ergonomic Handle Design: The 32mm diameter handle ensures a comfortable grip, allowing for precise control during operation.
4. Versatile Compatibility: Compatible with various carbide inserts (VBMT160404, VBMT160408, VBMT331, VBMT332), making it adaptable for different applications.
5. Convenient Adjustment Features: Equipped with an M4*10 screw and T15 wrench for easy setup and adjustments, streamlining your workflow in the shop.
