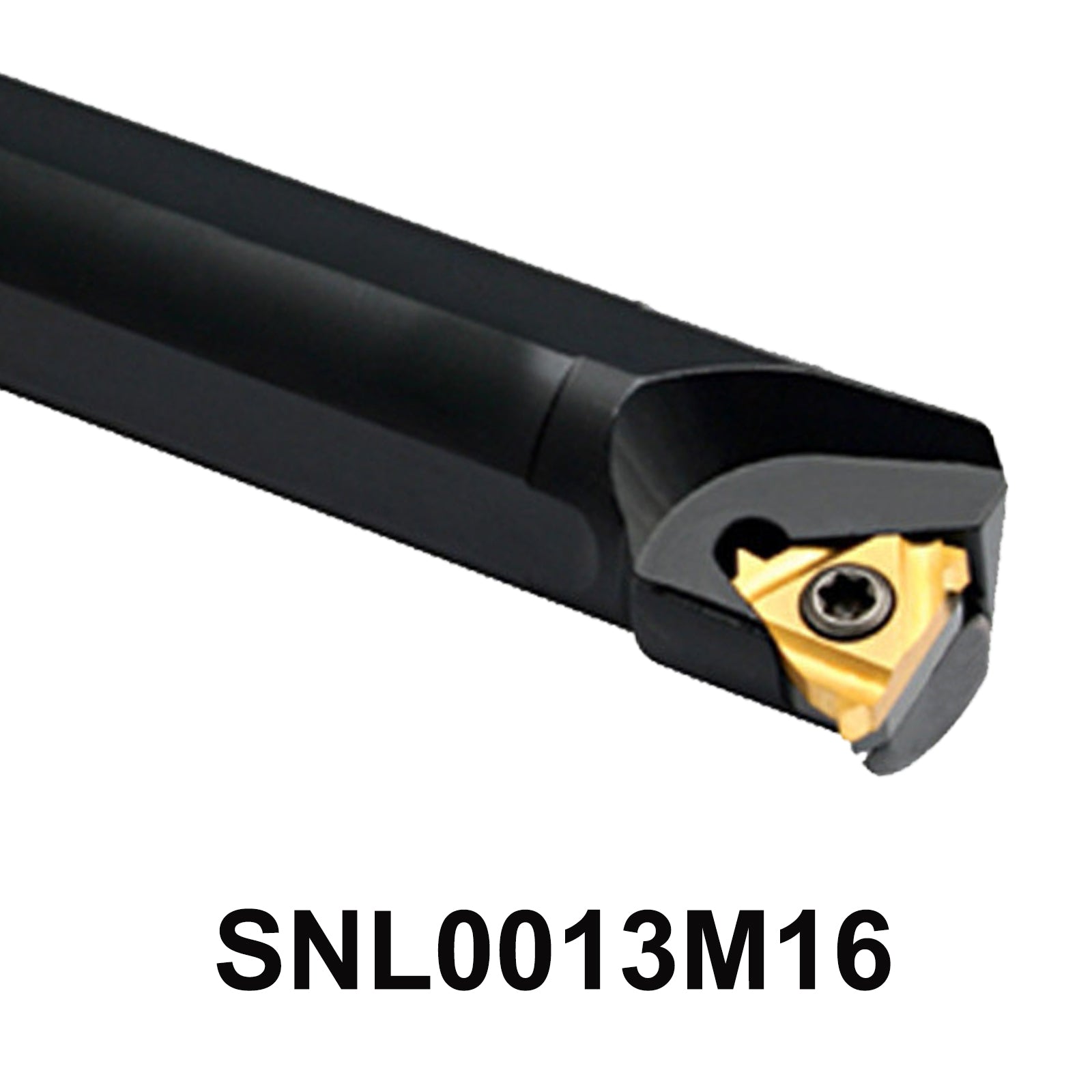

SNL0013M16 CNC Internal Threading Tool – Left Cut, 16NL Inserts, M3 Screws, T15 Wrench, Tool Holder
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Introducing the SNL0013M16 Internal Threading Turning Tools, expertly crafted for precision machining and reliability in internal threading applications
This high-quality CNC lathe cutter holder features a robust design with a minimum diameter of 17mm and a cutting length of 150mm, compatible with 16NL inserts ,allowing for accurate and efficient internal cuttings
Product parameters:
-
Tool Holder Model: SNL0013M16
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Model of Pressing plate : Screw compession type
- Thread form : Internal thread
- Cutting direction : Left cut
- Height of tool nose : 00mm
- ΦDmin :17mm
- Φd :13mm
- Width of body of cutting tool : 13mm
- Length of cutting tool : 150mm
- Size of blade :
- 1.Side length of traingle : 16mm
- 2.Incircle : 9.525mm
-
Applicable blade : 16NL
- Screw : M3.5*10
- Wrench : T15
- Lateral screw : M3*8C
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SNL0013M16 Internal Threading Turning Tools
1 * "T" Type wrench
1 * M3.5*10 Type Screw
1 * M3*8C Type Lateral Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SNL0013M16 Internal Threading Turning Tools SNL0013M16 SNL0013 SNL0013 M16 CNC Cutter Lathe Shank Carbide Insert
-
High-Quality CNC Lathe Cutter Holder with Adjustable Blade for Right-Cut Internal Threads
-
Efficient Thread Cutting Solution with Interchangeable Inserts and Complete Tool Kit
5-Point Description
-
Perfect for Internal Threading: The SNL0013M16 is specifically designed for internal threading applications on CNC lathes. Its high precision and left-cut design make it ideal for creating accurate internal threads with a smooth finish.
-
Durable and Robust Tool Holder: This internal threading tool features a robust 13mm wide body and a 150mm length, ensuring the tool holder’s durability and stability during machining. The tool holder's design supports reliable performance for long-term use.
-
Precise Blade Geometry: Equipped with a 16mm triangle blade, this tool features an incircle of 9.525mm, providing a precise cutting edge for clean and consistent threading. This geometry ensures excellent control over the cut and improves threading accuracy.
-
Comprehensive Tool Kit: The SNL0013M16 comes with everything you need to get started immediately, including the tool holder, M3.5*10 screws, T15 wrench, and M3*8C lateral screws. The complete package ensures ease of setup and convenience.
-
Compatible with 16NL Inserts: This tool is designed for use with 16NL inserts, offering flexibility and efficiency across a wide range of materials. The high-quality inserts allow for sharp, precise threading cuts, optimizing both performance and tool life.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
