• Elevate Your CNC Machining with the SSBCL2525M09 Tool Holder

• Overview

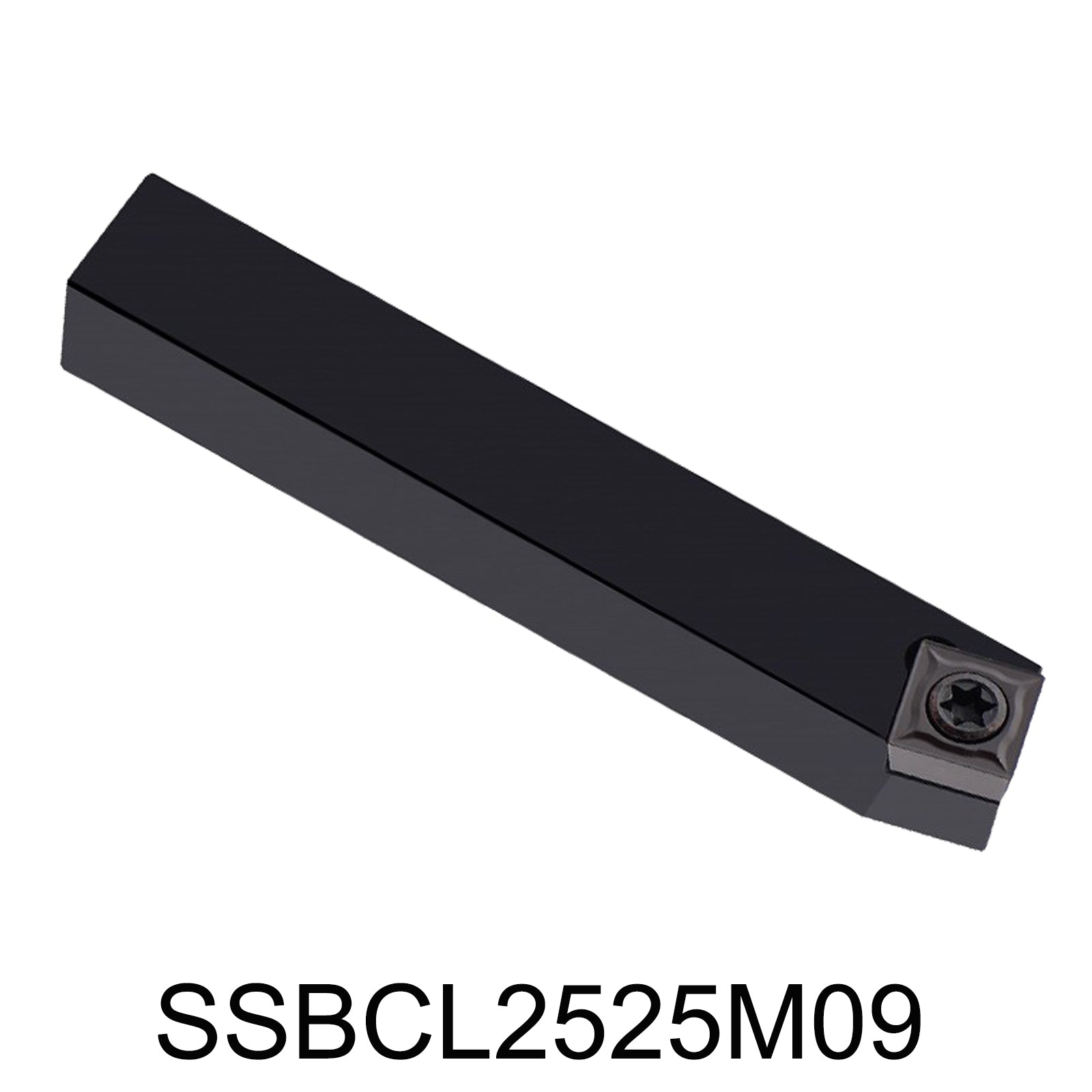

Introducing the SSBCL2525M09 External Tool Holder, engineered for precision and performance in CNC machining applications. With a cutting edge angle of 75° and a relief angle of 7°, this tool holder ensures efficient material removal and exceptional surface finish quality. The robust S-type screw clamping system guarantees secure tool retention, minimizing vibration and enhancing stability during operation. Designed for compatibility with a range of SCMT blades, the SSBCL2525M09 is an essential component for CNC lathes and machining centers, making it the perfect choice for both professional and industrial settings.

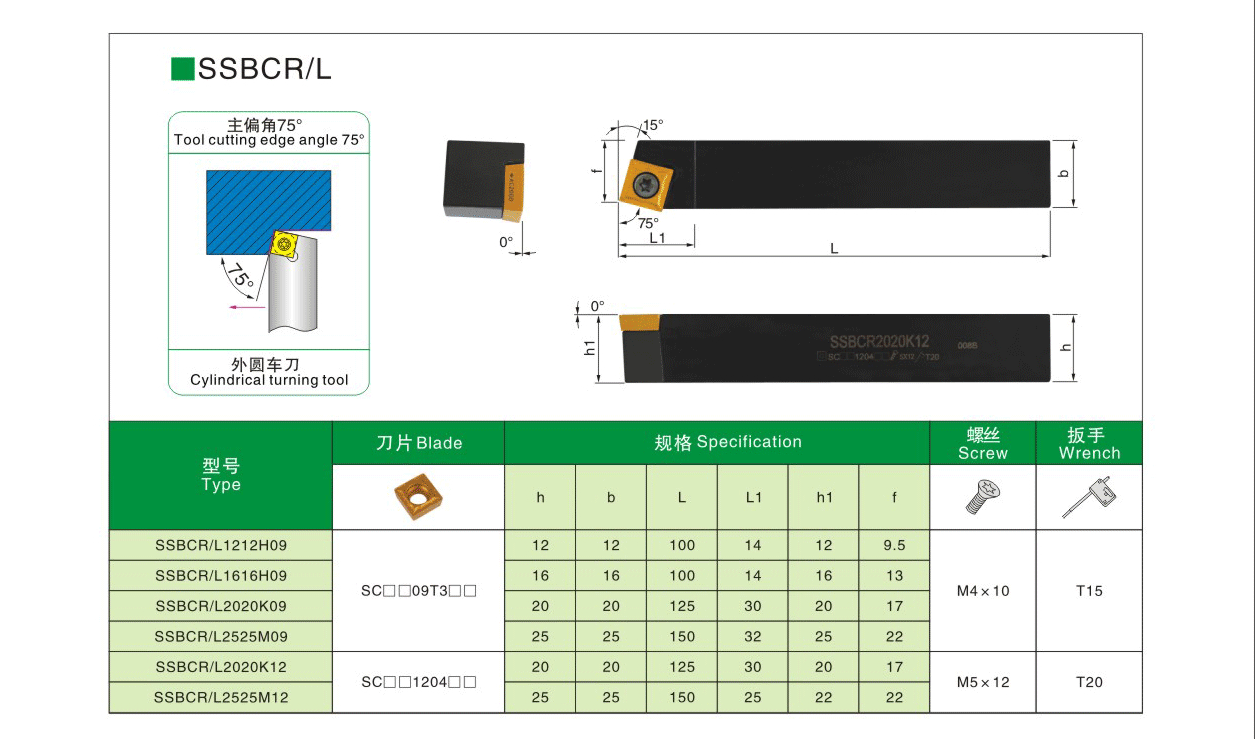

• Features and Specifications

  • Model:SSBCL2525M09
  • Package Includes: SSBCL2525M09  Cylindrical Turning Tool and compatible  Screws, and Wrenches
  • 75° Tool Cutting Edge angle and 7° relief angle.
  • Type: S-Type (Screw Clamping System)
  • Shank width: 25mm
  • Shank length: 25mm
  • Total Length: 150mm
  • Screw: M4*10
  • Wrench: T15
  • Compatible Blades: SCMT09T302 SCMT09T304 SCMT09T308 SCMT3(2.5)0 SCMT3(2.5)1 SCMT3(2.5)2

• Key Features of the SSBCL2525M09 External Tool Holder

• 5-Point Description

1. 1. Superior Cutting Edge Angle: The SSBCL2525M09 features a 75° cutting edge angle, specifically designed to optimize chip removal and improve cutting efficiency, resulting in superior surface finishes.

   2. Reliable S-Type Screw Clamping System: With its robust S-type screw clamping mechanism, this tool holder provides exceptional tool retention, significantly reducing vibrations and ensuring stable performance even under demanding conditions.

   3. Wide Compatibility with SCMT Blades: This tool holder accommodates a variety of SCMT blades, including SCMT09T302, SCMT09T304, and SCMT09T308, offering versatility and adaptability for various machining tasks.

   4. Durable and Compact Design: The SSBCL2525M09 has a shank width and length of 25mm, and a total length of 150mm, combining durability with a compact design, making it ideal for tight machining spaces.

   5. Easy Setup and Installation: Equipped with an M4*10 screw and a T15 wrench, the SSBCL2525M09 allows for quick and easy installation, helping you get back to machining with minimal downtime.
