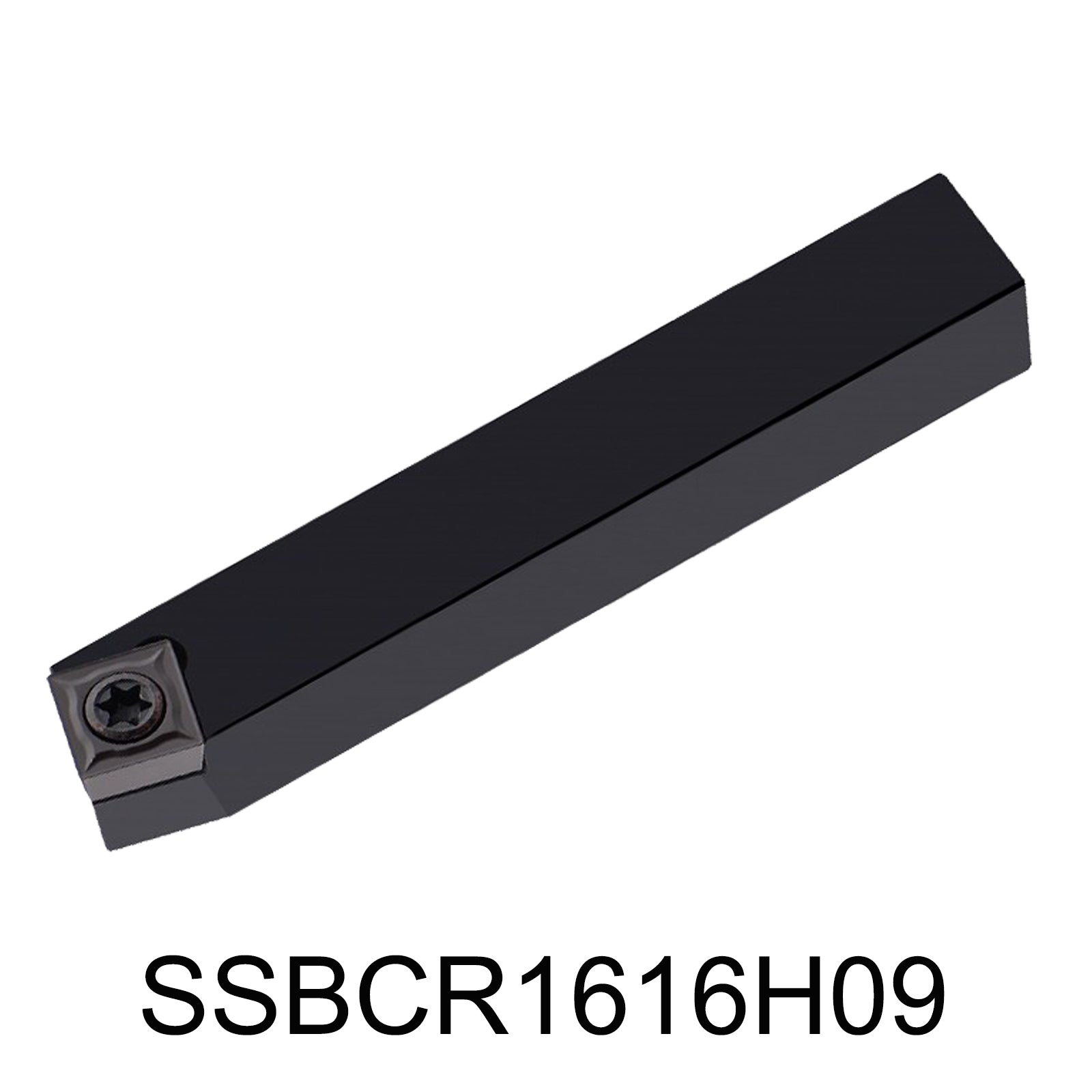

• SSBCR1616H09 External Tool Holder: Precision Engineering for CNC Machining


• Overview

The SSBCR1616H09 External Tool Holder is meticulously designed for precision machining in CNC machine tools, lathes, and machining centers. Featuring a cutting edge angle of 75° and a blade relief angle of 7°, this external cylindrical tool holder ensures exceptional cutting performance and versatility. The robust S-type screw clamping system guarantees secure blade retention, making it ideal for a wide range of applications. Engineered for efficiency, the SSBCR1616H09 is compatible with various SCMT blades, providing users with the flexibility to tackle diverse machining tasks with confidence.

• Features and Specifications

  • Model:SSBCR1616H09
  • Package Includes: SSBCR1616H09  Cylindrical Turning Tool and compatible  Screws, and Wrenches
  • 75° Tool Cutting Edge angle and 7° relief angle.
  • Type: S-Type (Screw Clamping System)
  • Shank width: 16mm
  • Shank length: 16mm
  • Total Length: 100mm
  • Screw: M4*10
  • Wrench: T15
  • Compatible Blades: SCMT09T302 SCMT09T304 SCMT09T308 SCMT3(2.5)0 SCMT3(2.5)1 SCMT3(2.5)2

• Maximize Your Machining Efficiency with the SSBCR1616H09 Tool Holder


• 5-Point Description

1. 1. Superior Cutting Geometry: The SSBCR1616H09 features a cutting edge angle of 75°, optimizing cutting efficiency and enhancing surface finishes for a variety of materials.

   2. Secure Blade Retention: Equipped with a reliable S-type screw clamping system, this tool holder ensures that blades remain firmly in place during operation, minimizing the risk of tool slippage.

   3. Compact and Functional Design: With a shank width and length of 16mm and a total length of 100mm, the tool holder is compact yet powerful, allowing for easy handling and effective machining in confined spaces.

   4. Compatible with Multiple Blade Options: Designed for use with SCMT09T302, SCMT09T304, SCMT09T308, and SCMT3(2.5) series blades, the SSBCR1616H09 provides users with the flexibility to choose the best cutting tools for their specific applications.

   5. Complete Tooling Kit: The package includes an M4*10 screw and a T15 wrench, ensuring you have all necessary components for a seamless setup and immediate use in your machining operations.
