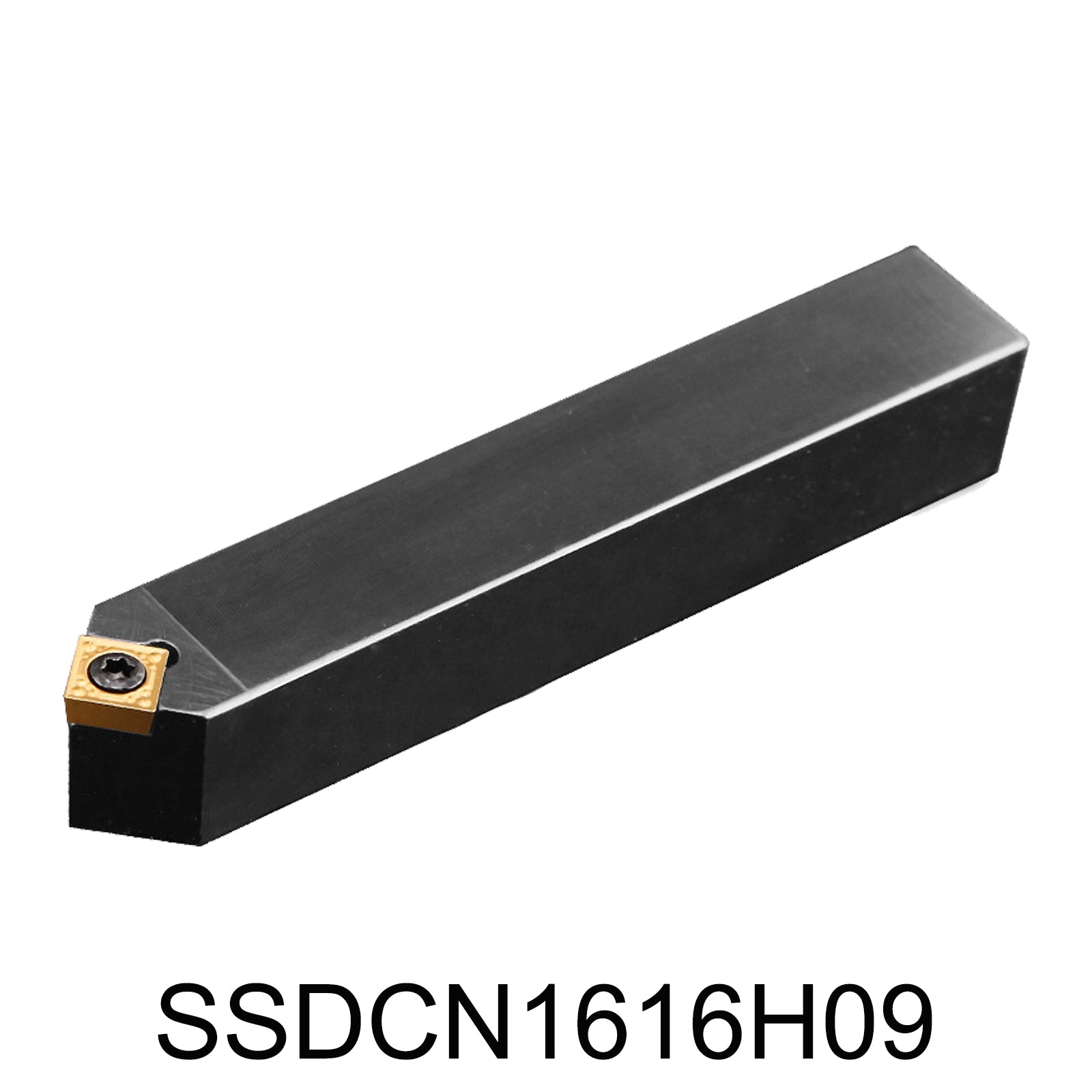

BEYOND SSDCN1616H09 SSDCN 1616H09 1010 SSDCN External Turning Tools Holder SSDCN1616H09 CNC Lathe Cutting Shank Carbide Inserts SCMT 09T3 SCMT09T3

• Maximize Your CNC Machining Efficiency with the SSDCN1616H09 Tool Holder

• Overview

Introducing the SSDCN1616H09 External Tool Holder, a perfect blend of precision and reliability designed specifically for CNC machining applications. With a cutting edge angle of 45° and a blade relief angle of 7°, this tool holder enhances cutting performance while ensuring a smooth finish. The S-type screw clamping system guarantees secure tool retention, minimizing vibrations and ensuring stability during machining processes. This versatile tool holder is compatible with a variety of SCMT blades, making it an essential addition to CNC lathes and machining centers for professionals aiming for high-quality results.

• Features and Specifications

  • Model:SSDCN1616H09
  • Package Includes: SSDCN1616H09  Cylindrical Turning Tool and compatible  Screws, and Wrenches
  • 45° Tool Cutting Edge angle and 7° relief angle.
  • Type: S-Type (Screw Clamping System)
  • Shank width: 16mm
  • Shank length: 16mm
  • Total Length: 100mm
  • Screw: M4*10
  • Wrench: T15
  • Compatible Blades: SCMT120404 SCMT120408 SCMT120412 SCMT431 SCMT432 SCMT433

• Features and Benefits of the SSDCN1616H09 External Tool Holder

• 5-Point Description

1. 1. Optimized Cutting Edge Angle: The SSDCN1616H09 features a 45° cutting edge angle, allowing for efficient chip removal and improved cutting dynamics, ensuring high-quality finishes on machined parts.

   2. Secure S-Type Screw Clamping System: Designed with a robust S-type screw clamping mechanism, this tool holder provides exceptional stability and minimizes tool vibrations, enhancing accuracy during operation.

   3. Compatible with Multiple SCMT Blades: This tool holder supports a range of SCMT blades, including SCMT09T302, SCMT09T304, and SCMT09T308, offering versatility for various machining applications and material types.

   4. Compact and Durable Design: With a shank width and length of 16mm, and a total length of 100mm, the SSDCN1616H09 combines durability with a compact footprint, making it suitable for tight machining environments.

   5. Quick and Easy Installation: Equipped with an M4*10 screw and T15 wrench, the SSDCN1616H09 allows for hassle-free installation, ensuring minimal downtime and a quick setup for your machining operations.
