Precision and Performance: The SSKCL2020K09 Tool Holder
-
Overview

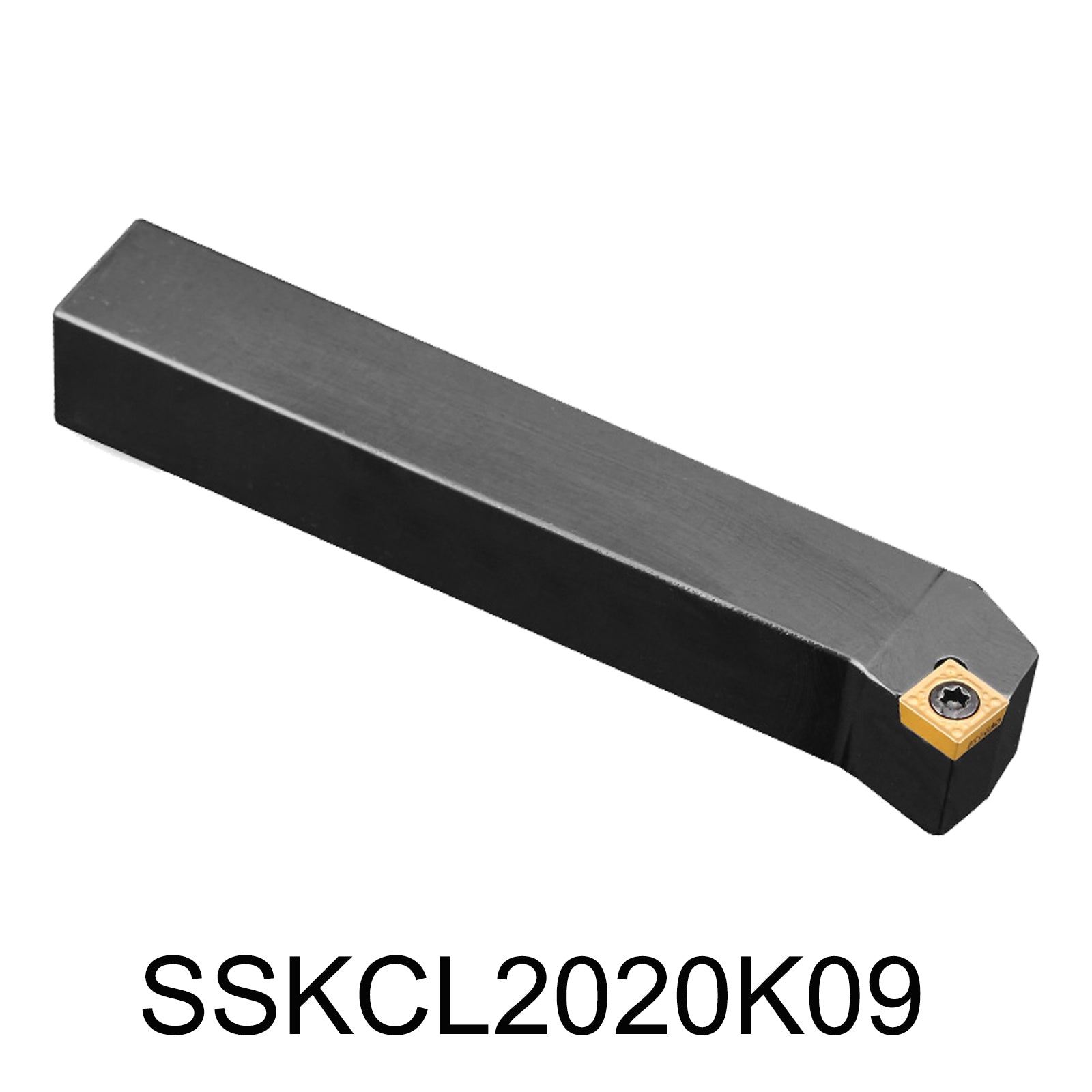

Introducing the SSKCL2020K09 External Tool Holder, engineered for exceptional precision and efficiency in CNC machining. With a cutting edge angle of 75° and a relief angle of 7°, this tool holder maximizes performance and minimizes wear on cutting edges. Its robust S-type screw clamping system provides secure blade retention, reducing vibration for improved accuracy. Measuring 20mm in both shank width and length, and a total length of 125mm, the SSKCL2020K09 is built to handle a variety of machining tasks with ease. This tool holder is compatible with a range of SCMT blades, making it a versatile addition to any machining setup. Available soon on our independent website!
-

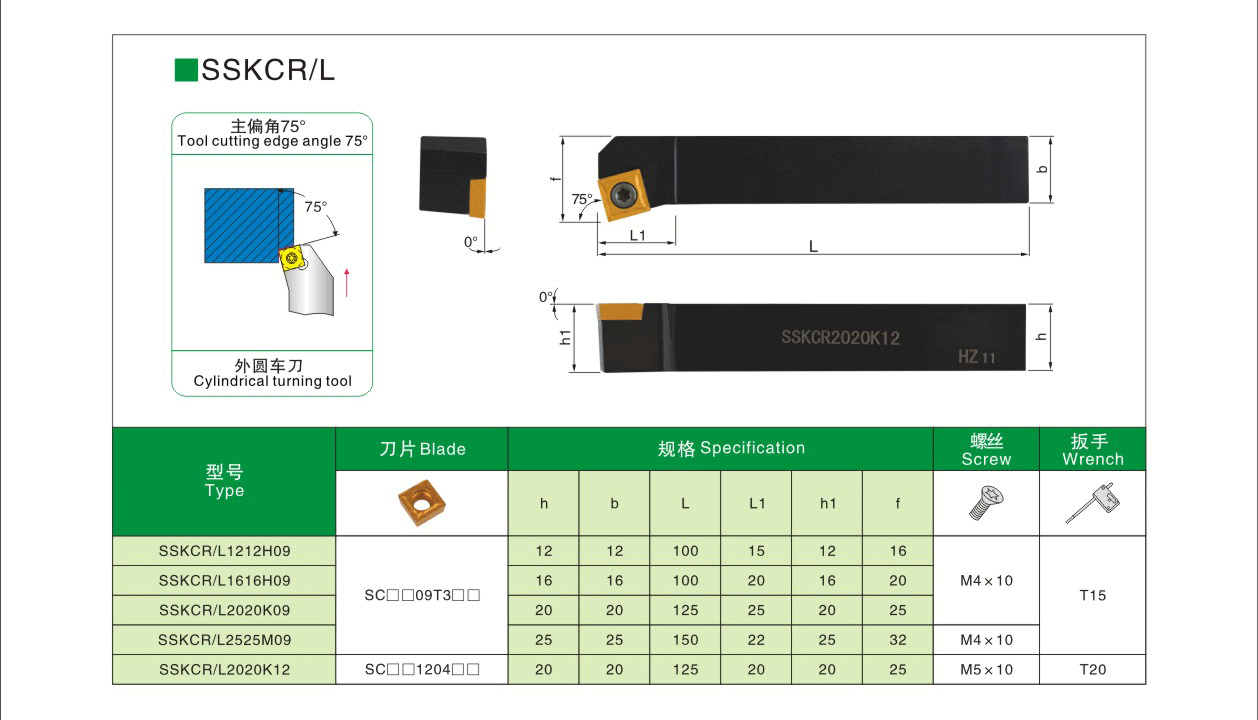

Features and Specifications
- Model:SSKCL2020K09
- Package Includes: SSKCL2020K09 Cylindrical Turning Tool and compatible Screws, and Wrenches
- 75° Tool Cutting Edge angle and 7° relief angle.
- Type: S-Type (Screw Clamping System)
- Shank width: 20mm
- Shank length: 20mm
- Total Length: 125mm
- Screw: M4*10
- Wrench: T15
- Compatible Blades: SCMT09T302 SCMT09T304 SCMT09T308 SCMT3(2.5)0 SCMT3(2.5)1 SCMT3(2.5)2
-
Key Features Designed for CNC Excellence
-
5-Point Description
-
-
Optimal Cutting Angle: The SSKCL2020K09 features a 75° tool cutting edge angle, enhancing cutting efficiency and ensuring effective chip removal for superior machining results.
-
Secure S-Type Screw Clamping: This external tool holder utilizes a reliable S-type screw clamping system that firmly holds the blade in place, minimizing tool vibration and maximizing precision during operations.
-
Versatile Dimensions: With a shank width and length of 20mm and a total length of 125mm, this tool holder is perfectly sized for various CNC machining applications, ensuring compatibility with different setups.
-
Wide Blade Compatibility: The SSKCL2020K09 is compatible with multiple SCMT blade types, including SCMT09T302 SCMT09T304 SCMT09T308 SCMT3(2.5)0 SCMT3(2.5)1 SCMT3(2.5)2, allowing for flexibility in tool selection based on machining needs.
-
Easy Installation and Use: Each tool holder comes equipped with an M4*10 screw and T15 wrench for straightforward installation, enabling quick setup so you can get back to machining without delay.
-
