BEYOND SSSCR1616H09 SSSCR 1616H09 1616 SSSCR External Turning Tools Holder SSSCR1616H09 CNC Lathe Cutting Shank Carbide Inserts SCMT 09T3 SCMT09T3

• Maximize Your Machining Efficiency with the SSCR1616H09 Tool Holder

• Overview

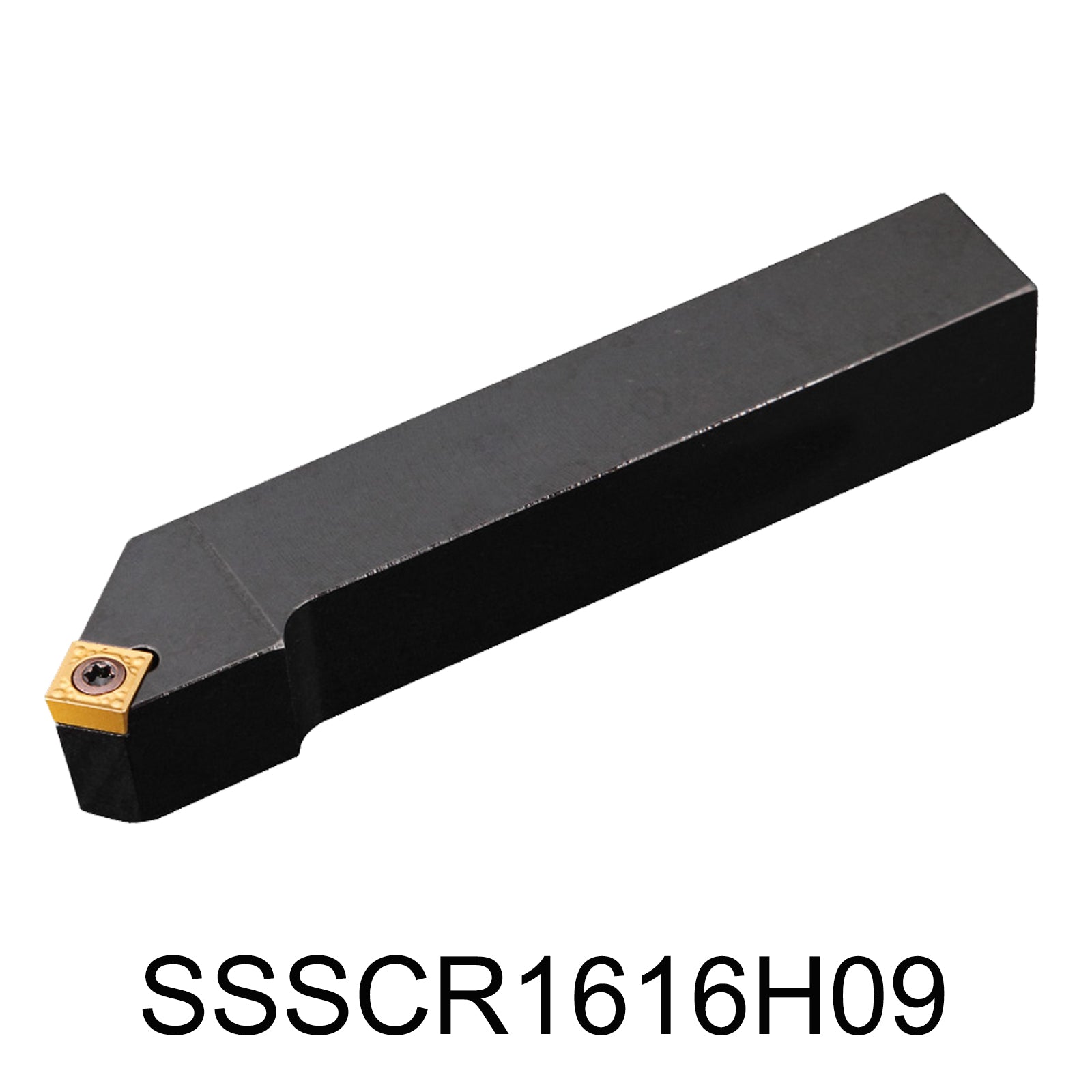

Introducing the SSSCR1616H09 External Tool Holder, engineered for precision and performance in CNC machining applications. With a cutting edge angle of 45° and a relief angle of 7°, this tool holder ensures optimal cutting efficiency and longevity of the blade. The external cylindrical design features an S-type screw clamping system, providing a secure grip on compatible blades. Its robust construction and versatile dimensions make it ideal for use in CNC lathes and machining centers, enhancing productivity and reducing downtime. Upgrade your machining toolkit with the SSSCR1616H09 for reliable and precise results.

• Features and Specifications

  • Model:SSSCR1616H09
  • Package Includes: SSSCR1616H09 Cylindrical Turning Tool and compatible  Screws, and Wrenches
  • 45° Tool Cutting Edge angle and 7° relief angle.
  • Type: S-Type (Screw Clamping System)
  • Shank width: 16mm
  • Shank length: 16mm
  • Total Length: 100mm
  • Screw: M4*10
  • Wrench: T15
  • Compatible Blades: SCMT09T302 SCMT09T304 SCMT09T308 SCMT3(2.5)0 SCMT3(2.5)1 SCMT3(2.5)2

• Versatile and Reliable External Tool Holder for CNC Lathes and Machining Centers

• 5-Point Description

1. 1. Optimal Cutting Edge Angle: The SSCR1616H09 features a precise 45° cutting edge angle, ideal for achieving superior performance and clean finishes in various machining operations.



   2. Efficient Relief Angle Design: With a 7° relief angle, this tool holder minimizes cutting resistance, improving chip evacuation and enhancing tool life for sustained productivity.



   3. Secure S-Type Screw Clamping System: The robust S-type screw clamping mechanism ensures a firm grip on blades, reducing vibrations and ensuring stability during high-speed operations.



   4. Robust and Versatile Dimensions: With a shank width and standard width of 16mm, shank length of 16mm, and total length of 100mm, the SSCR1616H09 is designed for seamless integration into a variety of CNC machining setups.



   5. Wide Compatibility with Tool Blades: Compatible with a range of blades including SCMT09T302, SCMT09T304, SCMT09T308, SCMT3(2.5)0, SCMT3(2.5)1, and SCMT3(2.5)2, this tool holder comes equipped with an M4*10 screw and T15 wrench for effortless assembly and use.
