stfcr1616h11
STFCR STFCL

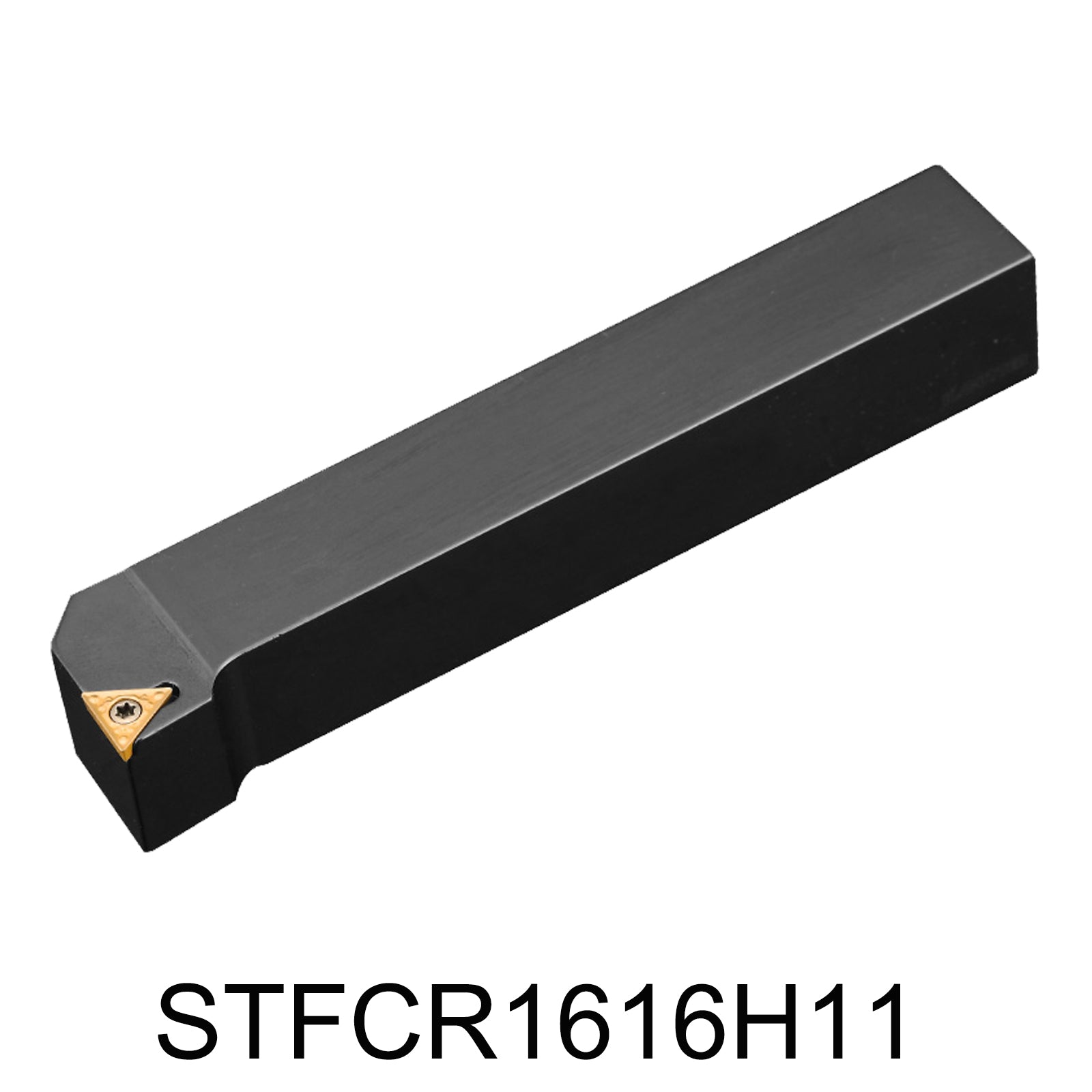

STFCR1616H11 Indexable External Holder | Precision Tool Holder for CNC Machining Excellence

$14.19 USD
Shipping calculated at checkout.

cnchome-beyond assurance

1.Safe payments Payment methods used by many international shoppers
2.Security & privacy We respect your privacy so your personal details are safe
3.Buyer protection Get your money back if your order isn't delivered by estimated date or if you're not satisfied with your order

4.Free shipping

american expressmasterpaypalvisa
SKU: STFCR1616H11
Availability : In Stock Pre order Out of stock
Description

BEYOND STFCR1616H11 STFCR 1616H11 1616 STFCR Indexable External Holder STFCR1616H11 CNC Lathe Cutting Shank Carbide Inserts TCMT 1102 TCMT1102

  • Elevate Your Machining Precision with the STFCR1616H11 External Tool Holder

  • Overview

Introducing the STFCR1616H11 External Tool Holder, meticulously engineered for precision and durability in CNC machining applications. With its optimal cutting edge angle of 91° and a blade relief angle of 7°, this tool holder is designed to deliver exceptional performance and versatility. The robust S-type screw clamping system ensures secure blade retention, making the STFCR1616H11 an indispensable tool for CNC machine tools, lathes, and machining centers.

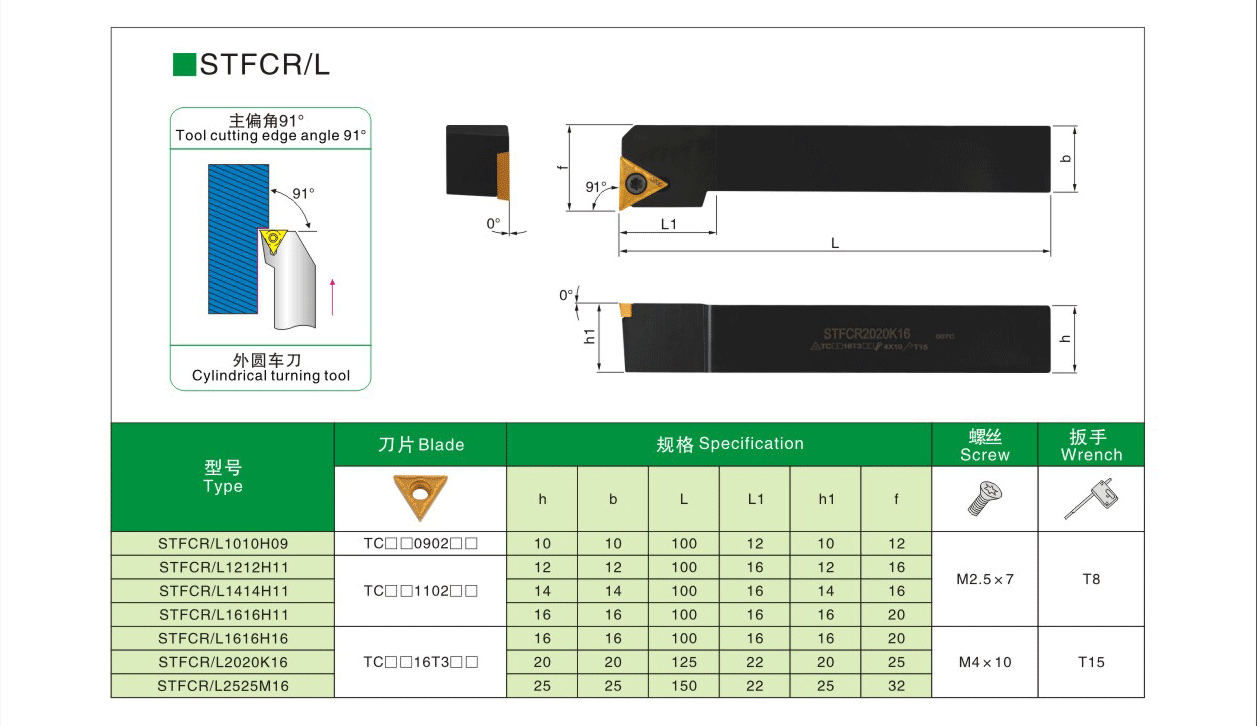

  • Features and Specifications

    • Model:STFCR1616H11
    • Package Includes: STFCR1616H11 Cylindrical Turning Tool and compatible  Screws, and Wrenches
    • 91° Tool Cutting Edge angle and 7° relief angle.
    • Type: S-Type (Screw Clamping System)
    • Shank width: 16mm
    • Shank length: 16mm
    • Total Length: 100mm
    • Screw: M2.5*7
    • Wrench: T8
    • Compatible Blades: TCMT110202 TCMT110204 TCMT110208 TCMT2(1.5)0 TCMT2(1.5)1 TCMT2(1.5)2
  • Robust and Versatile Tool Holder for CNC Machines

  • 5-Point Description

    1. Optimal Cutting Edge Angle: The STFCR1616H11 features a cutting edge angle of 91° and a blade relief angle of 7°, ensuring superior performance in a wide range of machining applications, from simple to complex geometries.



    2. Versatile Blade Compatibility: This external tool holder is compatible with a variety of blades, including TCMT110202, TCMT110204, TCMT110208, TCMT2(1.5)0, TCMT2(1.5)1, and TCMT2(1.5)2, offering versatility to meet diverse machining needs.



    3. Secure Screw Clamping Mechanism: Designed with a reliable S-type screw clamping system, the STFCR1616H11 ensures that blades are securely held in place, providing confidence and stability during high-speed operations.



    4. Durable Construction: Crafted from high-quality materials, this tool holder is built to withstand rigorous machining conditions, offering long-lasting performance and reliability in your workshop.



    5. Compact and User-Friendly Dimensions: With a shank width and length of 16mm and a total length of 100mm, the STFCR1616H11 is compact and designed for ease of installation, making it a practical addition to any CNC setup.

      STFCR1616H11

Indexable external holder
