BEYOND STFCR1616H16 STFCR1616 H16 STFCR 1616 Turning Tools For Lathe STFCR 1616H16 CNC Lathe Cutting Shank STFCL Carbide Inserts TCMT 16T3 TCMT16T3

• Elevate Your Machining Process with the STFCR1616H16 Tool Holder

• Overview

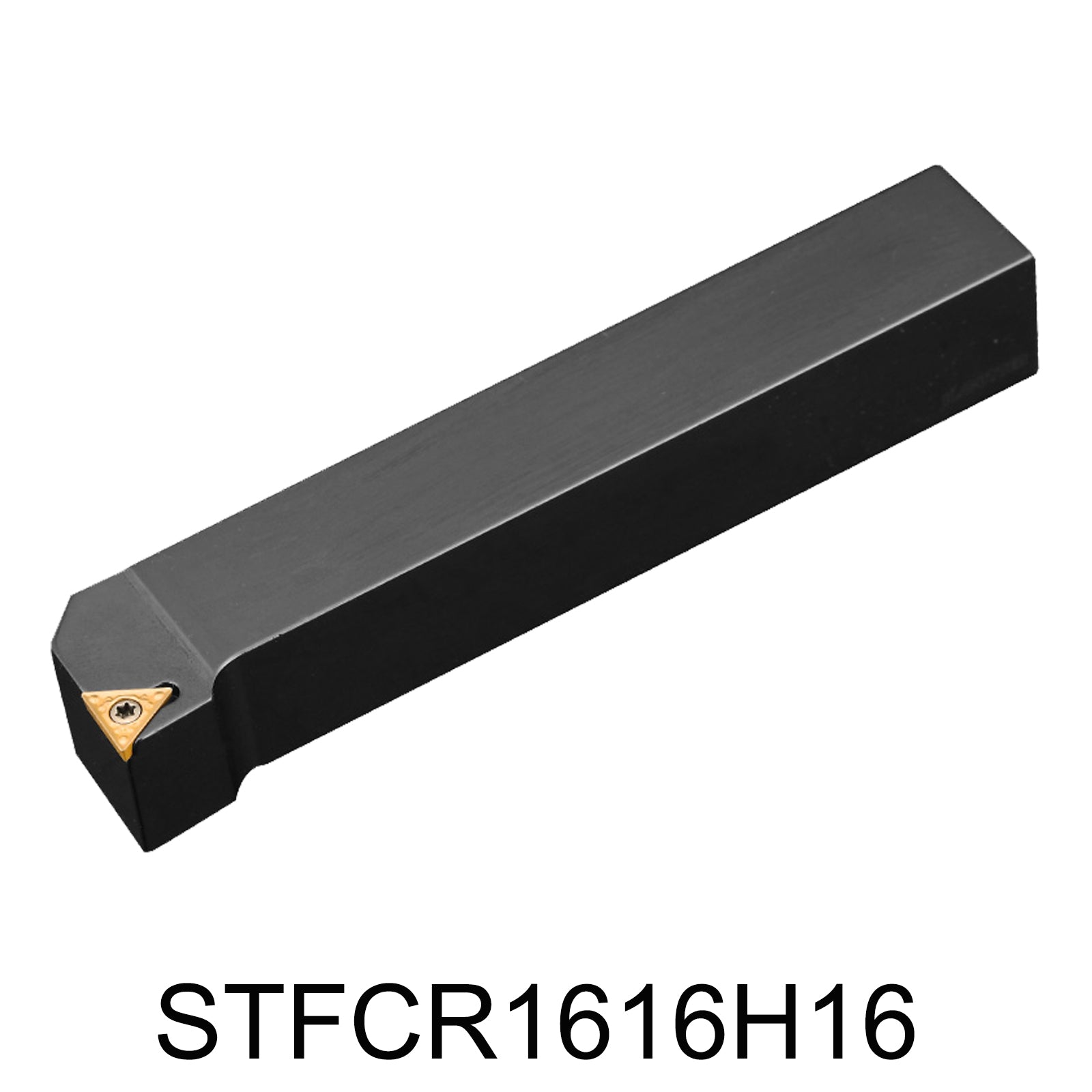

Introducing the STFCR1616H16 External Tool Holder, designed for precision machining in CNC lathes and machining centers. Featuring a unique cutting edge angle of 91° and a relief angle of 7°, this tool holder provides exceptional cutting performance while minimizing wear on blades. The external cylindrical design, equipped with an S-type screw clamping system, ensures a secure grip for enhanced stability during operation. With compatible blades and robust construction, the STFCR1616H16 is the perfect solution for manufacturers seeking reliability and efficiency in their machining processes.

• Features and Specifications

  • Model:STFCR1616H16
  • Package Includes: STFCR1616H16 Cylindrical Turning Tool and compatible  Screws, and Wrenches
  • 91° Tool Cutting Edge angle and 7° relief angle.
  • Type: S-Type (Screw Clamping System)
  • Shank width: 16mm
  • Shank length: 16mm
  • Total Length: 100mm
  • Screw: M4*10
  • Wrench: T15
  • Compatible Blades: TCMT16T302 TCMT16T304 TCMT16T308 TCMT3(2.5)0 TCMT3(2.5)1 TCMT3(2.5)2

• Reliable Performance and Versatility with the STFCR1616H16 External Tool Holder

• 5-Point Description

1. 1. Innovative Cutting Edge Angle: The STFCR1616H16 features a cutting edge angle of 91°, ideal for achieving intricate shapes and precise finishes, maximizing the efficiency of your CNC operations.

   2. Optimized Relief Angle: With a relief angle of 7°, this tool holder significantly reduces cutting forces and improves chip removal, leading to longer tool life and enhanced machining performance.

   3. Secure S-Type Screw Clamping System: Designed with an S-type screw clamping mechanism, the STFCR1616H16 ensures a tight grip on blades, minimizing vibrations and enhancing stability during high-speed cutting.

   4. Versatile Dimensions for Compatibility: Measuring a shank width and standard width of 16mm, a shank length of 16mm, and a total length of 100mm, this tool holder is compatible with various CNC machines, providing versatility for multiple applications.

   5. Compatibility with Leading Blade Models: Compatible with TCMT16T302, TCMT16T304, TCMT16T308, TCMT3(2.5)0, TCMT3(2.5)1, and TCMT3(2.5)2 blades, the STFCR1616H16 comes with an M4*10 screw and T15 wrench for easy installation and maintenance.
