BEYOND SVQBR1616H11 SVQBR1616 H11 SVQBR1616 External Tool Holders For Turning SVQBR1616H11 CNC Lathe Cutting Shank SVQBR Carbide Inserts VBMT 1103 VBMT1103

• Achieve Unmatched Efficiency with the SVQBR1616H11 Tool Holder

• Overview

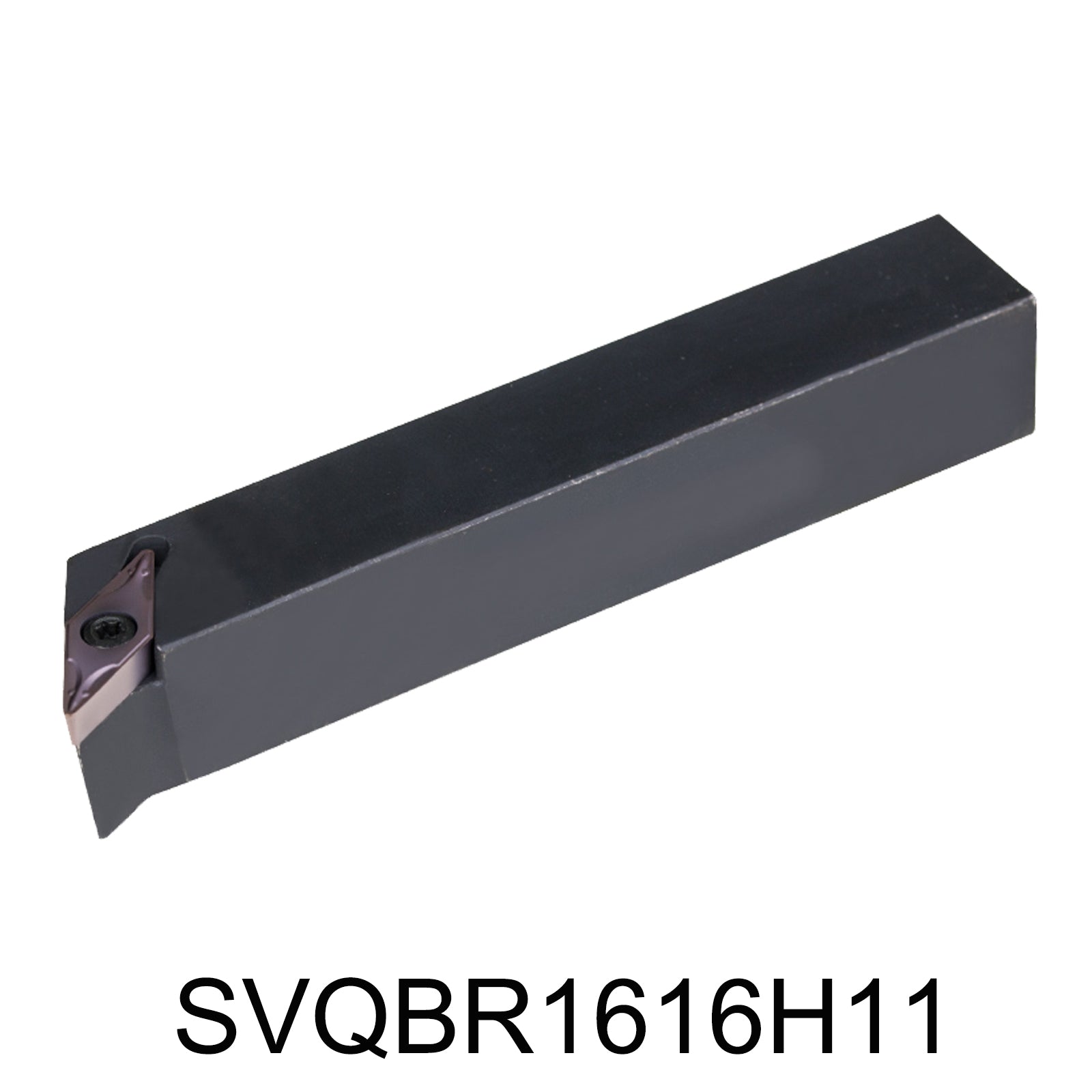

The SVQBR1616H11 External Tool Holder is expertly crafted to meet the demanding needs of CNC machining, CNC lathes, and machining centers. With a cutting edge angle of 117.5° and a relief angle of 5°, this tool holder provides exceptional precision and efficiency in various machining applications. The robust S-type screw clamping system ensures secure blade retention, minimizing vibrations and improving overall machining stability. Compatible with a range of high-performance blades, the SVQBR1616H11 is the perfect solution for professionals seeking reliability and versatility in their tooling options.

• • Model:SVQBR1616H11
  • Package Includes: SVQBR1616H11 External Lathe Turn Tool holder and compatible  Screws, and Wrenches
  • 117.5° Tool Cutting Edge angle and 5° relief angle.
  • Type: S-Type (Screw Clamping System)
  • Shank width: 16mm
  • Shank length: 16mm
  • Total Length: 100mm
  • Screw: M2.5*7
  • Wrench: T8
  • Compatible Blades: VBMT110302 VBMT110304 VBMT110308 VBMT220 VBMT221 VBMT222

• Key Features of the SVQBR1616H11 Tool Holder

• 5-Point Description

1. Optimized Cutting Edge Angle: The SVQBR1616H11 features a cutting edge angle of 117.5°, allowing for increased cutting efficiency and precision during machining operations.
2. Enhanced Relief Angle: With a 5° relief angle, this tool holder minimizes tool wear and enhances chip removal, resulting in cleaner finishes and prolonged tool life.
3. Reliable S-Type Clamping System: The S-type screw clamping system ensures tight and secure retention of blades, reducing vibrations for improved machining accuracy.
4. Compact and Sturdy Design: The tool holder has a shank width and length of 16mm and a total length of 100mm, providing durability and stability for heavy-duty applications.
5. Wide Blade Compatibility: Designed to accommodate a variety of blades including VBMT110302, VBMT110304, VBMT110308, VBMT220, VBMT221, and VBMT222, the SVQBR1616H11 offers versatility for different machining tasks.
