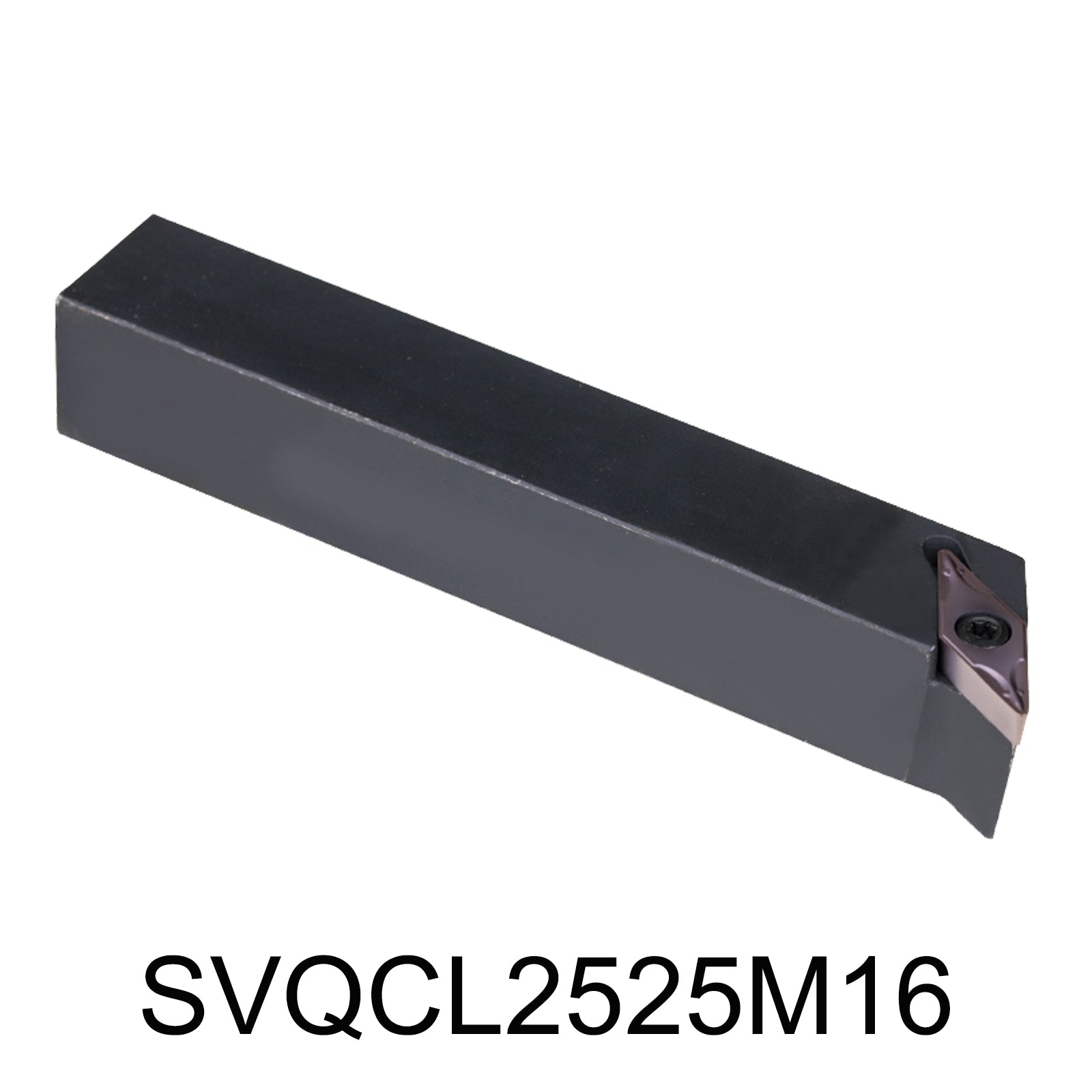

BEYOND SVQCL2525M16 SVQCL2525 M16 SVQCL2525 External Lathe Tool Holder  SVQCL2525M16 CNC Lathe Cutting Shank SVQCL Carbide Inserts VCMT 1604 VCMT1604

• Unleash Precision and Performance with the SVQCL2525M16 Tool Holder

• Overview

Introducing the SVQCL2525M16 External Tool Holder, a precision-engineered tool designed for enhanced performance in CNC machining applications. With a cutting edge angle of 117.5° and a relief angle of 7°, this tool holder delivers optimal cutting efficiency and superior surface finishes. Its durable construction and compatibility with a wide range of blades make it an essential addition to any machining toolkit.

• • Model:SVQCL2525M16
  • Package Includes: SVQCL2525M16  External Lathe Turn Tool holder and compatible  Screws, and Wrenches

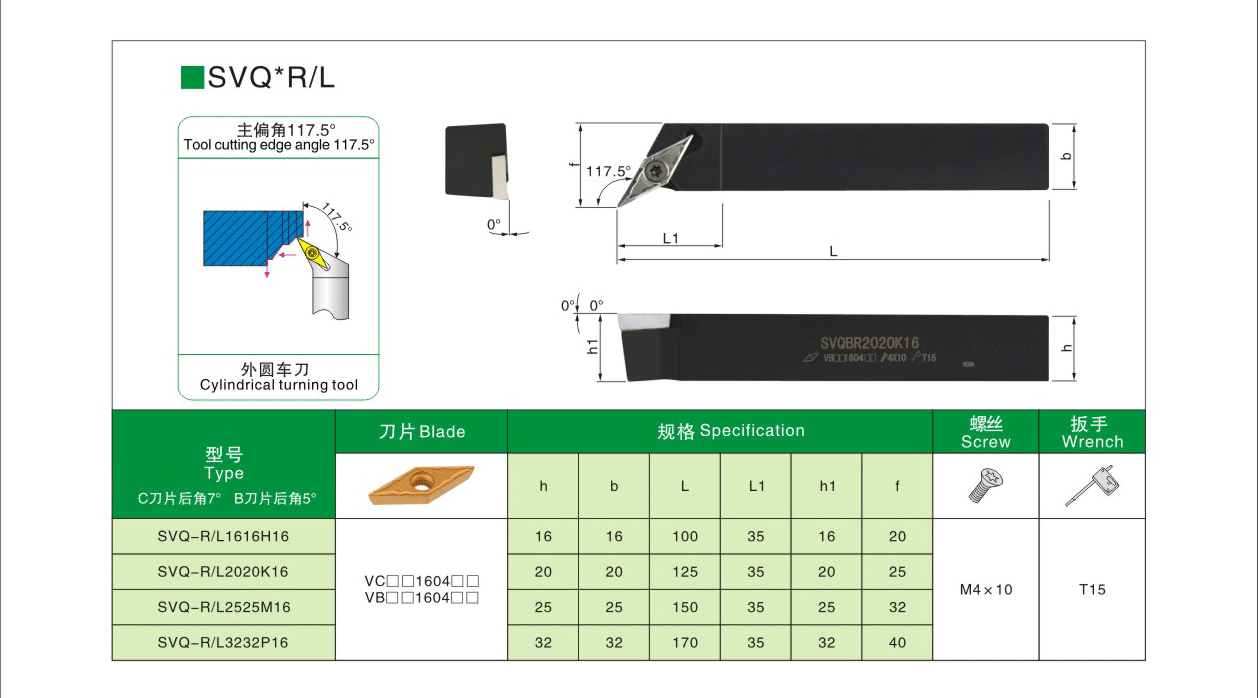

  • 117.5° Tool Cutting Edge angle and 7° relief angle.
  • Type: S-Type (Screw Clamping System)
  • Shank width: 25mm
  • Shank length: 25mm
  • Total Length: 150mm
  • Screw: M4*10
  • Wrench: T15
  • Compatible Blades: VCMT160402 VCMT160404 VCMT160408 VCMT160412 VCMT330 VCMT331 VCMT332 VCMT333

• Discover the Exceptional Features of the SVQCL2525M16 External Tool Holder

• 5-Point Description

1. Optimized Cutting Edge Angle: Featuring a 117.5° cutting edge angle, the SVQCL2525M16 is designed to improve chip evacuation and reduce cutting forces, resulting in cleaner cuts and superior surface finishes across various materials.

2. Robust and Reliable Construction: Manufactured from high-grade materials, this external cylindrical tool holder offers exceptional durability and performance, ensuring long-lasting use even in the most demanding CNC machining environments.

3. Versatile Compatibility: The SVQCL2525M16 is compatible with a wide range of blades, including VCMT160402, VCMT160404, VCMT160408, VCMT160412, VCMT330, VCMT331, VCMT332, and VCMT333, making it a flexible choice for diverse machining tasks.

4. Screw Clamping System for Secure Grip: The integrated screw clamping system (M4*10) ensures a secure fit for the blades, allowing for quick and hassle-free blade changes. The included T15 wrench simplifies installation and adjustments, minimizing downtime.

5. Ideal for Professional Machining Applications: Specifically designed for CNC machine tools, CNC lathes, and machining centers, the SVQCL2525M16 tool holder enhances productivity and precision, making it a must-have for any professional machining operation.
