BEYOND SVUCR1616H16 SVUCR1616 H16 SVUCR1616 Outside Diameter Turning Tools SVUCR1616H16 CNC Lathe Cutting Shank SVUCR Carbide Inserts VCMT 1604 VCMT1604

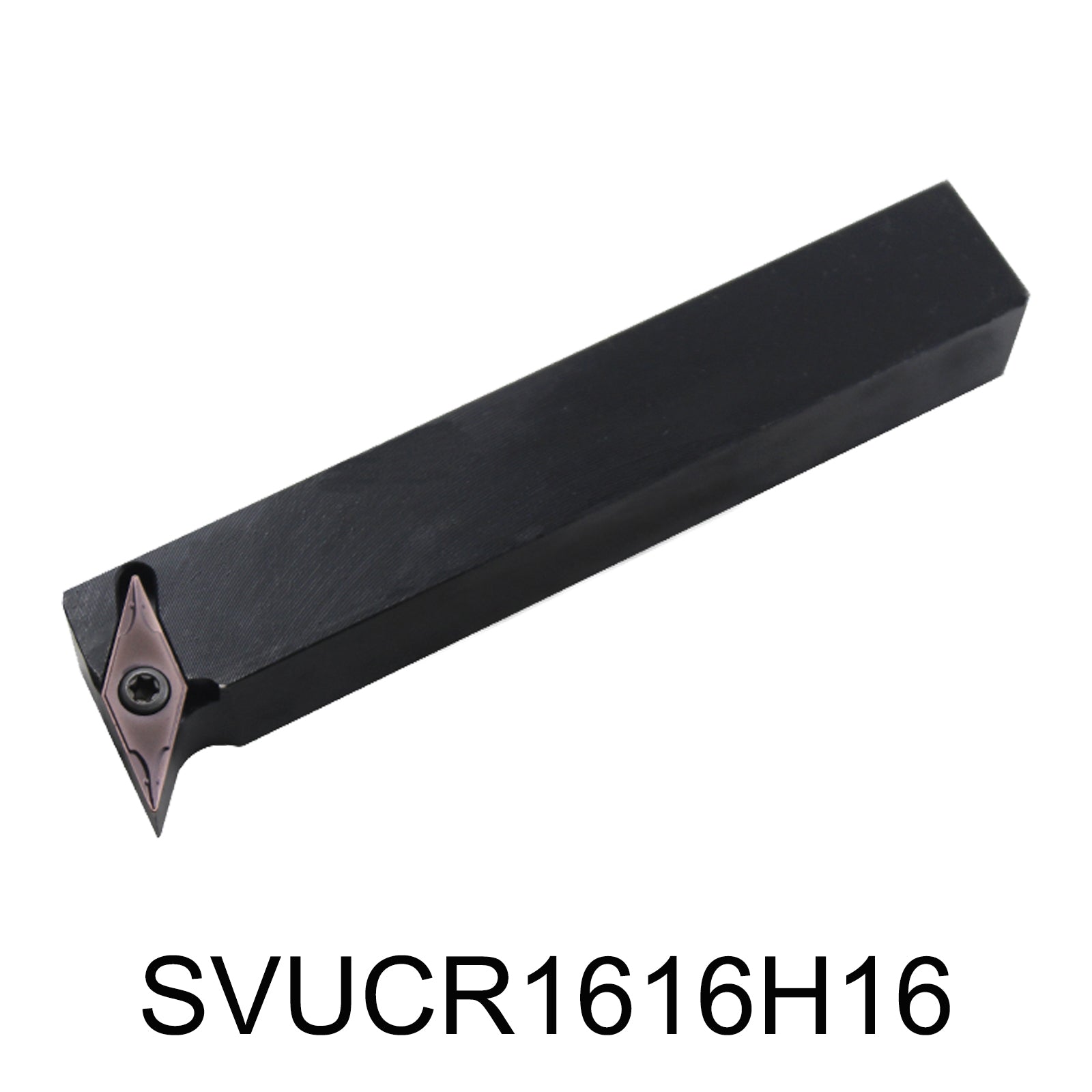

• SVUCR1616H16 External Tool Holder – High-Performance Tooling for CNC Machining

• Overview

Introducing the SVUCR1616H16 External Tool Holder, designed for exceptional performance in CNC machining applications. Featuring a cutting edge angle of 95° and a relief angle of 7°, this tool holder ensures optimal cutting performance, enhancing both precision and efficiency. The robust design, with a shank width and length of 16mm and a total length of 100mm, makes it suitable for a variety of machining environments. The S-type screw clamping system allows for quick and easy blade changes, increasing productivity. Compatible with an array of VCMT blades, the SVUCR1616H16 is the perfect choice for CNC lathes and machining centers, delivering reliability and versatility in every application.

• • Model:SVUCR1616H16
  • Package Includes: SVUCR1616H16  External Lathe Turn Tool holder and compatible  Screws, and Wrenches

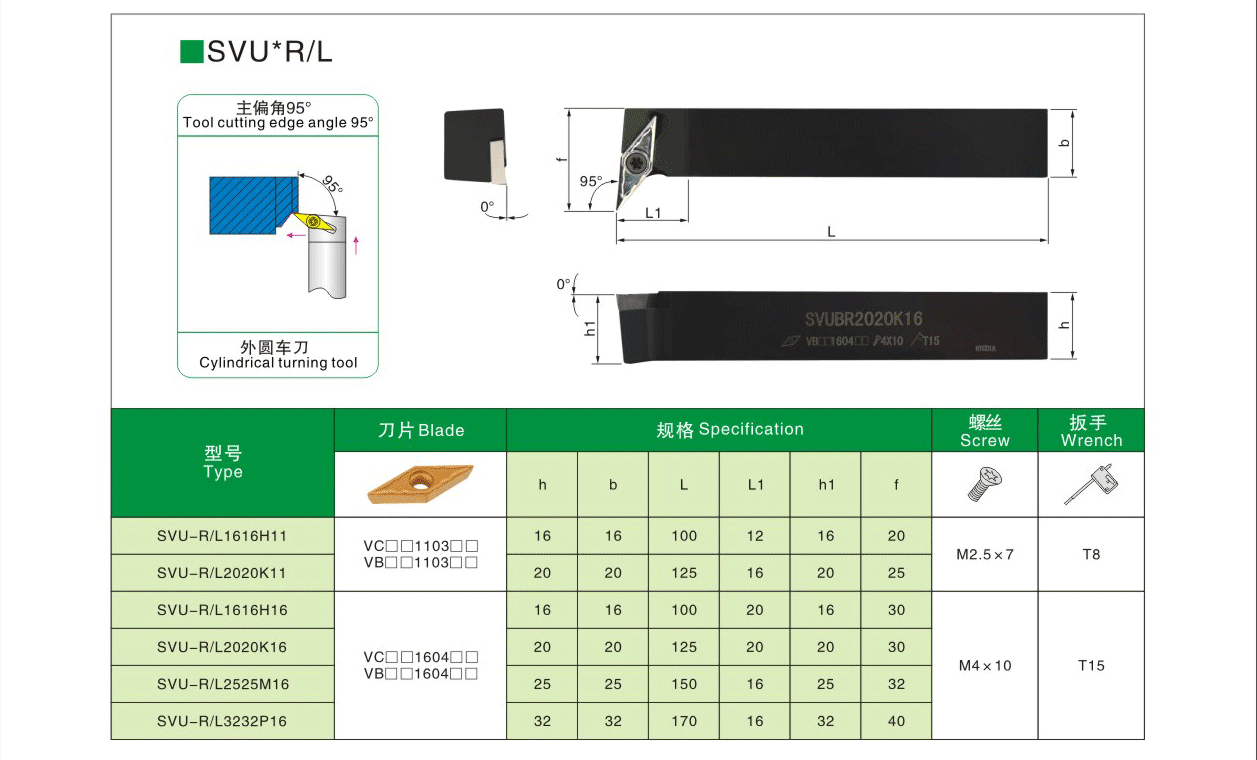

  • 95° Tool Cutting Edge angle and 7° relief angle.
  • Type: S-Type (Screw Clamping System)
  • Shank width: 16mm
  • Shank length: 16mm
  • Total Length: 100mm
  • Screw: M4*10
  • Wrench: T15
  • Compatible Blades: VCMT160402 VCMT160404 VCMT160408 VCMT160412 VCMT330 VCMT331 VCMT332 VCMT333

• Achieve Precision and Efficiency with the SVUCR1616H16 Tool Holder

• 5-Point Description

1. Optimal Cutting Angles: The SVUCR1616H16 features a cutting edge angle of 95° and a relief angle of 7°, ensuring superior cutting efficiency and improved surface finish across various materials.

2. Robust Design: With a shank width and length of 16mm, and a total length of 100mm, this tool holder is engineered for stability and precision, making it ideal for high-speed machining tasks.

3. Wide Blade Compatibility: This tool holder is compatible with multiple VCMT blades including VCMT160402, VCMT160404, VCMT160408, VCMT160412, VCMT330, VCMT331, VCMT332, and VCMT333, offering versatility for diverse machining applications.

4. Efficient Clamping System: The S-type screw clamping system allows for quick and secure blade changes, significantly reducing downtime and increasing productivity during machining operations.

5. Designed for CNC Machinery: Perfectly suited for CNC machine tools, CNC lathes, and machining centers, the SVUCR1616H16 enhances machining capabilities and delivers reliable performance for professional users.
