Specifications:

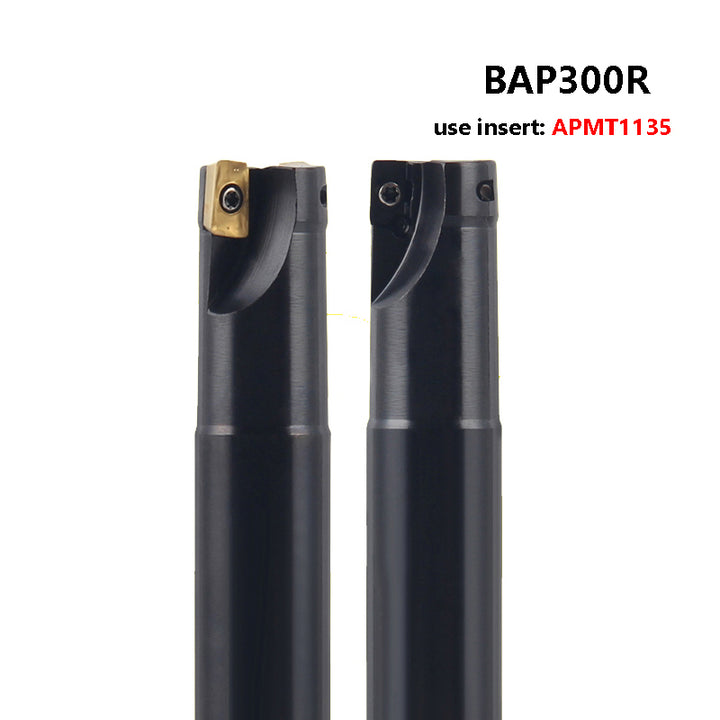

• Designation: BAP300R-38-85-C16-3T
• Blade material:Coated
• Working diameter of tool bar : 38mm

• Tool bar length : 85mm

• Tool handle diameter : 16mm

• Number of blades : 3
• Adapter screws : M4*10

• Adapter wrenches : T15
• Adapter blade : APMT1135

• Package Includes: A knife bar(not include blade)

Features of thick corn knife:

• Square shoulder right angle milling cutter bar, fast milling, high efficiency.

• Made of quenched 42CrMo alloy steel, wear-resistant and durable, long life.

• Side milling and face milling are formed in one step, efficient and reliable.

• The blade and the groove are precisely fitted, and the body is installed with high precision.

• The neck of the cutter body is optimized to avoid air, with sufficient margin and not easy to hit the cutter.

• Imported five-axis machine tool static fine grinding, small body runout.

BAP300R-38-85-C16-3T Milling Cutter Bar – Efficient Square Shoulder Right Angle Cutter for Precise CNC Milling

High-Efficiency, Wear-Resistant Milling Cutter Bar for Side and Face Milling Applications

Precision-Machined Cutter with Optimized Neck Design for Smooth Operation and Extended Tool Life
