BEYOND VC22 Fast-Feed Aluminum Roughing Face Mill Set – 30/32/35 mm, 2-Flute, M12/M16
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND VC22 Fast-Feed Face Mill Kit for Aluminum – 3 pc Roughing Set
Slash cycle times and triple material-removal rates on 6061, 6063, 7075 and cast-aluminum parts with the BEYOND VC22 fast-feed lock-tooth system. Each cutter is engineered for high-speed, low-load roughing—perfect for automotive, aerospace and mold-block aluminum machining.
Key Advantages
- 2-flute design evacuates chips at feeds up to 0.4 mm/tooth
- Lock-tooth interface eliminates insert micro-movement & chatter
- Mirror-polished pocket resists built-up edge (BUE)
- Balanced to G2.5 25,000 rpm for Makino, Haas, Brother & DMG
Kit Contents
| Model | Diameter (D) | Flutes | Thread | Insert Screw | Max ap | Max ae |
|---|---|---|---|---|---|---|
| VC22-D30-2T-M12 | 30 mm | 2 | M12 × 1.75 | Torx-plus 15 | 2.2 mm | 17 mm |

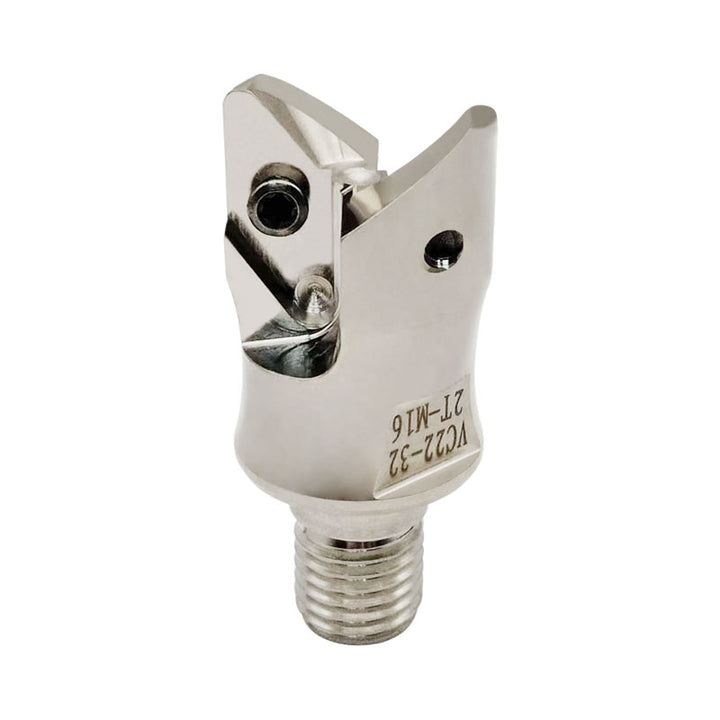

| VC22-D32-2T-M16 | 32 mm | 2 | M16 × 2.0 | Torx-plus 15 | 2.2 mm | 18 mm |
| VC22-D35-2T-M16 | 35 mm | 2 | M16 × 2.0 | Torx-plus 15 | 2.2 mm | 20 mm |
Recommended Insert
VCGT220530 (sold separately, 2 inserts per cutter required)
- Sharp-ground 0.2 mm hone for low cutting force
- PCD-tipped or uncoated micro-grain carbide grades available
Cutting Data
- Speed: 600–1200 m/min (aluminum)
- Feed per tooth: 0.25–0.40 mm
- Axial depth (ap): 0.5–2.2 mm
- Radial width (ae): ≤ 60 % D
Compatible Machines
Any BT, HSK, SK or ER collet holder with M12/M16 threaded end. Ideal for high-speed Brother, Fanuc Robodrill, Haas Mini-Mill & Datron.
Search Tags
aluminum roughing face mill, fast feed aluminum cutter, VC22 lock tooth mill, VCGT220530 insert, high-speed aluminum machining, BEYOND VC22, 30 mm 32 mm 35 mm face mill, CNC aluminum roughing, 2 flute aluminum mill, M12 M16 thread mill, aluminum high feed cutter
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
