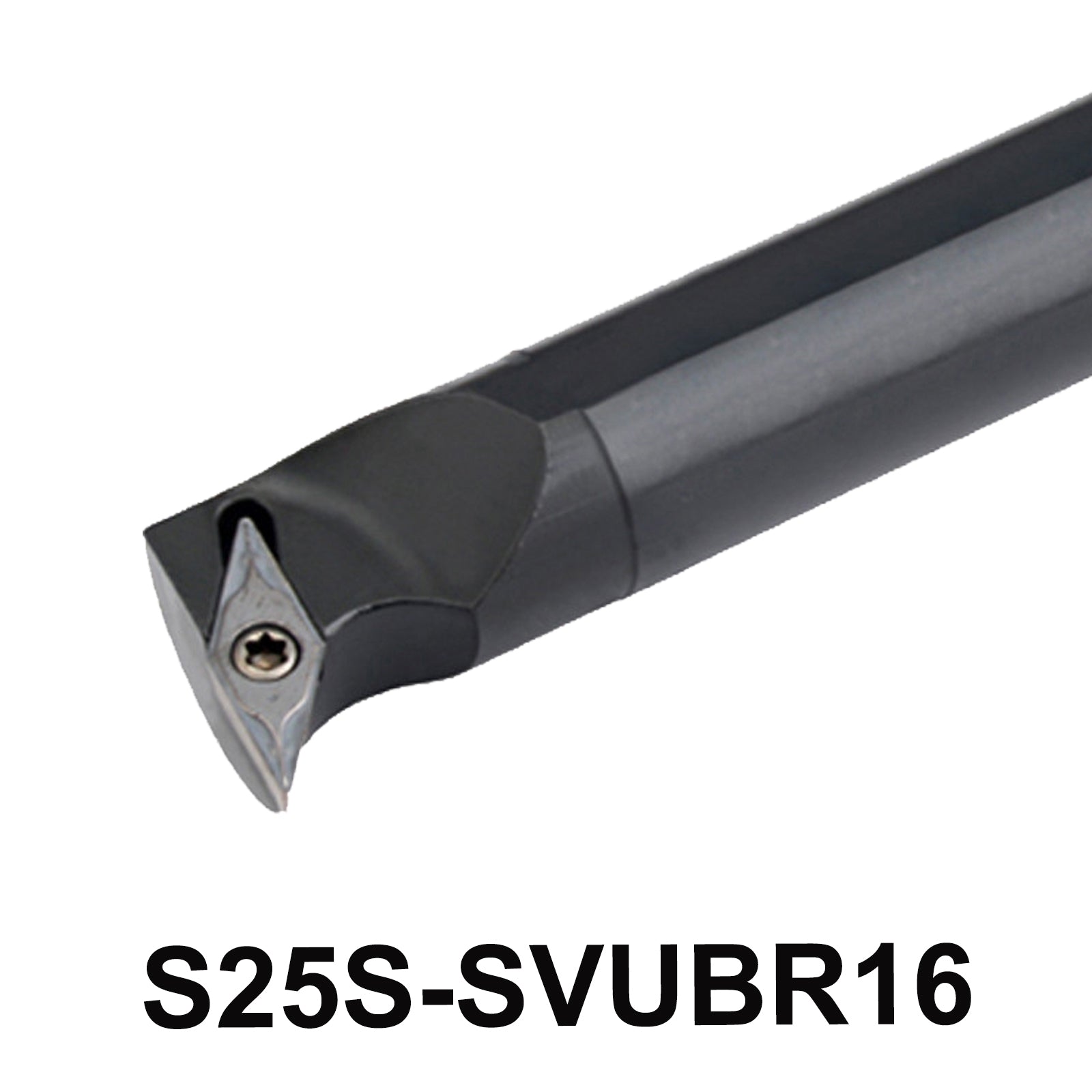

BEYOND S25S-SVUBR16 Internal Turning Tools Holder S25S SVUBR16 SVUBR 16 Boring Bar CNC Lathe Cutter Machine SVUBR Carbide Inserts VBMT1604 VBMT160404

• S25S-SVUBR16 Information Overview

• Overview

The S25S-SVUBR16 Mechanical Lathe CNC Internal Boring Bar Tool Holder is engineered to meet the highest standards of machining precision and durability. Made from superior alloy steel, this tool holder features a 95° cutting edge angle for optimal cutting performance. The adjustable screw-type mechanism, including an M4*10 screw and T15 wrench, ensures precise blade positioning and easy adjustments. Compatible with a range of carbide inserts, this tool holder is perfect for CNC lathes and internal boring tasks, offering enhanced stability and accuracy. Elevate your machining capabilities with the S25S-SVUBR16 for superior performance and reliability.

• Dimensions and Specifications of S25S-SVUBR16 Boring Bar Holder Lathe

• Features and Specifications

  • Model: S25S-SVUBR16
  • Package Includes:S25R-SVUBR16 Tool Holder and compatible Screws, and Wrenches
  • 95° cutting edge angle and 5° relief angle.
  • Material:  alloy steel
  • Type: S-Type (Screw-type)
  • Handle Diameter: 25mm
  • Total Length: 250mm
  • Cutting Blade Length: 16mm
  • Screw Size: M4*10
  • Wrench: T15
  • Compatible Blades: VBMT160404  VBMT160408 VBMT331 VBMT332

• 5-Point Description

1. 1. High-Quality Alloy Steel: The S25S-SVUBR16 tool holder is constructed from top-grade alloy steel, ensuring exceptional durability and performance even in rigorous machining environments. Its robust build is designed to withstand high operational stresses.

   2. Precision Cutting Edge Angle: With a precise 95° cutting edge angle, this tool holder delivers accurate and efficient internal boring and turning, ensuring clean cuts and high-quality finishes in your CNC machining tasks.

   3. Adjustable Screw-Type Mechanism: The S-type (screw-type) adjustment, featuring an M4*10 screw and T15 wrench, allows for secure and precise positioning of the cutting blade. This facilitates easy adjustments and helps maintain consistent machining results.

   4. Versatile Blade Compatibility: This tool holder supports a variety of carbide inserts including VBMT160404, VBMT160408, VBMT331, and VBMT332, providing flexibility for different machining applications and insert preferences.

   5. Enhanced Machining Specifications: Designed with a handle diameter of 25mm, a total length of 250mm, and a cutting blade length of 16mm, the S25S-SVUBR16 offers improved stability and precision, making it an ideal choice for complex internal boring operations.
