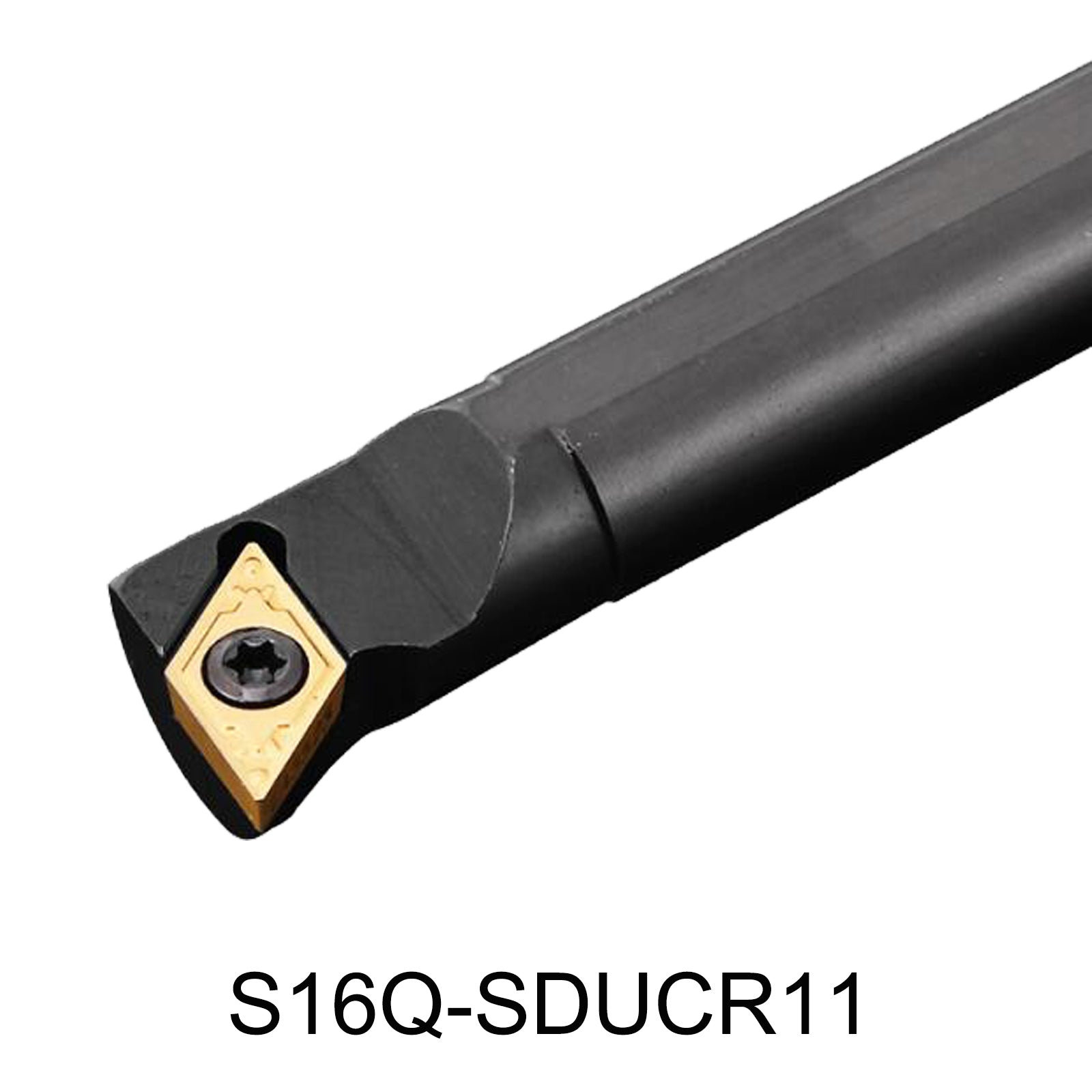

BEYOND S16Q-SDUCR11 Internal Boring Bar 16mm Shank CNC Lathe Turning Tool Holder Right Hand
Price shown is a starting point. Contact us for a precise quote based on your requirements.
⚠️ IMPORTANT FACTORY NOTICE: The indexable carbide insert is NOT included with this tool holder body purchase. Product photography displaying an attached cutting insert is intended purely to illustrate spatial tool orientation, pocket seating, and application setups.
BEYOND S16Q-SDUCR11 Heavy-Duty Internal Boring Bar & CNC Lathe Tool Holder
1. Product Overview
Engineers Search: "Which rigid 16mm right-hand boring bar matches with DCMT11T3 positive rake inserts to prevent deep-hole chatter during CNC internal profiling?"
The BEYOND S16Q-SDUCR11 is a high-rigidity, screw-on internal boring bar engineered for high-performance right-hand (R) CNC lathe operations, internal turning, and precise inner profiling. Built from premium-grade, vacuum-hardened alloy steel, the robust 16mm shank diameter provides excellent torsional stiffness to prevent structural deflection during deep-reach roughing and finishing passes. This industrial tool holder allows highly accurate tool paths inside medium-to-small bore openings down to a minimum clearance diameter of 20mm. It features a precision-machined 55 degree pocket geometry designed to lock DCMT 11T3-- indexable carbide inserts (such as DCMT 11T304 or DCMT 11T308) completely flush, eliminating pocket wear under severe metal-cutting forces.
When paired with indexable inserts engineered with a positive clearance rake and optimized chipbreaker configurations, this tooling setup ensures superior chip evacuation. The geometric chipbreaker mechanics break long, stringy alloy swarf into tightly curled, segmented chips. This prevents hazardous chip nesting inside deep blind cavities, protecting the machined surface from scratching and ensuring high-precision dimensional tolerances.
2. Product Core Features
- Vacuum-Hardened Alloy Body: Heat-treated to HRC 42-45 to provide superior dampening against micro-harmonics during long-overhang deep boring.
- Rigid 16mm Heavy-Duty Shank: Maximizes cross-sectional mass to withstand high radial forces during heavy metal removal rates (MRR) within compact bores.
- 93 Degree Dynamic Lead Cutting Angle: Advanced profiling geometry allows fluid back-boring and facing while seamlessly guiding chip paths away from the workpiece wall.
- Industrial Anti-Galling Black Coat: Premium chemical blackening provides excellent rust resistance and prevents hot chips from welding to the tool body.
Model Nomenclature Decoder: S16Q-SDUCR11
Steel Shank Body
16mm Shank Dia.
180mm Total Length
Screw Clamping System
55 Degree Diamond Shape
93 Degree Clearance Angle
7 Degree Relief Angle
Right Hand Orientation
11mm Insert Edge Size
Looking for the Mirrored Left-Hand (L) Tool Holder Unit to Balance Your Lathe Turret?
Explore the S16Q-SDUCL11 (Left Hand) Tool Holder →3. Technical Specifications & Dimension Comparison
| Technical Parameter | Metric Specification (S16Q-SDUCR11) | Imperial / Inch Equivalent Value |
|---|---|---|
| Shank Diameter | 16 mm | ~ 0.6299 inches (Closest standard: 5/8 inch shank profile / A10-SDUCR3) |
| Overall Length | 180 mm | ~ 7.0866 inches |
| Minimum Bore Clearance | 20 mm | ~ 0.7874 inches |
| Matching Insert Standard | DCMT 11T304 / DCMT 11T308 Index | DCMT 32.51 / DCMT 32.52 equivalent classes |
| Mounting Hardware | M4.0 Insert Locking Screw + T15 Torx Wrench | M4.0 High-Tensile Screw + T15 Flag Key |
Optimal Industrial Cutting Speed & Feed Recommendation
| ISO Workpiece Material Classification | Cutting Speed Range (Vc) | Feed Rate per Revolution Target (f) |
|---|---|---|
| Carbon / Alloy Steels (P-Class) | 130 - 220 m/min | 0.06 - 0.18 mm/rev |
| Stainless Steel Varieties (M-Class) | 80 - 160 m/min | 0.05 - 0.15 mm/rev |
| Cast Iron & Nodular Matrix (K-Class) | 90 - 180 m/min | 0.06 - 0.20 mm/rev |
4. Product Application Scenarios
- Tight Inner Clearance Boring: The 16mm core allows highly precise profiling into smaller inner chambers without sacrificial bar rub.
- Internal Profiling & Copying: Tailored for creating intricate internal shoulders, precision facings, and tapers in complex hydraulic blocks.
- Mid-to-Finish Cavity Machining: Provides optimal rigidity values across standard overhang deployments up to 4xD depth settings.
5. Equipment & Tooling Compatibility
- CNC Turning Equipment: Mounts beautifully inside standard 16mm turret positions, terminal split blocks, or boring sleeves.
- Tool Posts & Lathes: Universally ready for multi-station tool blocks, Aloris-style quick change components, or manual tool houses.
- Standard ISO Indexable Seats: Perfectly matches all international ISO-standard 55 degree positive DCMT 11T3-- indexable carbide geometries.
6. BEYOND Brand Grade Optimization Guide
Match your machining operations with the perfect premium BEYOND indexable carbide insert grade to maximize tool life:
| BEYOND Insert Grade | Substrate & PVD/CVD Coating Architecture | Ideal Application Material Focus |
|---|---|---|
| BYM11 (CVD Grade) | Thick Multilayer TiN + Al2O3 Heat Shield | Engineered for high-sfm continuous cutting cycles in structural carbon steels, tool steels, and structural alloys. |
| BYS25 (PVD Grade) | Nano-Structured TiAlN Wear-Resistant Coat | High thermal defense profile. Ideal for interrupted cuts, hard crust layers, and 304/316 stainless steel grades. |
| BYK15 (Uncoated Grade) | Mirror-Polished Fine Grain Carbide Substrate | Prevents built-up edge (BUE). Built for high-speed turned paths in aluminum alloys, brass, and polymers. |
7. Why Choose BEYOND CNC Tools?
BEYOND supplies world-class, high-mass tooling solutions built to excel under extreme machining parameters. By applying precision induction hardening across our mid-shank bars and maintaining strict quality control over our ground insert seats, we guarantee maximum component accuracy, lower cyclic vibration wear, and reduced downtime on your workshop floor.
Global Machinist Feedback
Frank R. — United States
"Excellent tool rigidity for a 16mm bar. Ran a deep blind bore profiling setup on 4140 steel and it left a beautiful finish with absolutely zero chatter."
Ulrich H. — Germany
"Passt perfekt in unsere Bohrungshalter. The insert pocket is very clean and accurately ground. Exceptional build quality on the right hand pass."
Alessandro M. — Italy
"Ottimo stelo in acciaio. Good chip evacuation space in compact bores. Right hand clearance geometry performs precisely as described."
Satoshi N. — Japan
"The 16mm profile fits great into our small automatic lathe setups. Pocket holds DCMT 11T3 completely flush."
Guillaume P. — France
"Very sturdy construction. The clamping system handles standard turning loads effortlessly. Highly recommended tool bar body."
8. AI-Style Engineering Support Engine (FAQ)
Q1: What is the maximum stable boring overhang ratio for this 16mm steel tool body?
A1: For premium steel shank tool bodies, the recommended reliable overhang limit is up to 4x the shank diameter. For this 16mm bar, you can confidently bore up to an extended depth of 64mm before needing anti-vibration bars.
Q2: What is the minimum bore diameter this 16mm tool holder can enter?
A2: Due to the structural indexable head offset and clamping relief space, the absolute minimum entry bore clearance is 20mm. Running inside tighter spaces risks damaging the bar flank wall.
Q3: What does the "Q" length indicator signify on this model?
A3: Under standard ISO coding conventions, the letter "Q" designates an overall tool length of 180mm. This provides plenty of chucking area for medium-to-small CNC block clamps.
9. Technical Maintenance & Diagnostic Guidelines
Equivalent Industry Models
Fully interchangeable with universal ISO metric standard catalog designation code S16Q-SDUCR11. Serves as a high-strength drop-in replacement for any standard 16mm or 5/8 inch tool pocket configuration holding 55 degree positive diamond profiles.
Troubleshooting Tips
Workpiece Surface Scoring: Increase chip flow flushing by using internal coolant or step up feed rates slightly to trigger cleaner chip breaking operations.
Rapid Pocket Deflection: Inspect pocket seating for fine embedded debris. Clean and torque the high-tensile M4 screw to exactly 3.0-3.2 Nm for absolute rigidity.
Workpiece Material Matrix
Engineered to operate reliably across primary material categories: P (Alloy, Structural, Carbon Steels), M (Stainless Steel lines), K (Grey and Ductile Cast Irons), N (Aluminum and Non-ferrous lines), and S (High-temp heat-resistant alloys).
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
