Beyond STFCL2020K11 CNC Left Hand External Turning Tool Holder
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Beyond STFCL2020K11 CNC Left Hand External Turning Tool Holder
Product Overview
"Which 20mm square-shank left-hand tool holder is best optimized for smooth external profiling, high-precision facing, and intricate contouring using positive 60° triangular carbide inserts on CNC turning centers?"

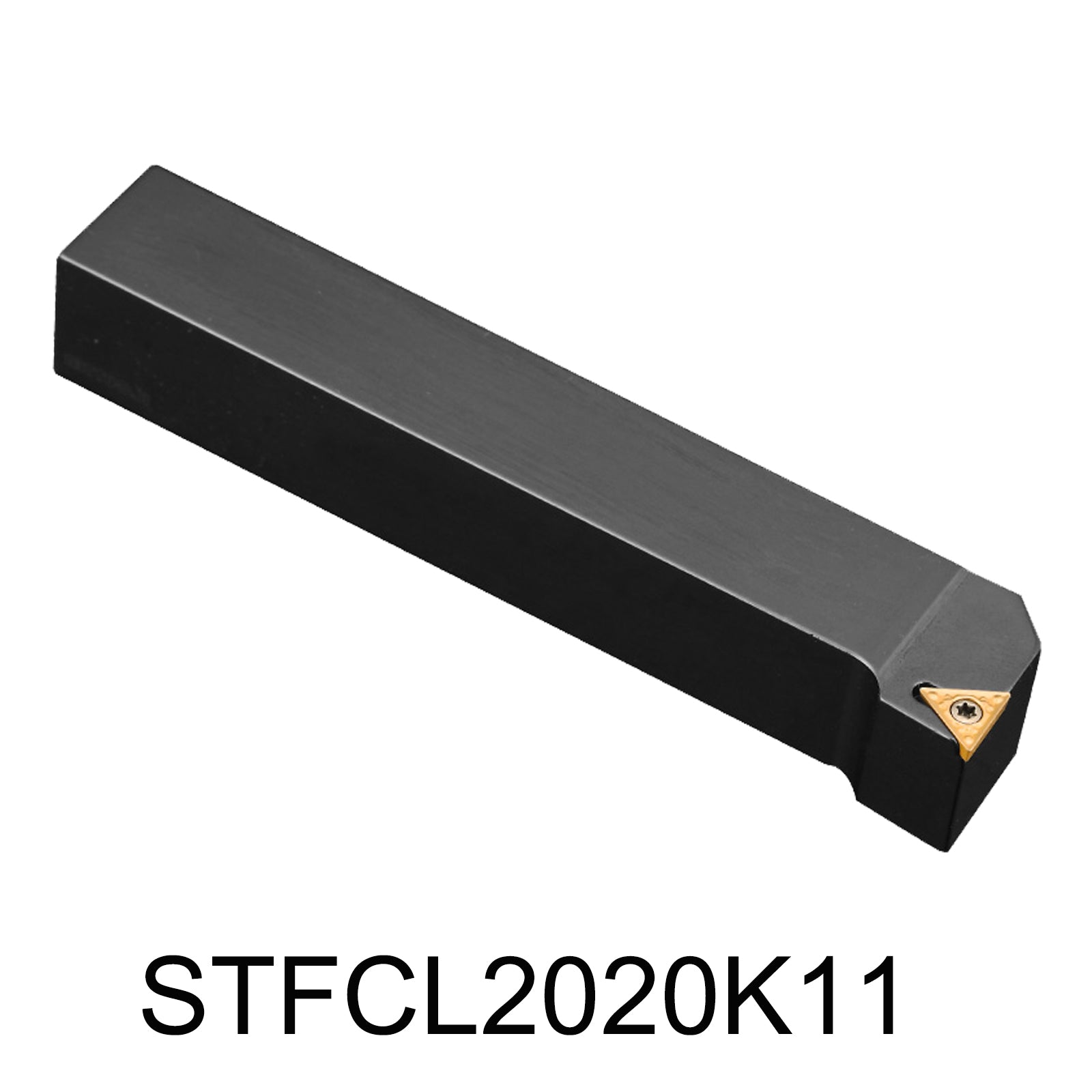

The Beyond STFCL2020K11 is an industrial-grade, indexable external left-hand turning tool holder engineered for high-precision lathe operations, finishing runs, and light-to-medium roughing cycles. Forged from high-tensile, heat-treated alloy steel, this tool incorporates a precise 91-degree approach angle (Lead Angle). The insert pocket is machined to a micron-level tolerance specifically to host TCMT1102-- (ANSI TCMT21.5--) positive triangular carbide inserts. Combining a heavy-duty 20x20mm square shank with a compact 11mm insert footprint, it offers an extreme degree of clearance and structural stiffness that suppresses harmonic vibrations across carbon steels, alloy steels, and sticky stainless steels.
ISO Naming Standard & Blueprint Breakdown
Every design metric of this turning bar follows rigorous international standard nomenclature:
Screw-On Lock
Triangle (60°)
91° Lead Angle
7° Positive Angle
Left Hand (L)
20mm x 20mm
125mm (K)
11mm (TCMT1102)
Product Key Features & Performance Advantages
- Quenched Alloy Substrate (HRC 42-45): Crafted from premium 42CrMo structural alloy steel subjected to specialized heat treatment to maximize fatigue life and structural resilience under continuous chip loads.
- Precision Pocket Pocketing & Seat Rigidity: Form-fitted precisely for the compact TCMT1102 size parameters, preventing micro-shifting under heavy load vectors and ensuring uniform wear patterns.
- 91° Left-Hand Clearance Configuration: Facilitates seamless left-hand longitudinal turning paths and clean perpendicular shoulder facing steps without rear-wall dragging.
- Anti-Wear Finish Protection: Coated in an industrial-grade matte black oxide layer to resist atmospheric rust, minimize micro-abrasion, and encourage unobstructed chip evaluation.
Technical Specifications & Metric vs Imperial Matrix
Maximize your machine's output with perfectly matched cutting inserts. Click the link button below to access our selection of premium triangle inserts:
✦ Shop Compatible TCMT1102 (TCMT21.5) Carbide Inserts ✦| Dimension Property Parameter | Metric Specification (ISO System) | Imperial System Equivalent (ANSI) |
|---|---|---|
| Tool Holder Naming Code | STFCL2020K11 | STFCL12-2C (Functional Size Match) |
| Shank Cross-Section Height & Width | 20 mm x 20 mm | 0.787" x 0.787" (Approx. 3/4 Inch Shank) |
| Overall Shank Length (L) | 125 mm | 4.921" |
| Applicable Insert Profiling | TCMT 1102-- (e.g., TCMT110204 / 110208) | TCMT 2(1.5)1 / TCMT 2(1.5)2 |
| Fastener Clamping Screws | Central Torx Screw M2.5 (T8 Wrench) | Heavy-Duty Insert Screw Equivalent |
| Cutting Hand Direction | Left Hand (L) | Left Hand (L) |
Recommended Industrial Cutting Parameters Matrix
| Workpiece Material Matrix | Cutting Velocity (Vc) Range | Feed Per Revolution (fn) Range |
|---|---|---|
| Carbon & Alloy Steels (P-Class) | 180 - 320 m/min (590 - 1050 SFM) | 0.05 - 0.22 mm/rev (0.002 - 0.009 ipr) |
| Stainless Steel Alloys (M-Class) | 120 - 230 m/min (395 - 755 SFM) | 0.04 - 0.18 mm/rev (0.0016 - 0.007 ipr) |
| Grey / Nodular Cast Iron (K-Class) | 140 - 260 m/min (460 - 850 SFM) | 0.06 - 0.25 mm/rev (0.0024 - 0.010 ipr) |
Industrial Product Applications
The STFCL2020K11 tool bar is engineered for nimble metal removal and stable processing across standard production setups:
- Precision External Profiling: The larger 20mm shank combined with a smaller 11mm insert gives programmers unique clearance paths when negotiating intricate contours or step-downs.
- 90-Degree Facing & Under-Cutting: The 91° approach angle allows clean 90-degree square shoulder steps to be faced seamlessly in a left-hand feeding path.
- High-Accuracy Finishing Cycles: Engineered primarily for light finishing steps and profiling passes where chip thickness control and low tool pressures are critical.
Machinery & Equipment Compatibility
Universally compatible with standard CNC automatic turrets, mid-sized production tool blocks, and conventional lathe quick-change tool posts (QCTP) utilizing standard 20mm (3/4 inch) tooling slots.
Beyond Brand Tooling Grade Comparison Matrix
| Beyond Holder Grade Line | Base Material Chemistry & Metallurgy | Primary Optimization Target | Anti-Chatter Rating |
|---|---|---|---|
| BY-Eco Class (HRC 40) | Standard 40Cr Structural Carbon Steel | Light maintenance, manual prototyping | ★★★☆☆ |
| BY-Pro Class (HRC 45) [This Model] | Premium Forged 42CrMo Steel Alloy | High production loops, high-feed processing | ★★★★★ |
| BY-Extreme Master (HRC 48) | Hardened Tool Steel + Special Treatment | Severe interrupted cuts, high-nickel alloys | ★★★★☆ |
Why Choose Beyond CNC Tooling?
Beyond delivers field-proven accuracy for modern production spaces. Through specialized CNC pocket pocketing, our indexable bars provide absolute seat positioning stability, reducing dimensional drift and extending carbide insert life under varied cutting parameters.
Worldwide Customer Experiences (Verified Toolrooms)
Using a 20mm shank with an 11mm insert gives incredible structural rigidity while still allowing room for tight corner profiles. Zero flex observed at high speeds.
Our machine shop pairs this left-hand holder with sharp ground inserts for high-precision facing loops. The surface finish quality remains exceptionally stable.
The pocket milling precision is top tier. The screw seats perfectly straight, holding down small TCMT1102 tips without any shifting issues.
Even under continuous production running conditions, the black oxide film layer handles hot chips effectively. Beyond tools are a permanent staple in our turret blocks.
AI-Style FAQ Assistant
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
