BEYOND 14-15.9mm 3xD Coolant Through Carbide Drill Bits
Heavy-Duty 3xD Coolant Through Drills with Robust D14/D16 Shanks

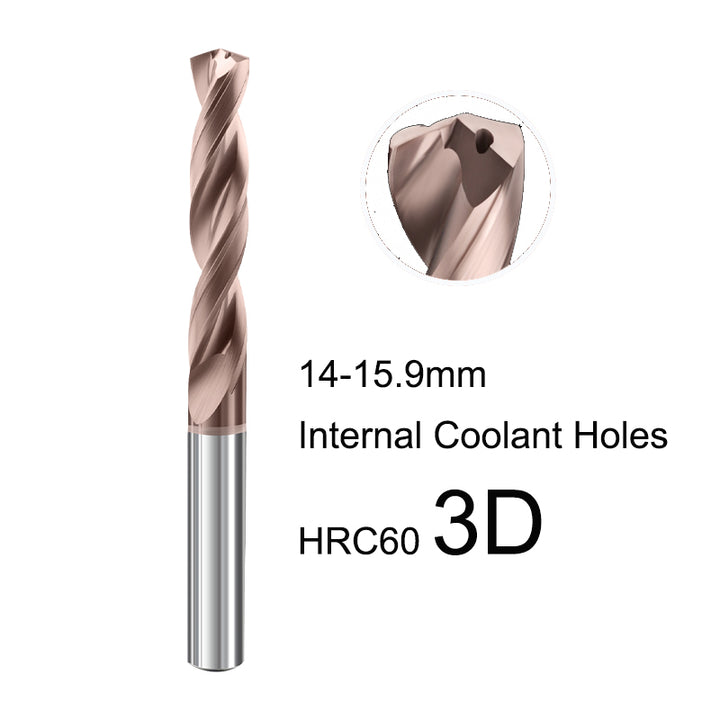

BEYOND 14-15.9mm 3xD coolant through carbide drill bits are engineered for the most demanding large-diameter drilling applications in heavy industry. Featuring robust D14 and D16 shank designs, these professional-grade tools deliver exceptional stability and precision in materials up to HRC60 hardness.
The advanced internal coolant system, combined with precision-ground 140° point angles, ensures efficient heat dissipation and superior chip evacuation. Manufactured from premium sub-micron grain carbide with TiAlN coating, these drills offer extended tool life and consistent performance in continuous production environments.
Key Features & Benefits
Large Diameter Industrial Range
14.0mm to 15.9mm complete size coverage with 0.1mm increments for precision large-scale drilling.
Robust Shank System
D14 (14mm) and D16 (16mm) shank diameters provide maximum stability and vibration damping.
Optimized 3xD Length
60-65mm flute length ensures ideal balance between drilling depth and tool rigidity.
HRC60+ Material Performance
Specially formulated carbide grade maintains cutting efficiency in hardened steels and super alloys.
140° Precision Point Geometry
Advanced point angle reduces thrust force and ensures accurate hole positioning in large diameters.
High-Pressure Coolant Ready
Internal coolant channels optimized for 30-50 bar pressure systems for maximum efficiency.
Detailed Specifications
| Diameter (mm) | Flute Length (mm) | Shank Diameter (mm) | Overall Length (mm) | Point Angle |
|---|---|---|---|---|
| 14.0 | 60 | D14 | 107 | 140° |
| 14.1 | 65 | D16 | 115 | |
| 14.2 | 65 | D16 | 115 | |
| 14.3 | 65 | D16 | 115 | |
| 14.4 | 65 | D16 | 115 | |
| 14.5 | 65 | D16 | 115 | |
| 14.6 | 65 | D16 | 115 | |
| 14.7 | 65 | D16 | 115 | |
| 14.8 | 65 | D16 | 115 | |
| 14.9 | 65 | D16 | 115 | |
| 15.0 | 65 | D16 | 115 | |
| 15.1 | 65 | D16 | 115 | |
| 15.2 | 65 | D16 | 115 | |
| 15.3 | 65 | D16 | 115 | |
| 15.4 | 65 | D16 | 115 | |
| 15.5 | 65 | D16 | 115 | |
| 15.6 | 65 | D16 | 115 | |
| 15.7 | 65 | D16 | 115 | |
| 15.8 | 65 | D16 | 115 | |
| 15.9 | 65 | D16 | 115 |
Technical Specifications
| Brand | BEYOND |
|---|---|
| Tool Type | Coolant Through Hole Twist Drill |
| Material | Sub-Micron Grain Carbide |
| Diameter Range | 14.0mm - 15.9mm (0.1mm increments) |
| Drill Length | 3x Diameter (3xD) |
| Hardness Capability | Up to HRC60+ |
| Point Angle | 140° |
| Coolant System | High-Pressure Internal Coolant (30-50 bar) |
| Shank Type | Straight Shank (D14/D16) |
| Coating | TiAlN (Titanium Aluminum Nitride) |
| Tolerance | h8 |
| Surface Finish | Ra 0.8 μm |
Product Series Configuration
14.0mm Special Configuration
• Diameter: 14.0mm
• Flute Length: 60mm
• Shank: D14
• Overall Length: 107mm
14.1-15.9mm Standard Series
• Diameter: 14.1-15.9mm
• Flute Length: 65mm
• Shank: D16
• Overall Length: 115mm
Industrial Applications
Heavy Equipment Manufacturing
- Construction machinery structural components
- Mining equipment heavy frames
- Agricultural machinery main structures
- Industrial press and stamping equipment
Large Scale Mold Making
- Automotive body panel molds
- Large composite material molds
- Industrial fixture and jig plates
- Machine tool structural components
Energy & Infrastructure
- Wind turbine structural parts
- Power generation equipment
- Bridge and construction elements
- Marine and offshore structures
Recommended Operating Parameters
Coolant Pressure
30-50 bar for optimal chip evacuation and cooling efficiency
Cutting Speed (Steel)
50-80 m/min (adjust based on material hardness and machine power)
Feed Rate
0.20-0.40 mm/rev for 14-15.9mm diameter range
Tool Holding
Hydraulic chucks or shrink fit holders recommended for D14/D16 shanks
Machine Requirements
Heavy-duty CNC machining centers with high-pressure coolant systems
