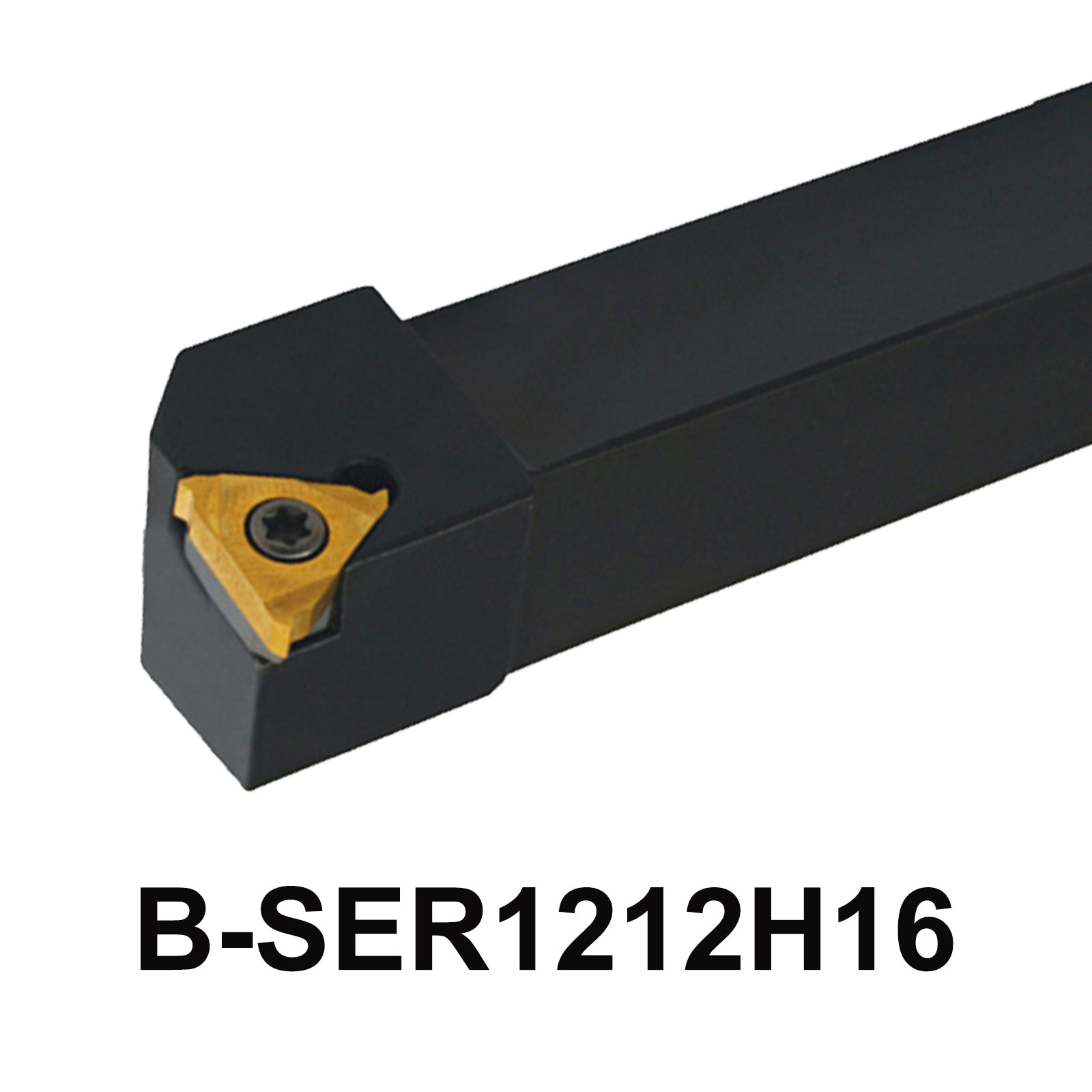

B-SER1212H16 CNC External Threading Tool Holder – Right-Cut, Compatible with 16ER Inserts, Complete Kit
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The B-SER1212H16 External Threading Tool Holders is designed to provide precision and durability for external threading operations on CNC lathes
Featuring a 100mm length and 12mm body width, it is optimized for use with 16ER inserts.The tool holder's right-cut cutting direction and side length of 16mm triangle blade ensure smooth and accurate thread cutting.
Product parameters:
-
Tool Holder Model: B-SER1212H16
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Model of Pressing plate : Screw compession type
- Thread form : External thread
- Cutting direction : Right cut
- Height of tool nose : 12mm
- Width of body of cutting tool : 12mm
- Length of cutting tool : 100mm
- Size of blade :
- 1.Side length of traingle : 16mm
- 2.Incircle : 9.525mm
- Applicable blade : 16R
- Shim : STM1603R
- Screw : M3.5*12
- Lateral screw : M3*8C
- Wrench : T15
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * B-SER1212H16 External Threading Tool Holders
1 * STM1603R Shim
1 * "T" Type wrench
1 * M3.5*12 Type Screw
1 * M3*8C Lateral screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise threading, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND B-SER1212H16 External Threading Tool Holders B-SER1212H16 B SER1212 H16 CNC Cutter Lathe Shank Carbide Insert
Upgrade Your CNC Lathe with the B-SER1212H16 Tool Holder for Precision External Thread Cutting
B-SER1212H16 Tool Holder – Durable, Accurate, and Reliable External Threading Solution
5-Point Description
-
High Precision External Threading: Designed for right-cut external threading, the B-SER1212H16 tool holder delivers consistent, high-quality threads for all your CNC lathe operations.
-
Durable Construction: Built with a 12mm body width and 12mm tool nose height, this tool holder is engineered for durability, ensuring longevity even under heavy-duty machining conditions.
-
Complete Setup: The package includes everything you need for easy installation and operation: STM1603R shim, M3.5*12 screws, M3*8C lateral screw, and a T15 wrench, saving time and effort during setup.
-
Versatile Compatibility: Compatible with 16ER inserts, the B-SER1212H16 tool holder is perfect for various threading tasks, offering flexibility and efficiency across different materials.
-
Optimized Blade Geometry: The 16mm triangle blade with a precise 9.525mm incircle ensures clean cuts and superior threading performance for professional results every time.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
