Description:

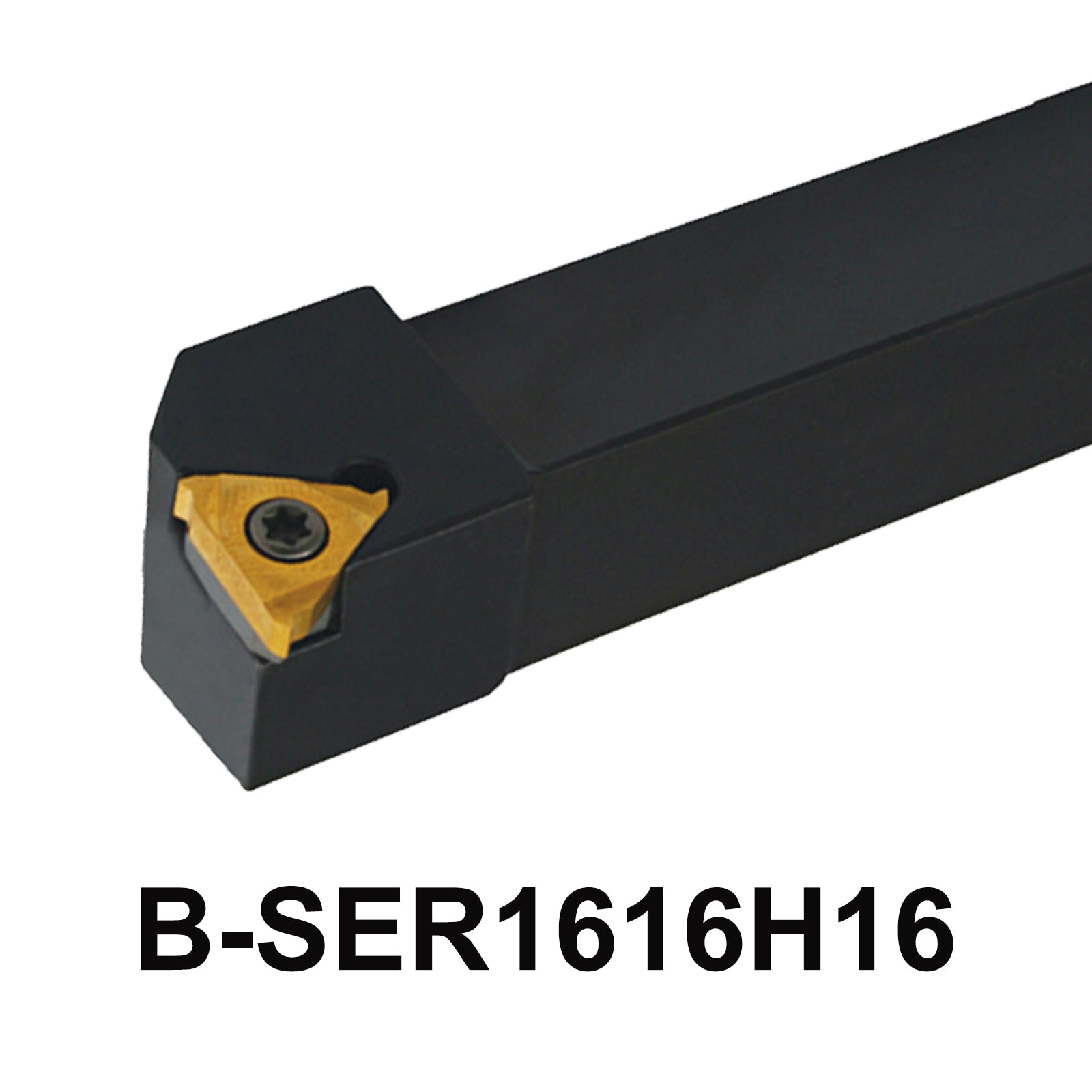

The B-SER1616H16 Thread Tool For Lathe  is designed to provide precision and durability for external threading operations on CNC lathes

Featuring a 100mm length and 16mm body width, it is optimized for use with 16ER inserts.The tool holder's right-cut cutting direction and side length of 16mm triangle blade ensure smooth and accurate thread cutting.

Product parameters:

• Tool Holder Model: B-SER1616H16

• Tool Holder Material : Carbide Steel, Carbon Steel

• Model of Pressing plate :  Screw compession type
• Thread form : External thread
• Cutting direction : Right cut
• Height of tool nose : 16mm
• Width of body of cutting tool : 16mm
• Length of cutting tool : 100mm
• Size of blade :
• 1.Side length of traingle : 16mm
• 2.Incircle : 9.525mm
• Applicable blade : 16R
• Shim : STM1603R
• Screw : M3.5*12
• Lateral screw : M3*8C
• Wrench : T15
• Detailed Dimensions of the tool holder : as pictured

Package Contents:

1 * B-SER1616H16 Thread Tool For Lathe

1 * STM1603R Shim

1 * "T" Type wrench

1 * M3.5*12 Type Screw

1 *  M3*8C Lateral screw

Features:

1.High-Quality Construction,ensures longevity and reliability

2.Unparalleled performance and tight tolerances

3.High grip, strong impact resistance, obvious speed advantage

4.Designed for precise threading, ideal for complex machining tasks

5.The user can easily clamp and replace the blade and gasket with just a wrench

BEYOND  B-SER1616H16 External Threading Turning Tools Holder B-SER1616H16  B SER1616 H16 CNC Cutter Lathe Shank Carbide Insert

Durable and Reliable CNC Lathe Threading Tool Holder for External Threads

B-SER1616H16 Tool Holder – Versatile, High-Performance Solution for Precision Thread Cutting

5-Point Description

1. Precision Right-Cut Design: The B-SER1616H16 CNC lathe tool holder features a right-hand cutting direction, ensuring superior performance for external threading applications. It is ideal for achieving high-precision threads with ease.

2. Sturdy and Durable Build: With a tool nose height of 16mm and a body width of 16mm, this tool holder is built for stability and strength, ensuring a longer lifespan and better tool performance under demanding machining conditions.

3. Comprehensive Package: This tool holder kit includes the necessary shim (STM1603R), screws (M3.512), lateral screw (M38C), and a T15 wrench for quick and easy installation, making it an all-in-one solution for professionals.

4. Wide Compatibility: Designed for use with 16ER inserts, this tool holder provides versatile compatibility for various external threading tasks, making it an excellent choice for a wide range of machining needs.

5. Efficient and Easy to Use: Perfect for professionals seeking efficiency, this tool holder offers smooth and precise threading cuts, enhancing productivity and reducing downtime in CNC lathe operations.
