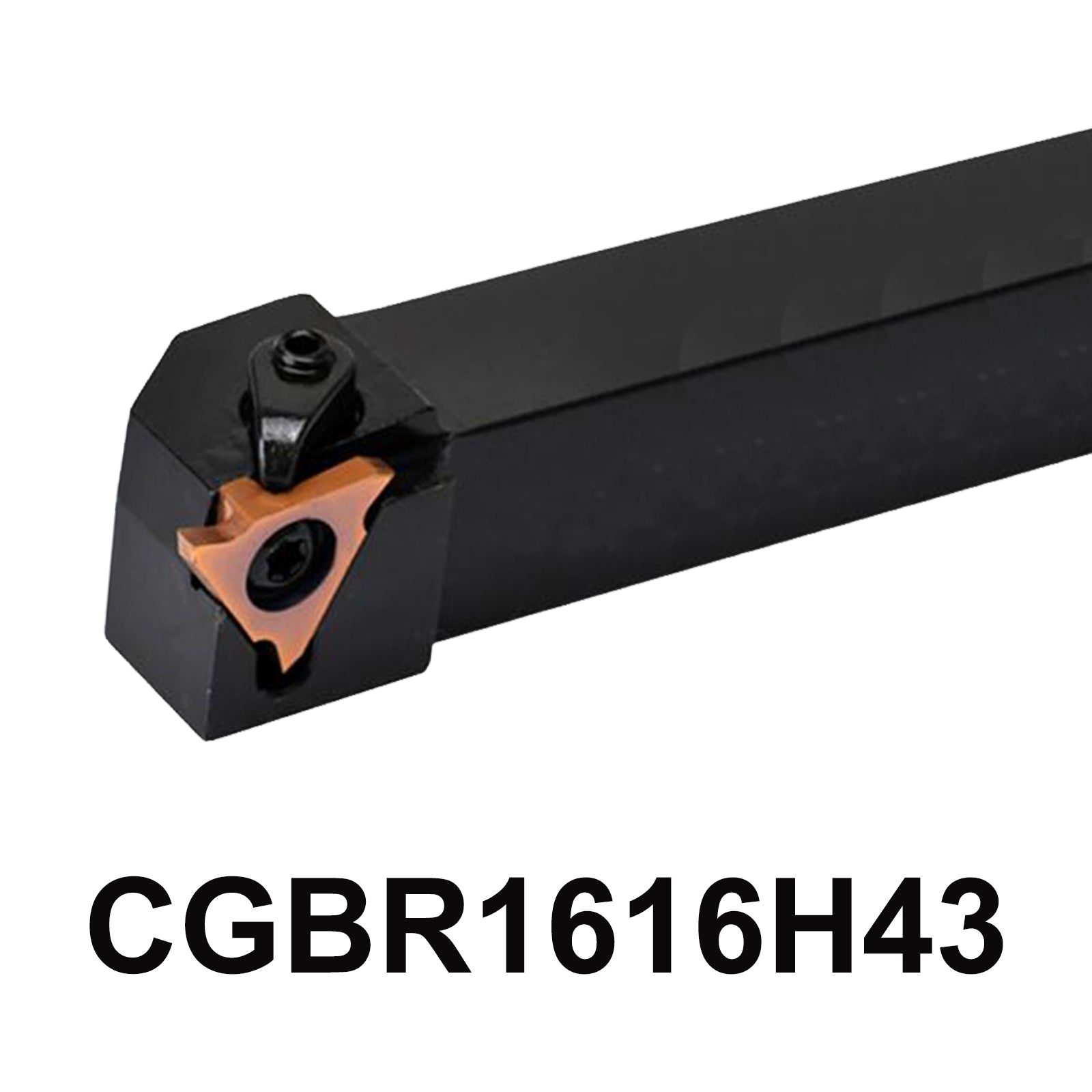

CGBR1616H43 CGBR 1616H43 Grooving Lathe Tool Holder – Precision & Versatility
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The CGBR1616H43 Grooving Lathe Tool Holder is engineered for precision and efficiency in CNC machining.
With a tool holder size of 16mm x 16mm x 100mm and a cutting width of 0.5-2.5mm ,Compatible with BG32R insert
Product parameters:
-
Tool Holder Model: CGBR1616H43
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 16 * 16 * 100 mm
-
Cutting Width : About 0.5-2.5 mm
-
Applicable blade : GB32R
- Clamp : HL1808
-
Screw : M3.5*10 ML0520
- Stud Screw : ML0520
- Wrench : T15 L2.5

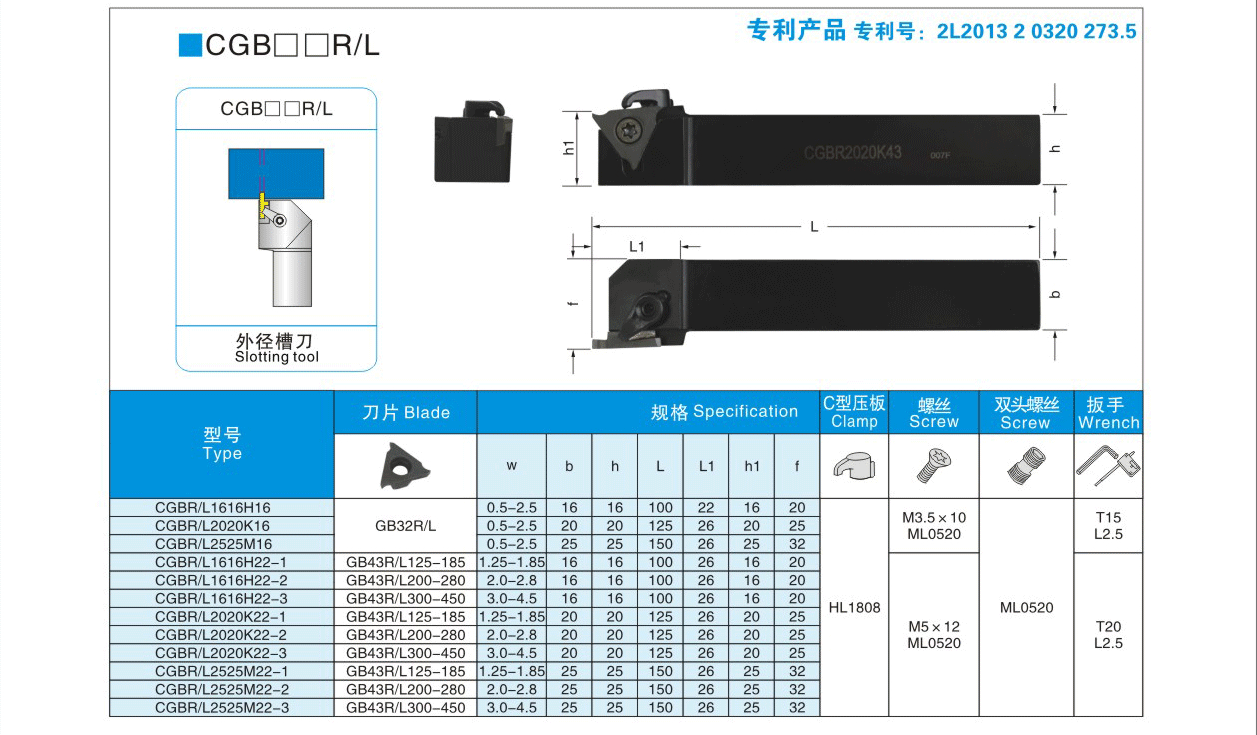

- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * CGBR1616H43 Lathe Grooving Turning Tool Holder
1 * "L" Type wrench
1 * "T" Type wrench
1 * M3.5*10 Type Screw
1 * ML0520 Type Stud Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND CGBR1616H43 External Grooving Turning Tools CGBR1616H43 CGBR1616 CGBR1616 H43 CNC Lathe Cutter Holder Grooving Lathe Tool Holder
Achieve Unmatched Precision with the CGBR1616H43
Upgrade Your Machining Capabilities Today
5-Point Description
-
Versatile Cutting Width: Featuring a cutting width range of 0.5-2.5mm, the CGBR1616H43 is perfect for diverse machining tasks, allowing for fine adjustments to suit your specific needs.
-
Comprehensive Package: This tool holder comes with all necessary components, including a sturdy clamp (HL1808), screws (M3.5*10), a stud screw (ML0520), and a T20 wrench, ensuring you have everything needed for efficient setup.
-
High-Quality Construction: Crafted from premium materials, the CGBR1616H43 Grooving Lathe Tool Holder is built to withstand the rigors of CNC machining, promising durability and long-lasting performance.
-
Compact Design: With dimensions of 16x16x100mm, this tool holder is designed for ease of use and compatibility with a variety of machines, making it a practical choice for any workshop.
-
Compatible Inserts: Specifically designed for use with GB32R inserts, this tool holder maximizes cutting efficiency and precision, ensuring optimal results with every use.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
