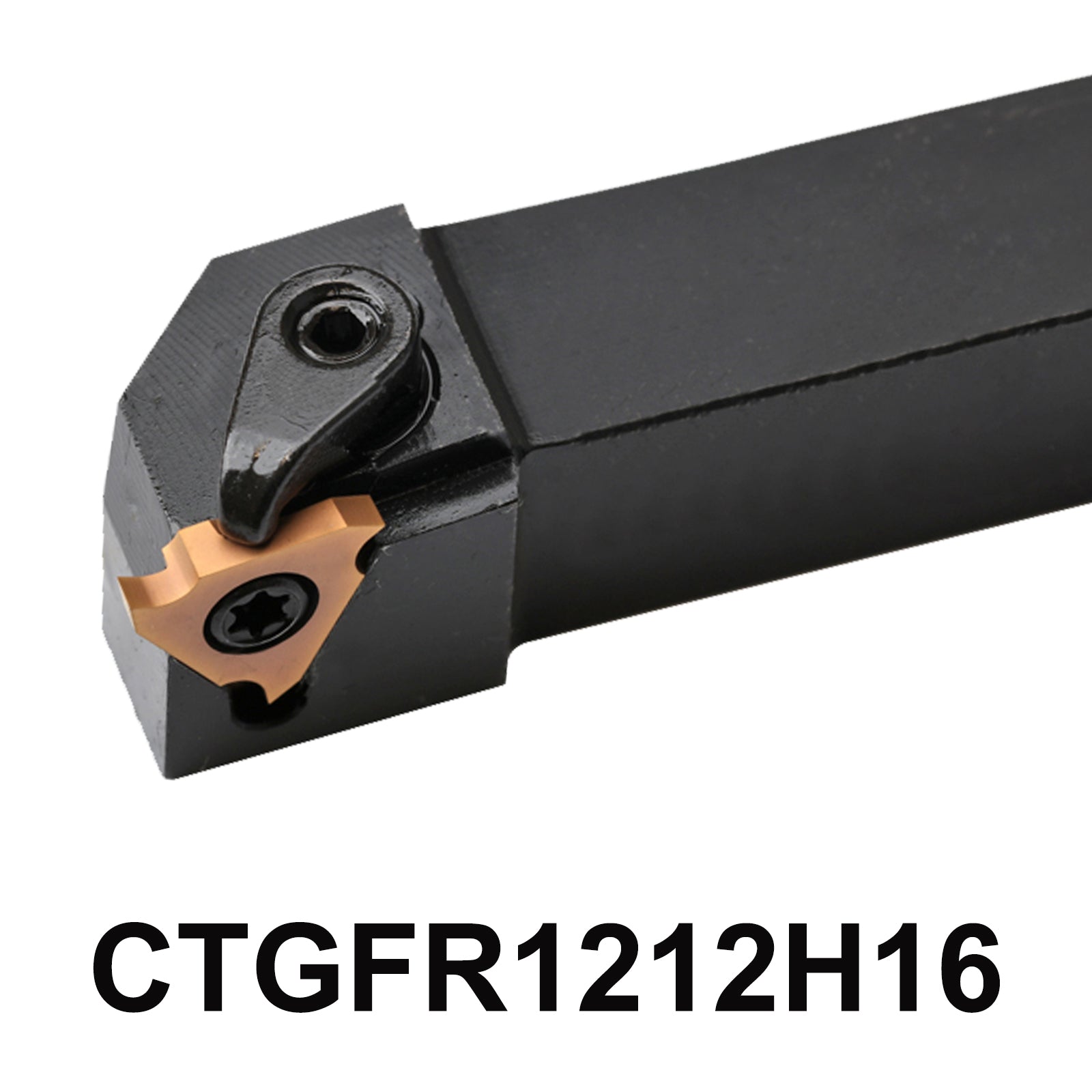

Shop CTGFR1212H16 Grooving Cutting Holder – High-Quality CNC Lathe Tool
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
CTGFR1212H16 Grooving Cutting Holder, a precision-engineered tool designed to elevate your CNC lathe machining experience.
With a tool holder size of 12mm x 12mm x 100mm and a cutting width of 0.75-3.0mm ,Compatible with TGF32R insert
Product parameters:
-
Tool Holder Model: CTGFR1212H16
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 12 * 12 * 100 mm
-
Cutting Width : About 0.75-3.0 mm
-
Applicable blade : TGF32R
- Clamp : HL1808
-
Screw : M3.5*10
- Stud Screw : ML0520
- Wrench : T15 L2.5

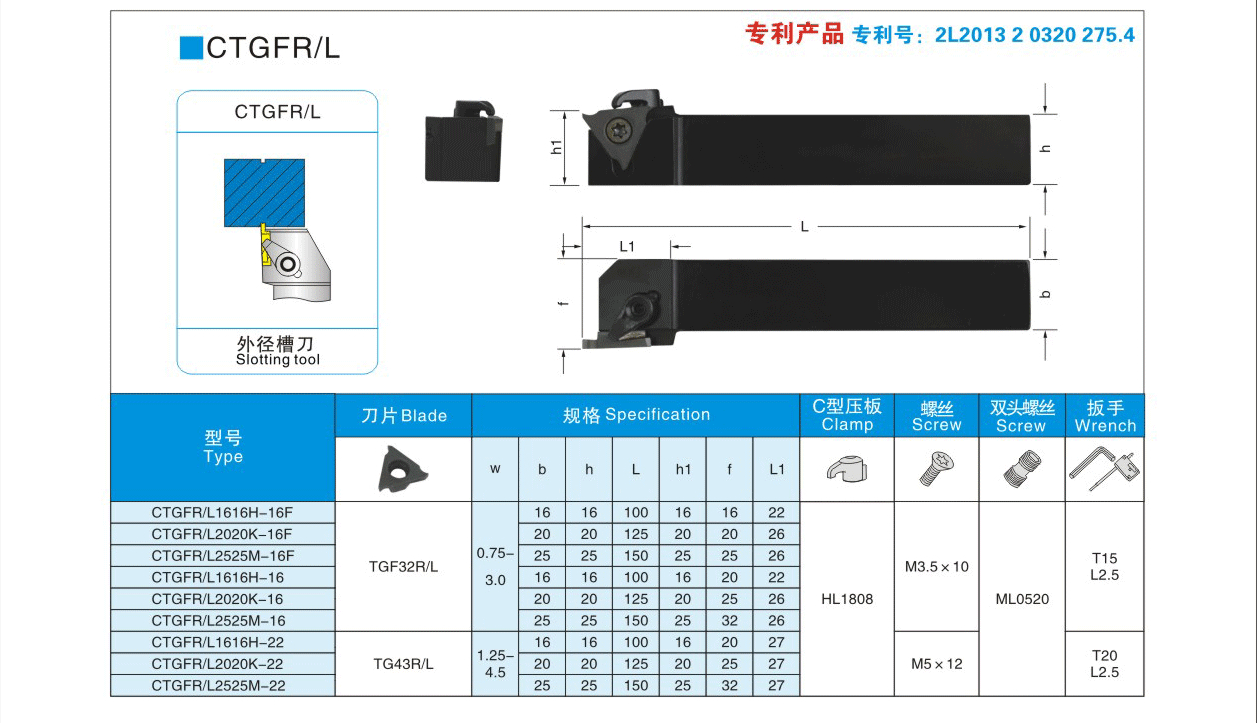

- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * CTGFR1212H16 Grooving Cutting Holder
1 * "L" Type wrench
1 * "T" Type wrench
1 * M3.5*10 Type Screw
1 * ML0520 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND CTGFR1212H16 Grooving Cutting Holder CTGFR1212H16 CTGFR1212 CTGFR1212 H16 CNC Lathe Cutter Holder Machine Metal Tool
Elevate Your Machining with the CTGFR1212H16 Tool Holder
Key Features of the CTGFR1212H16 Grooving Cutting Holder
5-Point Description
-
Compact Dimensions: Measuring 12mm x 12mm x 100mm, the CTGFR1212H16 is designed for stability and precision in tight machining spaces, allowing for effective grooving without compromise.
-
Adjustable Cutting Width: This tool holder features a versatile cutting width ranging from 0.75mm to 3.0mm, enabling you to tackle a variety of grooving tasks with ease and accuracy.
-
Comprehensive Accessory Package: The product includes the tool holder, HL1808 clamp, M3.5*10 screws, ML0520 stud screw, and a T15 L2.5 wrench, providing everything you need for seamless installation and operation.
-
Compatible Inserts: Designed to work with TGF32R inserts, this grooving holder enhances your machining capabilities, allowing for quick changes and improved workflow.
-
Durable Construction: Crafted from high-quality materials, the CTGFR1212H16 ensures long-lasting performance and reliability under demanding machining conditions, making it a smart investment for your toolkit.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
