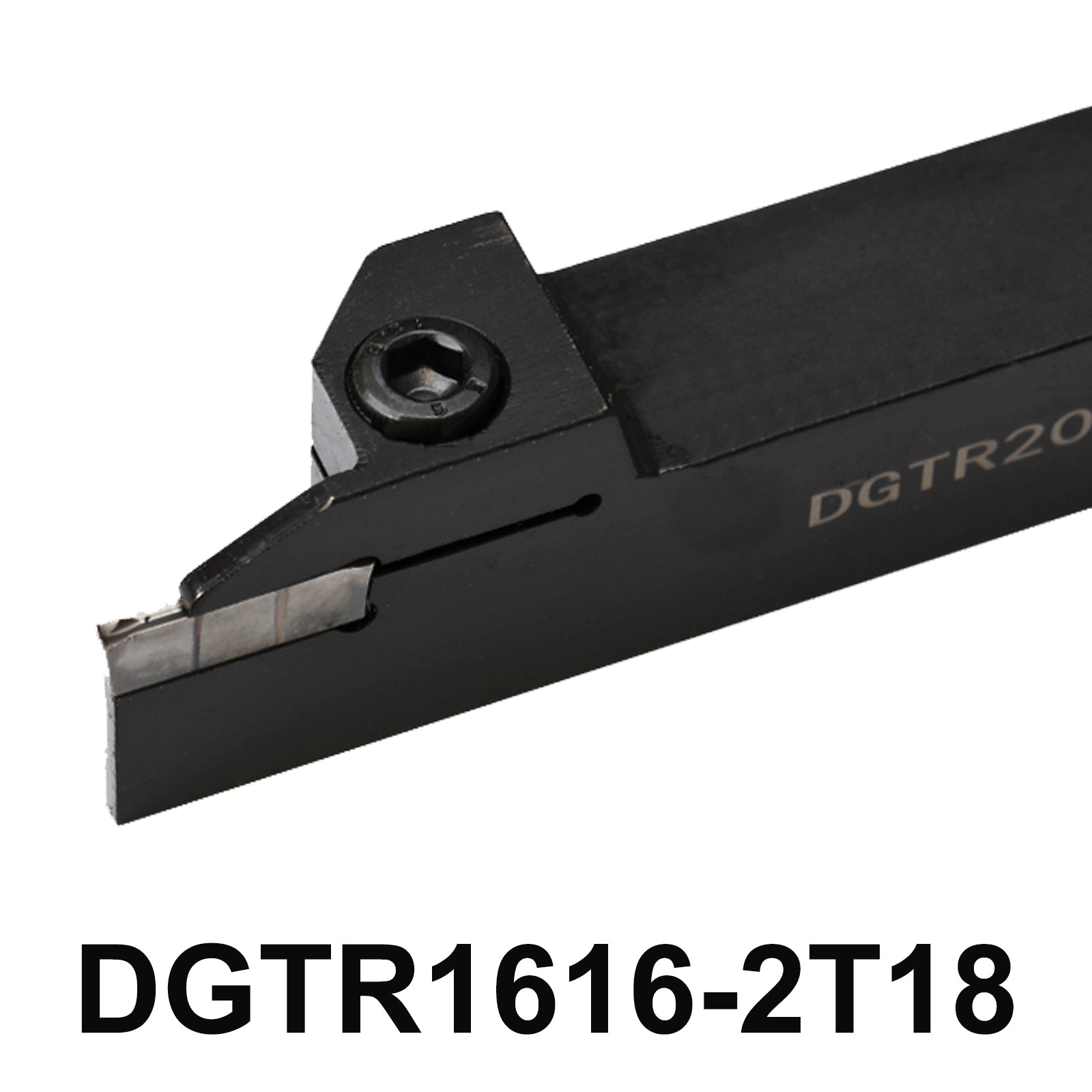

DGTR1616-2T18 External Grooving Tool Holder for CNC Lathes – 2mm Width, Compatible with DGN2202C Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The DGTR1616-2T18 External Grooving Tool Holder is a high-performance CNC tool designed for precision external grooving and turning operations.
Built to fit lathe sizes of 16mm x 16mm x 100mm, with a 2mm cutting width and a maximum depth (Tmax) of 18mm, this tool holder offers excellent cutting accuracy and reliability. The holder is compatible with DGN2202C inserts, ensuring superior performance in a variety of machining applications.
Product parameters:
-
Tool Holder Model: DGTR1616-2T18
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 16 * 16 * 100 mm
- Tmax : 18mm
-
Cutting Width : About 2 mm
-
Applicable blade : DGN2202C
- Screw : M5*20
- Wrench : L4

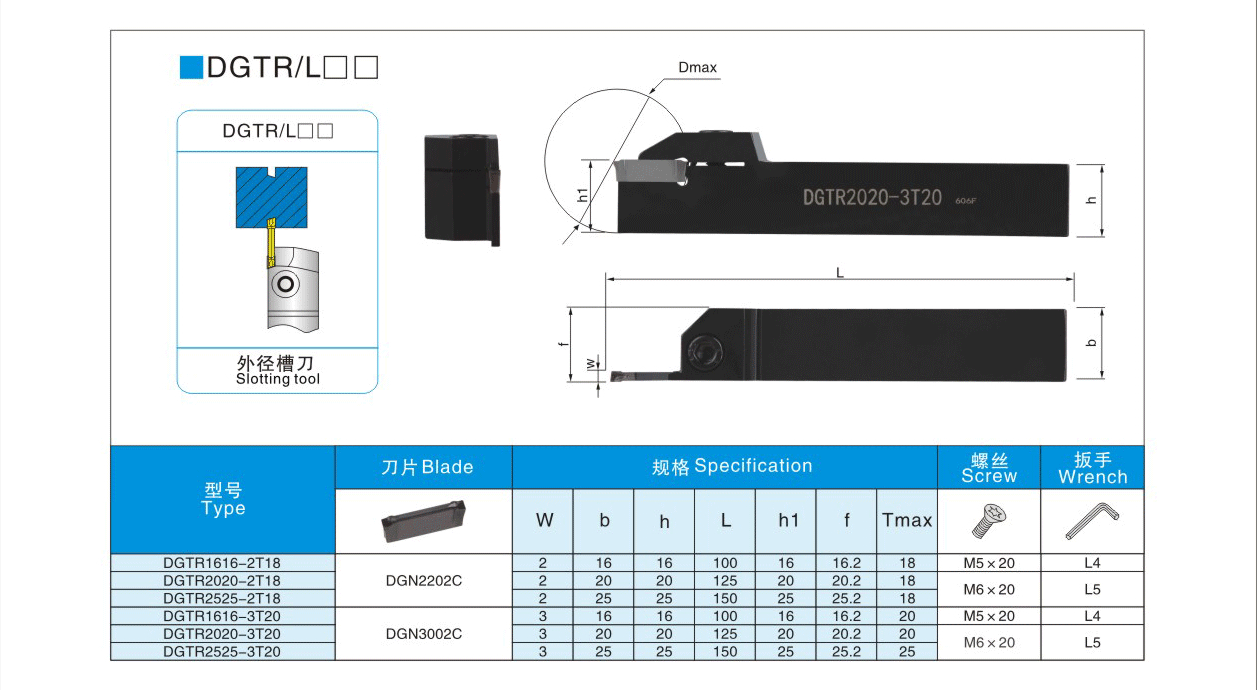

- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * DGTR1616-2T18 External Grooving Tool Holder
1 * "L" Type wrench
1 * M5*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND DGTR1616-2T18 External Grooving Tool Holder DGTR1616-2T18 DGTR 1616 DGTR1616 2T18 CNC Lathe Cutter Holder Machine Metal Tool
Key Features of the DGTR1616-2T18 CNC External Grooving Tool Holder
Why Choose the DGTR1616-2T18 for Your CNC Machining Needs?
5-Point Description
-
Compact and Precise Design: The DGTR1616-2T18 external grooving tool holder is designed for high-precision grooving with a 2mm cutting width and 18mm maximum depth (Tmax). Its compact 16mm x 16mm x 100mm size ensures optimal rigidity, perfect for high-accuracy CNC lathe operations.
-
Durable Construction for Heavy-Duty Use: Crafted from high-quality materials, this CNC tool holder guarantees excellent durability and resistance to wear and tear. It is ideal for high-volume and heavy-duty machining, ensuring long-term performance in demanding environments.
-
Easy Setup & Compatibility: The DGTR1616-2T18 comes with everything you need to get started: the tool holder, M5*20 screws, and an L4 wrench. It is designed for easy installation and integration, allowing you to quickly switch between different setups without hassle.
-
Versatile Insert Compatibility: Compatible with DGN2202C inserts, this tool holder is flexible enough to handle various materials, including metals and alloys, making it suitable for a wide range of CNC machining applications. Perfect for grooving, turning, and other precision operations.
-
High Performance for Professional Results: Whether you're working on small or large-scale CNC projects, the DGTR1616-2T18 guarantees smooth, precise cuts with minimal chatter. Its efficient design ensures clean grooves and smooth finishes, resulting in professional-quality work every time.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
