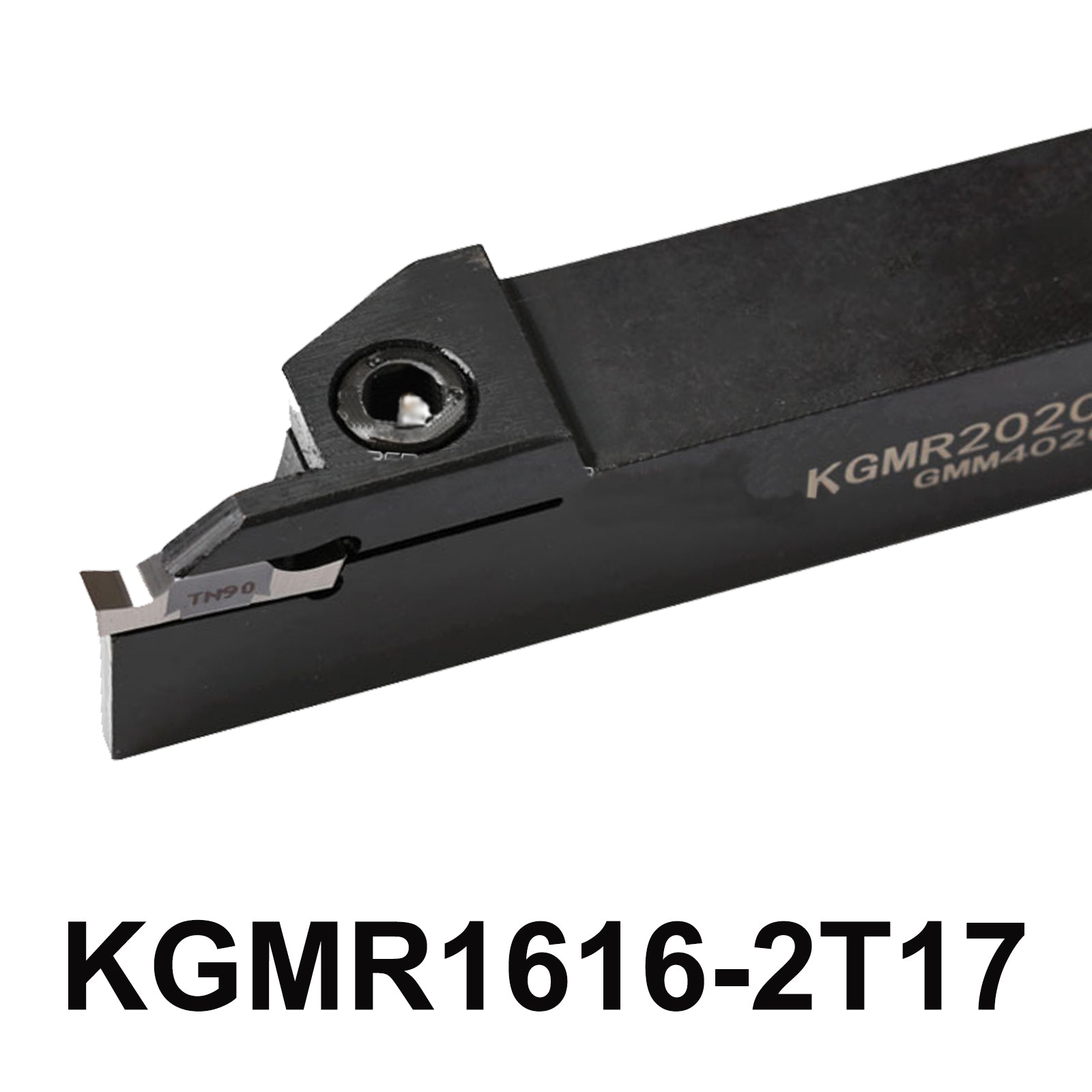

KGMR1616-2T17 External Grooving Tool Holder | High-Quality CNC Lathe Tool
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Introducing the KGMR1616-2T17 External Grooving Tool Holder, a premium solution for precision machining. With a compact lathe size of 16x16x100mm, this tool holder is engineered for durability and performance.
The package includes the tool holder, M5*16 screws and a L5 wrench, designed for compatibility with GMM2020-MT inserts.
Product parameters:
-
Tool Holder Model: KGMR1616-2T17 Spring steel Swiss type lathe
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Tool Holder Size : About 16 * 16 * 100 mm
- Cutting width: 2mm
- Dmax : 35mm
- Applicable blade : GMM2020-MT
-
Screw : M5*16
-
Wrench : L5
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * KGMR1616-2T17 External Grooving Tool Holder
1 * "L" Type wrench
1 * M5*16 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND KGMR1616-2T17 External Grooving Tool Holder KGMR1616-2T17 KGMR 1616 KGMR1616 2T17 CNC Lathe Cutter Holder Machine Metal Tool
-
Engineered for Excellence: The KGMR1616-2T17 Tool Holder
-
Key Features that Make the KGMR1616-2T17 Stand Out
5-Point Description
-
Compact and Robust Design: With a size of 16mm x 16mm x 100mm, the KGMR1616-2T17 is designed to provide stable support and maintain precision during grooving operations.
-
Perfect Cutting Width: The tool holder features a cutting width of 2mm and maximum depth of cut (Dmax) of 35mm, allowing for intricate machining tasks while ensuring smooth and consistent cuts.
-
Comprehensive Package: Each package comes with the tool holder, M5*16 screws, and an L5 wrench to facilitate quick and easy setup right out of the box.
-
High-Quality Spring Steel Construction: Crafted from premium Swiss-type spring steel, this tool holder is built for longevity and resistance to wear, ensuring you achieve superior results in all your machining endeavors.
-
Versatile Insert Compatibility: Optimized for use with GMM2020-MT and GMM2020R-MT inserts, the KGMR1616-2T17 provides flexibility across various materials, enhancing productivity and performance.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
