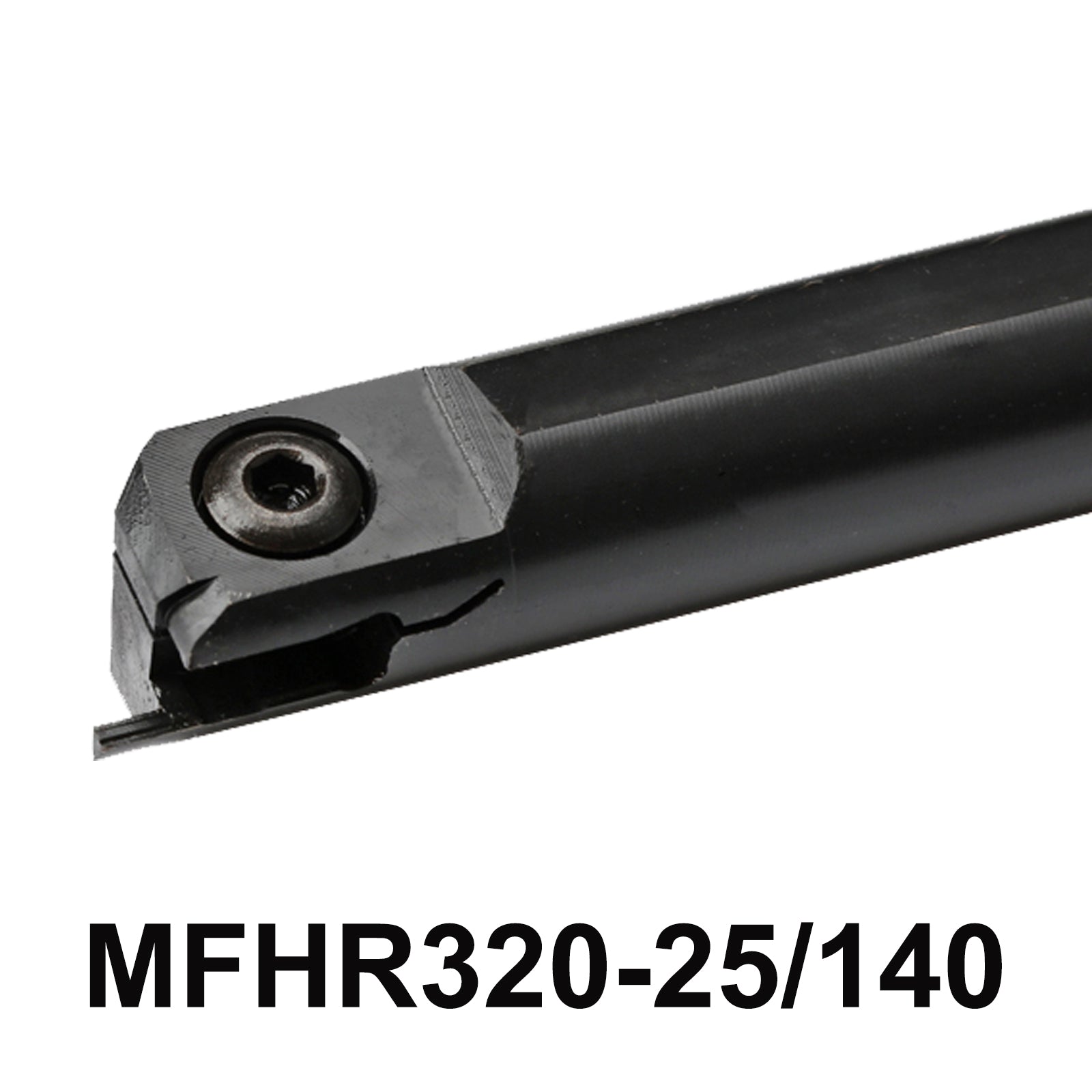

MFHR320-25/140 Grooving Turning Lathe Boring Bar Tool Holder for CNC - High-Quality, MGMN300 Compatible
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The MFHR320-25/140 Grooving Turning Lathe Boring Bar Tool Holder is designed to deliver superior performance in CNC lathe operations
With a maximum cutting depth of 140mm and 20mm shank diameter, it is ideal for handling both shallow and deep grooves with ease Compatible with MGMN300 inserts, this tool holder offers exceptional cutting stability, efficiency, and durability.
Product parameters:
-
Tool Holder Model: MFHR320-25/140
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Total length : 180mm
- Shank : 20mm
- Dmin : 21mm
- Min : 25mm
- Max : 140mm
-
Applicable blade : MGMN300
-
Screw : M6*15C
- Wrench : L4
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * MFHR320-25/140 Grooving Turning Lathe Boring Bar Tool Holder
1 * "L" Type wrench
1 * M6*15C Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND MFHR320-25/140 Grooving Turning Lathe Boring Bar Tool Holder MFHR320-25/140 MFHR320 MFHR320 25/140 CNC Lathe Cutter Slotting Holder
-
High-Quality CNC Lathe Tool Holder with MGMN300 Inserts – Perfect for Grooving & Boring Applications
-
Durable MFHR320-25/140 Tool Holder for Precision Grooving and Turning – Extended Tool Life
5-Point Description
-
Versatile & High-Precision: The MFHR320-25/140 tool holder is designed for grooving, turning, and boring operations, offering superior versatility and precision in CNC machining.
-
Premium Construction: Made from high-quality materials with a durable, wear-resistant coating, this tool holder provides long-lasting performance and ensures minimal tool wear, even under heavy-duty use.
-
Optimized for MGMN300 Inserts: This tool holder is perfectly compatible with MGMN300 inserts, providing efficient cutting performance, smooth finishes, and extended tool life for both light and heavy machining applications.
-
Efficient Boring & Grooving: With a total length of 180mm and a maximum reach of 140mm, this tool holder is ideal for a wide range of boring and grooving operations, offering a flexible solution for various machining needs.
-
Complete Package Included: The MFHR320-25/140 comes with the tool holder, M6x15 screws, and an L4 wrench, making it ready for immediate use and ensuring hassle-free setup in your CNC lathe.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
