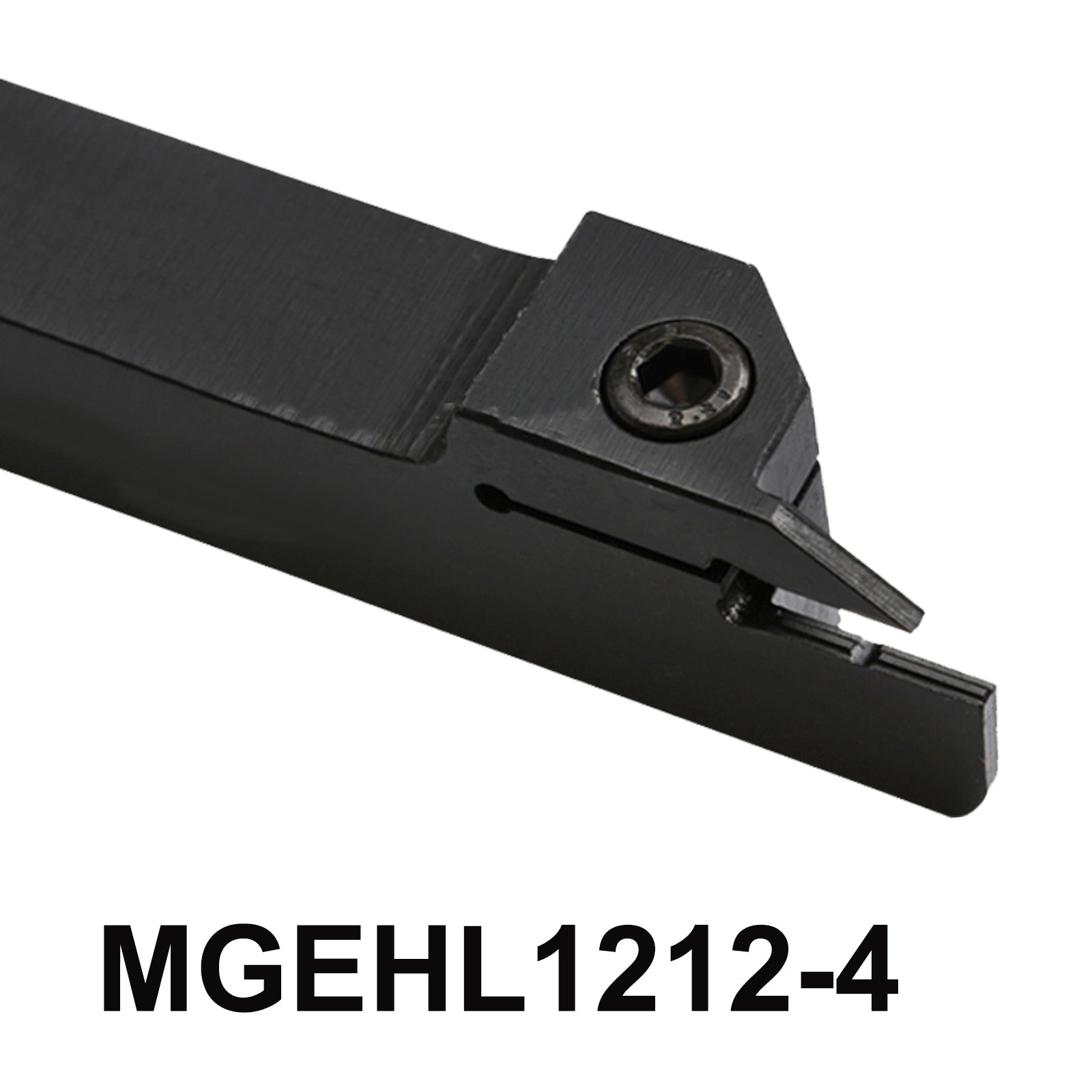

MGEHL1212-4 Slotting Tool Holder | High-Quality CNC Lathe Cutter Holder
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
MGEHL1212-4 Slotting Tool Holder , a precision-engineered CNC lathe cutter holder that delivers superior performance for slot cutting applications.
With a tool holder size of 12mm x 12mm x 100mm and a cutting width of 4mm ,Compatible with inserts such as MGMN400-M, MGGN400-M, and MRMN400-M
Product parameters:
-
Tool Holder Model: MGEHL1212-4
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 12 * 12 * 100 mm
-
Cutting Width : About 4 mm
-
Applicable blade : MGMN400-M MGGN400-M MRMN400-M
-
Screw : M4*16
- Wrench : L3
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * MGEHL1212-4 Slotting Tool Holder
1 * "L" Type wrench
1 * M4*16 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND MGEHL1212-4 External Grooving Turning Tools MGEHL1212-4 MGEHL 1212 Slotting Tool Holder MGEHL1212 4 CNC Lathe Cutter Holder Machine Metal Tool
-
Unlock Efficient Slot Cutting with the MGEHL1212-4 Tool Holder
-
Precision design enables fine groove cutting
-
Providing flexibility and performance across different materials and cutting tasks.
5-Point Description
-
Accurate Slot Cutting: The MGEHL1212-4 Slotting Tool Holder delivers precise slot cutting with its optimized dimensions, ensuring superior machining results.
-
All-Inclusive Kit: Each package includes an M4*16 screw and a L3 wrench, providing everything you need for a straightforward installation.
-
Insert Versatility: Compatible with multiple inserts (MGMN400-M, MGGN400-M, MRMN400-M), this tool holder adapts to various materials, enhancing your machining options.
-
Durable and Reliable: Made from high-quality materials, the MGEHL1212-4 Slotting Tool Holder is built to withstand rigorous machining processes, ensuring long-term reliability.
-
Quick Setup: Designed for easy installation, this tool holder minimizes downtime and maximizes productivity in your CNC operations.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
