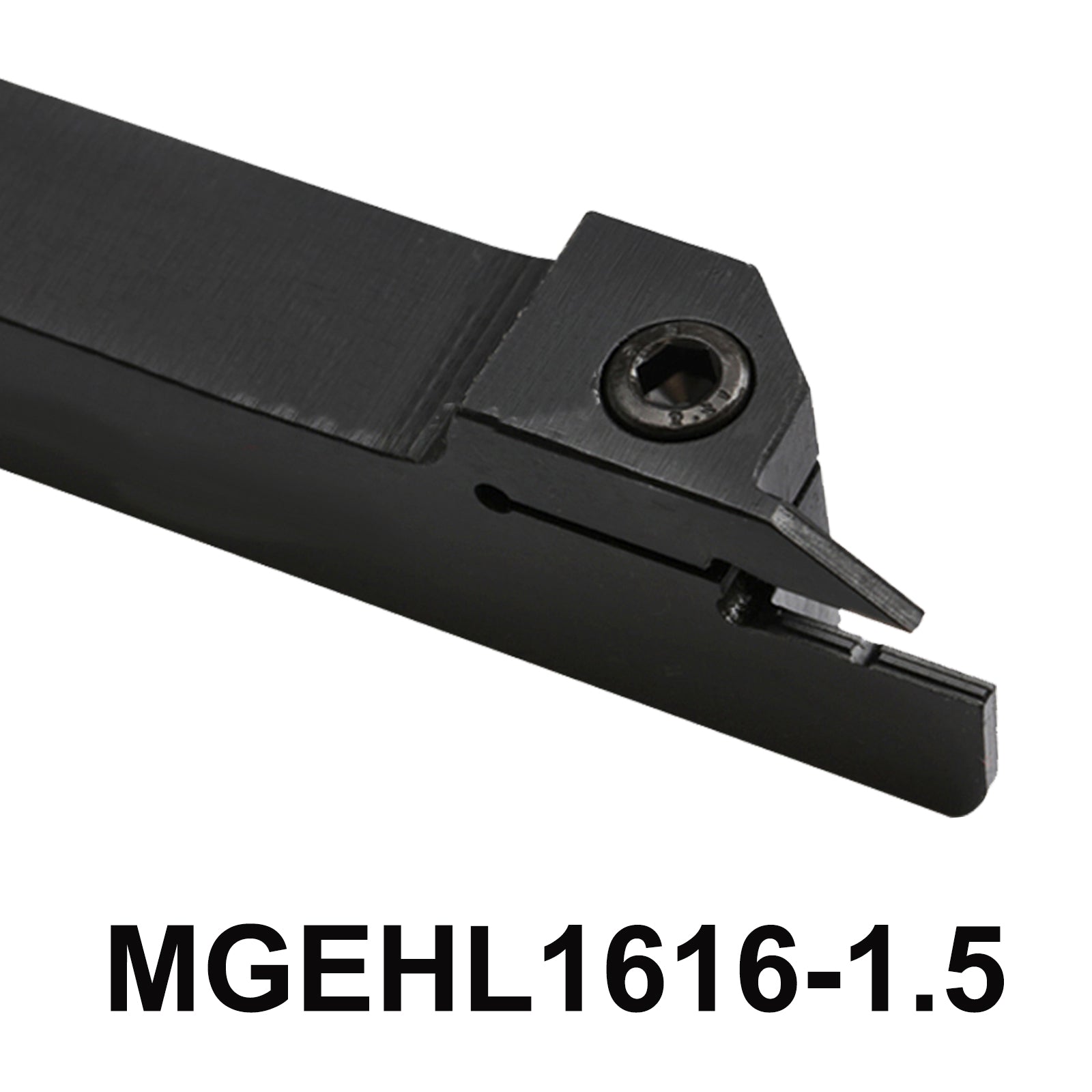

MGEHL1616-1.5 Outer Grooving Tool Holder – Premium CNC Lathe Cutter Holder
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The MGEHL1616-1.5 Outer Grooving Tool Holder is a high-quality external grooving and slotting tool designed for precision machining with CNC lathes.
Compatible with MGMN150-M inserts, With a cutting width of 1.5mm and a compact size of 16*16*100mm.
Product parameters:
-
Tool Holder Model: MGEHL1616-1.5
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 16 * 16 * 100 mm
-
Cutting Width : About 1.5 mm
-
Applicable blade : MGMN150-M
-
Screw : M5*20
- Wrench : L4
- Detailed Dimensions of the tool holder :as pictured
Package Contents:
1 * MGEHL1616-1.5 Outer Grooving Tool Holder
1 * "L" Type wrench
1 * M5*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND MGEHL1616-1.5 Outer Grooving Tool Holder MGEHL1616-1.5 MGEHL 1616 MGEHL1616 1.5 CNC Lathe Cutter Holder Machine Metal Tool
Achieve Perfect Grooves with the MGEHL1616-1.5 Outer Grooving Tool Holder
Key Features of the MGEHL1616-1.5 Outer Grooving Tool Holderl
5-Point Description
-
Optimal Dimensions: Designed with a robust size of 16mm x 16mm x 100mm, the MGEHL1616-1.5 tool holder is engineered for strength and stability, ensuring consistent performance in grooving operations.
-
Precise Cutting Width: With a cutting width of 1.5mm, this tool holder is perfect for intricate grooving tasks, providing the precision needed for high-quality finishes on various materials.
-
Comprehensive Package: The MGEHL1616-1.5 Outer Grooving Tool Holder package includes the tool holder, M5*20 screws, and an L4 wrench, ensuring you have everything you need for easy setup and operation right out of the box.
-
Compatible Inserts: Specifically designed for use with MGMN150-M inserts, this tool holder enhances versatility, allowing you to tackle a wide range of machining applications with confidence.
-
High-Quality Construction: Crafted from premium materials, the MGEHL1616-1.5 is a durable and reliable choice for CNC lathes, ensuring long-lasting performance in demanding machining environments.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
