MGEHL1616-2 MGEHL 1616-2 Grooving Cutting Metal – Enhance Your CNC Machining Efficiency
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:

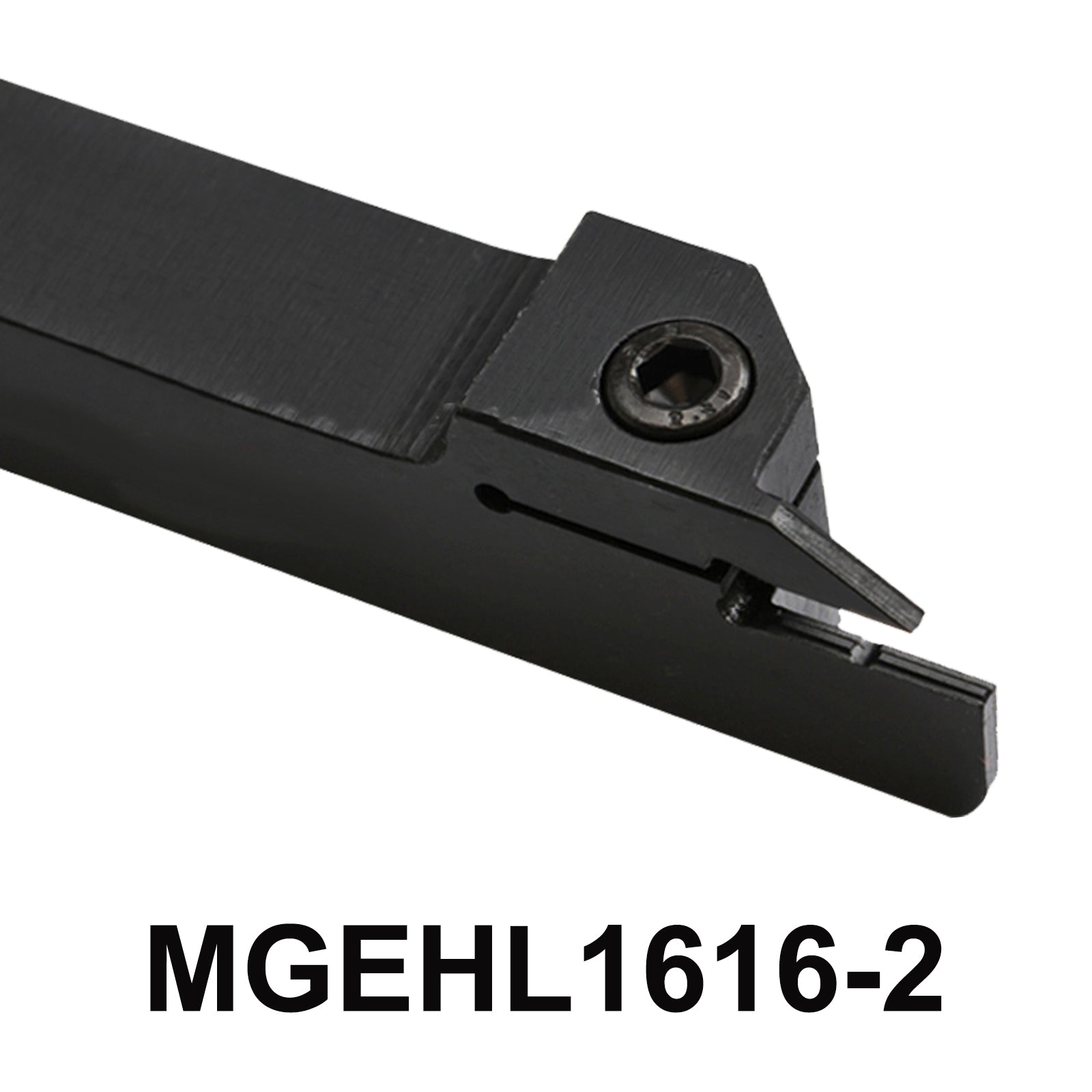

The MGEHL1616-2 External Grooving Turning Tool, an essential component for precision machining.
With a compact lathe size of 16x16x100mm and a cutting width of 2mm, compatible with MGMN200-M inserts
Product parameters:
-
Tool Holder Model: MGEHL1616-2
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 16 * 16 * 100 mm
-
Cutting Width : About 2 mm
-
Applicable blade : MGMN200-M
-
Screw : M5*20
- Wrench : L4
- Detailed Dimensions of the tool holder :as pictured
Package Contents:
1 * MGEHL1616-2 holder
1 * "L" Type wrench
1 * M5*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND MGEHL1616-2 External Grooving Turning Tools MGEHL1616-2 MGEHL 1616 MGEHL1616 2 CNC Lathe Cutter Holder Machine Metal Tool
-
Unleash Your Machining Potential with the MGEHL1616-2 Grooving Cutter Holder
-
Essential Features of the MGEHL1616-2 Grooving Cutter Holder
5-Point Description
-
Robust Lathe Dimensions: Measuring 16mm x 16mm x 100mm, the MGEHL1616-2 is built for stability and durability, making it an ideal choice for demanding grooving applications in CNC machining.
-
Versatile Cutting Width: With a cutting width of 2mm, this cutter holder offers the flexibility to create precise grooves, enhancing your ability to perform intricate machining tasks with ease.
-
All-Inclusive Package: The MGEHL1616-2 comes complete with a high-quality tool holder, M5*20 screws, and an L4 wrench, providing everything you need for straightforward installation and operation right out of the box.
-
Compatible with MGMN200-M Inserts: Designed specifically for MGMN200-M inserts, this grooving cutter holder maximizes your machining capabilities, allowing you to work on various materials effectively.
-
Premium Quality Construction: Crafted from high-grade materials, the MGEHL1616-2 ensures longevity and reliable performance, making it a valuable addition to your CNC tooling collection.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
