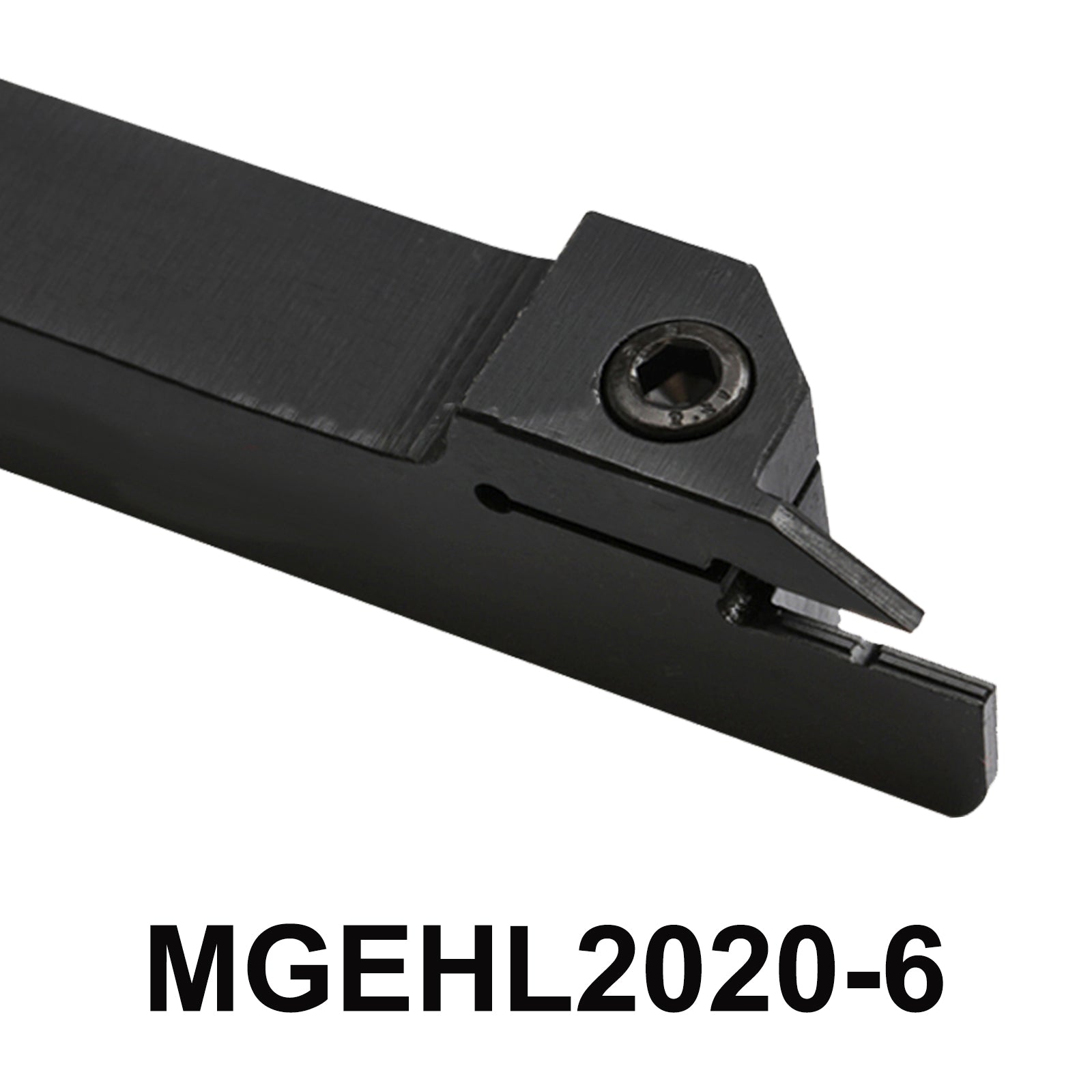

Shop MGEHL2020-6 CNC Lathe Grooving Tool Holder – High-Performance CNC Cutter
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
MGEHL2020-6 CNC Lathe Grooving Tool Holder , a precision-engineered CNC lathe cutter holder that delivers superior performance for slot cutting applications.
With a tool holder size of 20mm x 20mm x 125mm and a cutting width of 6mm ,Compatible with inserts such as MGMN600-M, MGGN600-M, and MRMN600-M
Product parameters:
-
Tool Holder Model: MGEHL2020-6
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 20 * 20 * 125 mm
-
Cutting Width : About 6 mm
-
Applicable blade : MGMN600-M MGGN600-M MRMN600-M
-
Screw : M6*20
- Wrench : L5
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * MGEHL2020-6 CNC Lathe Grooving Tool Holder
1 * "L" Type wrench
1 * M6*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND MGEHL2020-6 External Grooving Turning Tools MGEHL2020-6 MGEHL 2020 MGEHL2020 6 CNC Lathe Grooving Tool Holder Metal Tool
-
Transform Your CNC Machining with Our Premium Outer Grooving Tool Holder
-
Key Features and Advantages of the MGEHL2020-6 Tool Holder
5-Point Description
-
Robust Build Quality: Constructed from high-grade materials, the MGEHL2020-6 tool holder ensures durability and reliability, making it ideal for both professional and hobbyist machinists.
-
Versatile Compatibility: This tool holder is compatible with MGMN600-M, MGGN600-M, and MRMN600-M inserts, providing flexibility for a variety of machining applications and materials.
-
Effortless Setup: The package includes everything you need—M6*20 screws and a L5 wrench—allowing for quick installation and adjustments without the hassle.
-
Optimal Performance: With a cutting width of 6mm and a size of 20*20*125mm, this tool holder is perfect for achieving clean and precise grooves, enhancing the quality of your machining work.
-
Professional Quality: Designed with precision engineering in mind, the MGEHR2020-6 tool holder delivers consistent performance, making it a trusted choice for machinists looking to elevate their craft.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
