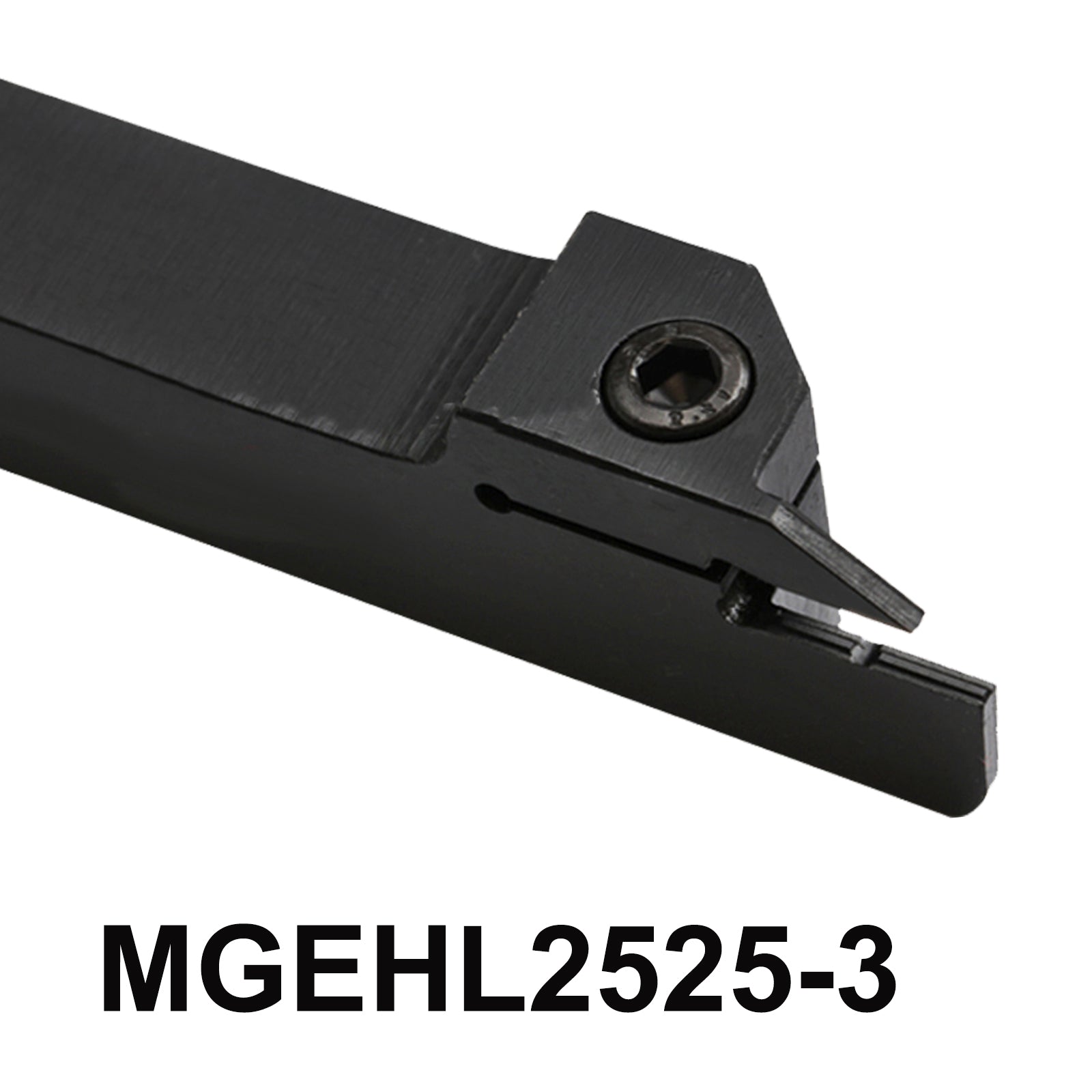

MGEHL2525-3 MGEHL 2525-3 Grooving Tool Holder - High-Quality CNC Cutter
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The MGEHL2525-3 Grooving Tool Holder is a precision-engineered tool designed to enhance your CNC machining capabilities.
With a compact size of 25x25x150mm and a cutting width of 3mm, Compatible with MGMN300-M MGGN300-M MRMN300-M blades.
Product parameters:
-
Tool Holder Model: MGEHL2525-3
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 25 * 25 * 150 mm
-
Cutting Width : About 3 mm
-
Applicable blade : MGMN300-M MGGN300-M MRMN300-M
-
Screw : M6*20
- Wrench : L5

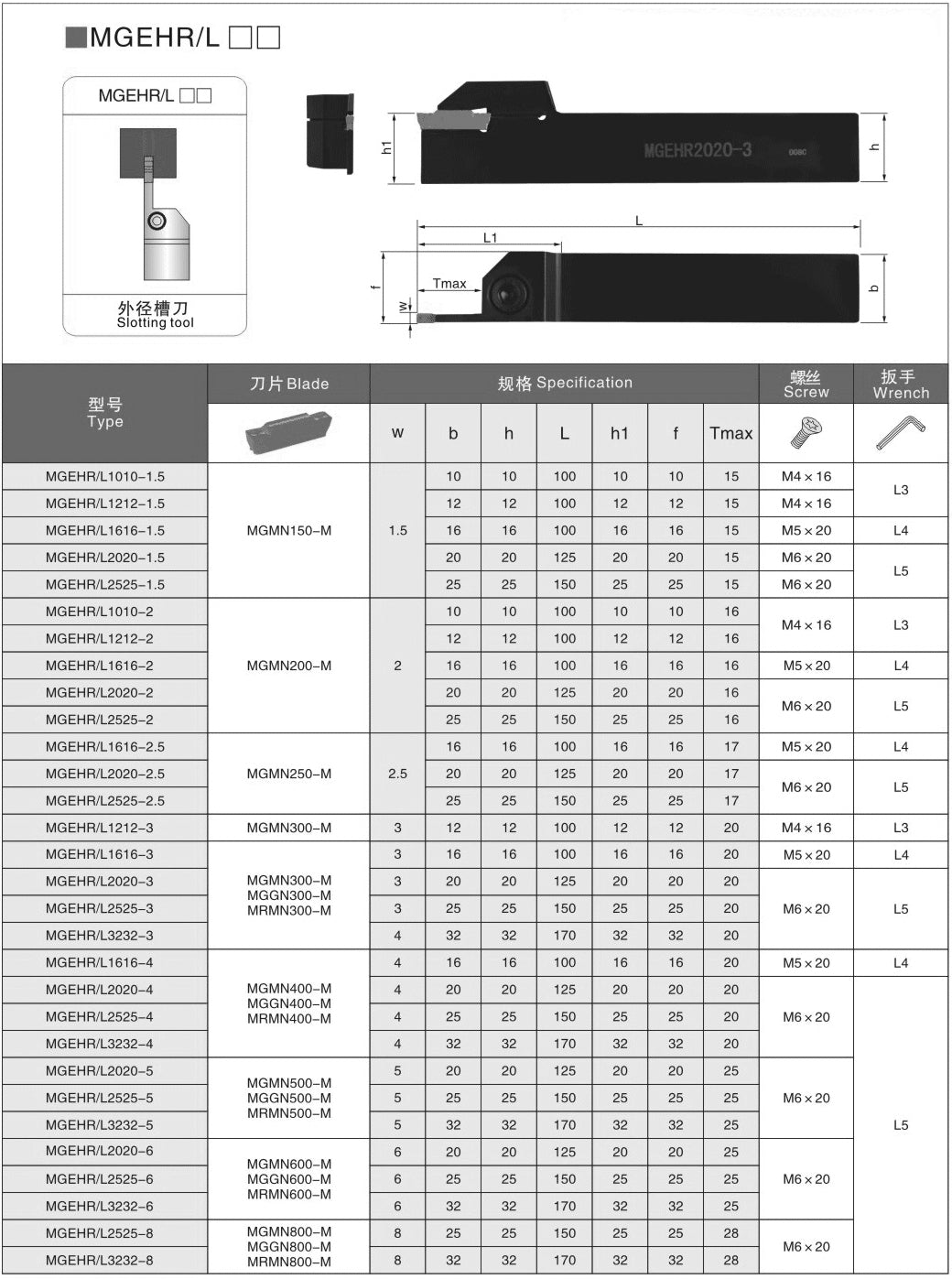

- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * MGEHL2525-3 Grooving Tool Holder
1 * "L" Type wrench
1 * M6*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND MGEHL2525-3 Grooving Tool Holder MGEHL2525-3 MGEHR 2525 MGEHL2525-3 CNC Lathe Cutter Holder Machine Metal Tool MGMN300-M MGGN300-M MRMN300-M
-
Unlock Your CNC Potential with the MGEHL2525-3 Grooving Tool Holder
-
Essential Features of the MGEHR2525-3 Tool Holder
-
Why Choose the MGEHL2525-3 for Your Machining Needs?
-
Perfect Cutting Width for Diverse Applications
-
Comprehensive Tool Package for Easy Setup
-
Durable Design Ensures Long-Lasting Reliability
5-Point Description
-
Enhanced Precision for Grooving: With a cutting width of 3mm, the MGEHL2525-3 Grooving Tool Holder delivers superior accuracy for all your grooving and turning applications.
-
Optimal Size for Versatile Use: Measuring 25x25x150mm, this tool holder fits a variety of CNC lathes, making it suitable for different machining tasks across industries.
-
Complete Installation Kit Included: The package comes with M6x20 screws and an L5 wrench, ensuring a hassle-free setup so you can focus on your work without delay.
-
Wide Compatibility with Inserts: Designed to work with MGMN300-M, MGGN300-M, and MRMN300-M inserts, this tool holder provides flexibility for various cutting needs.
-
Built to Last: Constructed from high-quality materials, the MGEHL2525-3 Grooving Tool Holder is engineered for durability and reliability, ensuring it can withstand the rigors of continuous use in demanding environments.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
