Buy MGEHL3232-8 Outer Grooving Tool Holder – Precision Engineering Tool
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:

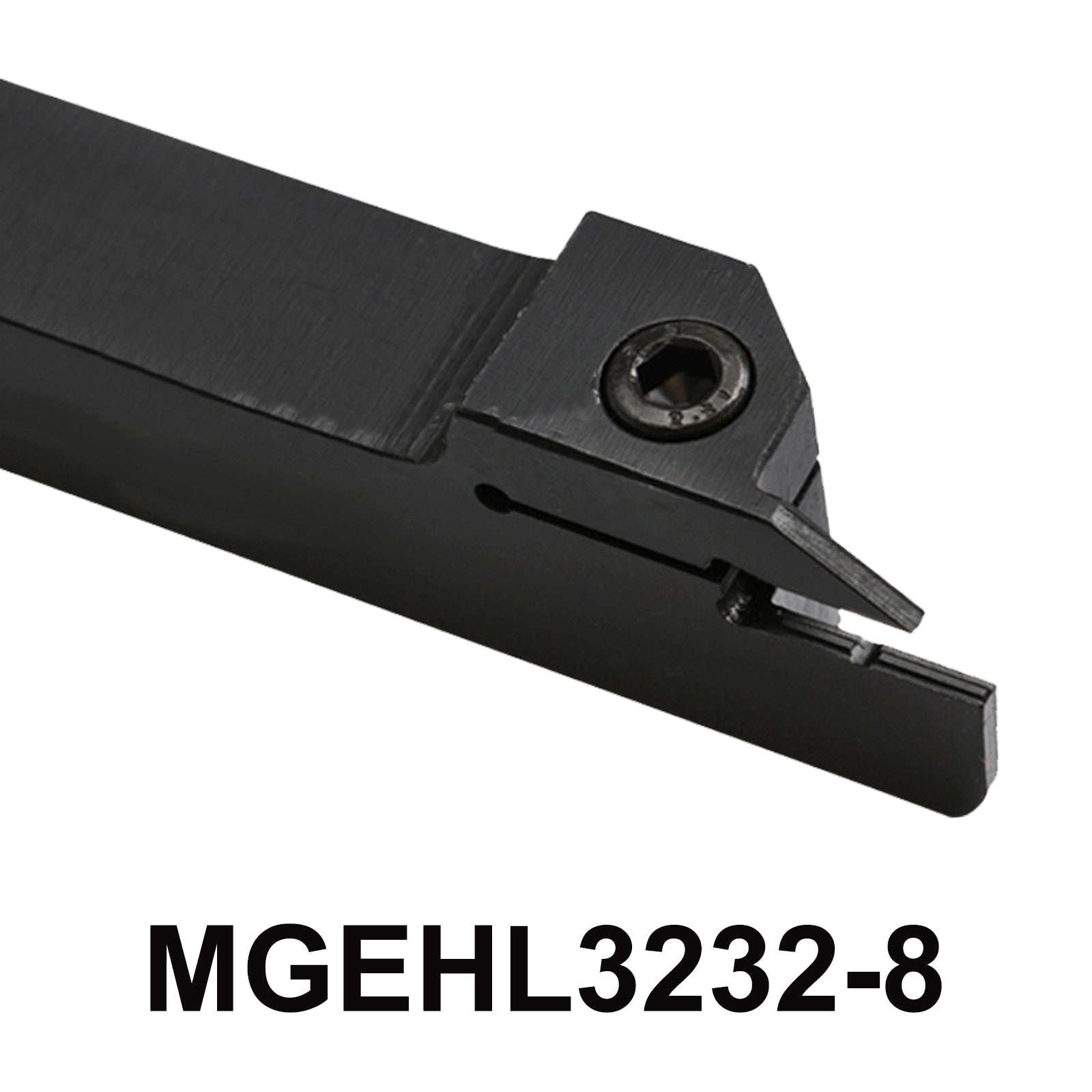

MGEHL3232-8 Outer Grooving Tool Holder , a precision-engineered CNC lathe cutter holder that delivers superior performance for slot cutting applications.
With a tool holder size of 32mm x 32mm x 170mm and a cutting width of 8mm ,Compatible with inserts such as MGMN800-M, MGGN800-M, and MRMN800-M
Product parameters:
-
Tool Holder Model: MGEHL3232-8
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 32 * 32 * 170 mm
-
Cutting Width : About 8 mm
-
Applicable blade : MGMN800-M MGGN800-M MRMN800-M
-
Screw : M6*20
- Wrench : L5
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * MGEHL3232-8 Outer Grooving Tool Holder
1 * "L" Type wrench
1 * M6*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND MGEHL3232-8 External Grooving Turning Tools MGEHL3232-8 MGEHL 3232 Outer Grooving Tool Holder MGEHL3232 8 CNC Lathe Cutter Holder Machine Metal Tool
Top Features of the MGEHL3232-8 Tool Holder
Why the MGEHL3232-8 is Essential for Your CNC Lathe
5-Point Description
-
Precision Cutting: The MGEHL3232-8 offers an impressive cutting width of 8mm, allowing for efficient grooving and detailed work on a variety of materials.
-
Durable Design: Crafted from premium materials, this tool holder is engineered for longevity and resilience, ensuring consistent performance even in demanding environments.
-
Wide Compatibility: Compatible with MGMN800-M, MGGN800-M, and MRMN800-M inserts, this tool holder provides versatility for different machining applications.
-
Easy Installation: The package includes all necessary components—screws (M6*20) and a wrench (L5)—for a quick and straightforward setup, reducing downtime in your workflow.
-
Ideal for Professionals: Designed for both high-volume production and intricate projects, this tool holder is perfect for machinists seeking to enhance their operational efficiency and quality.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
