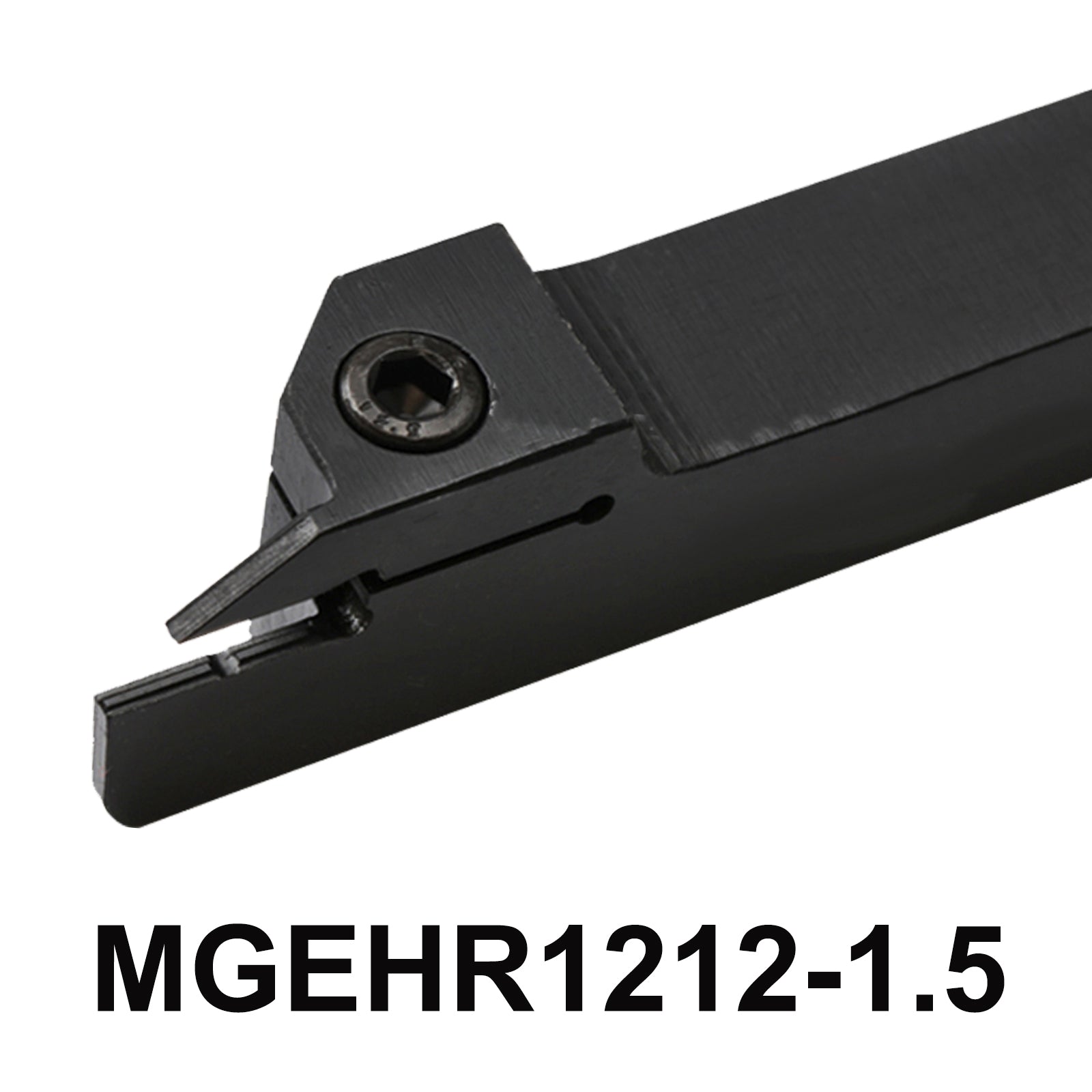

Buy MGEHR1212-1.5 External Cut-Off Grooving Tool Holder 12*12*100mm - CNC Lathe Holder
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The MGEHR1212-1.5 is a high-quality external grooving and slotting tool designed for precision machining with CNC lathes.
Compatible with MGMN150-M inserts, With a cutting width of 1.5mm and a compact size of 12*12*100mm.
Product parameters:
-
Tool Holder Model: MGEHR1212-1.5
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 12 * 12 * 100 mm
-
Cutting Width : About 1.5 mm
-
Applicable blade : MGMN150-M
-
Screw : M4*16
- Wrench : L3

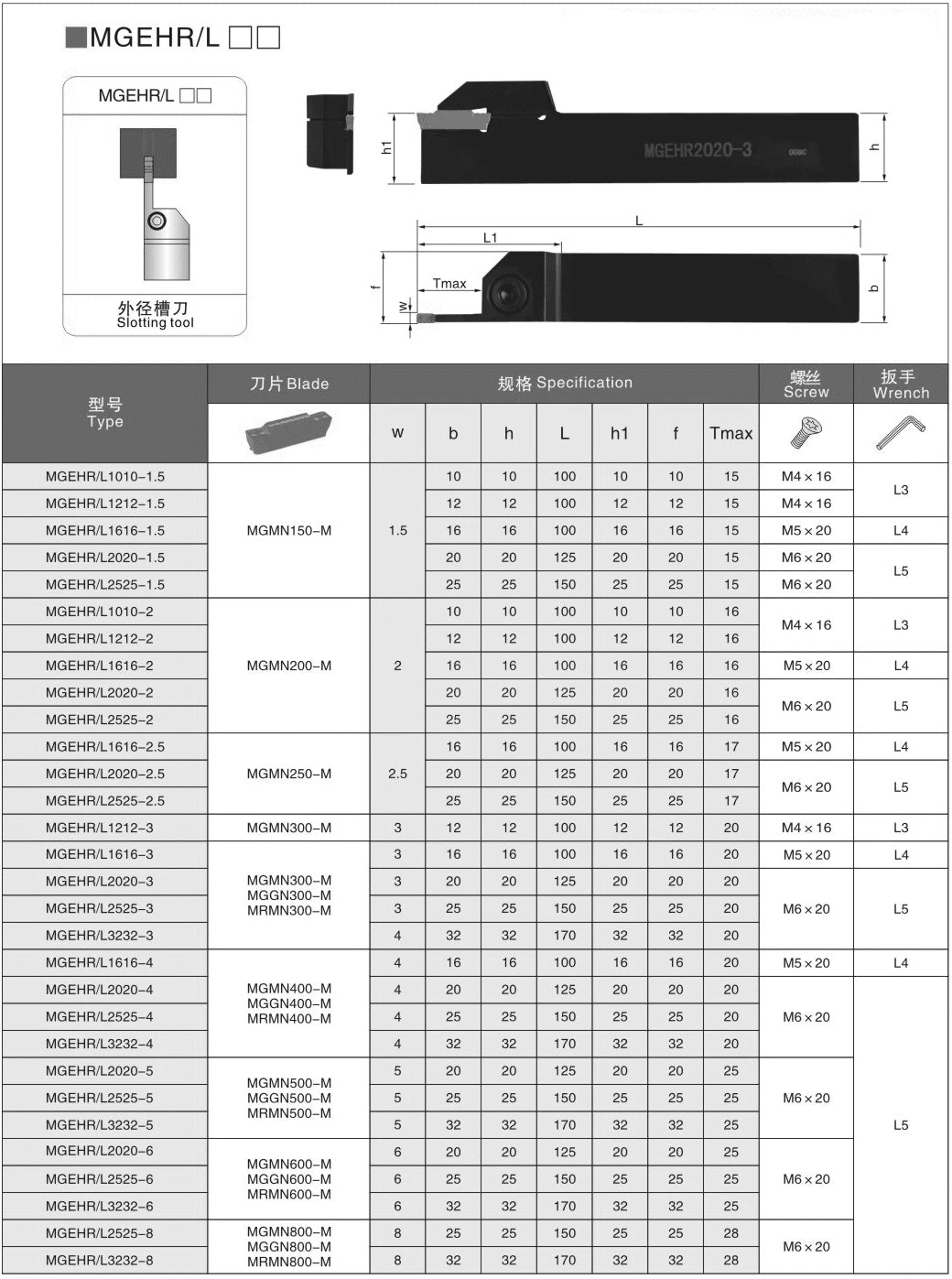

- Detailed Dimensions of the tool holder :as pictured
Package Contents:
1 * MGEHR1212-1.5 holder
1 * "L" Type wrench
1 * M4*16 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND MGEHR1212-1.5 External Grooving Turning Tools MGEHR1212-1.5 MGEHR 1212 MGEHR1212 1.5 CNC Lathe Cutter Holder Machine Metal Tool
Elevate Your CNC Machining with Our High-Quality Grooving Tool
Product Features and Benefits of the MGEHR1212-1.5 Tool Holder
5-Point Description
-
Exceptional Precision: The MGEHR1212-1.5 tool holder is engineered to deliver unparalleled precision in external grooving applications, making it perfect for professional machinists and hobbyists alike.
-
Durable Construction: Crafted from high-quality materials, this CNC lathe cutter holder guarantees durability and longevity, ensuring consistent performance even under demanding machining conditions.
-
User-Friendly Design: The package includes a complete set of screws (M4*16) and a convenient L3 wrench, making setup and adjustments effortless and straightforward.
-
Compatible Inserts: Designed for use with MGMN150-M inserts, this tool holder offers versatility and compatibility, enhancing your machining capabilities across various materials.
-
Compact Size: With dimensions of 12*12*100mm and a cutting width of 1.5mm, this tool holder is ideal for intricate grooving tasks in tight spaces, providing superior control and accuracy.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
