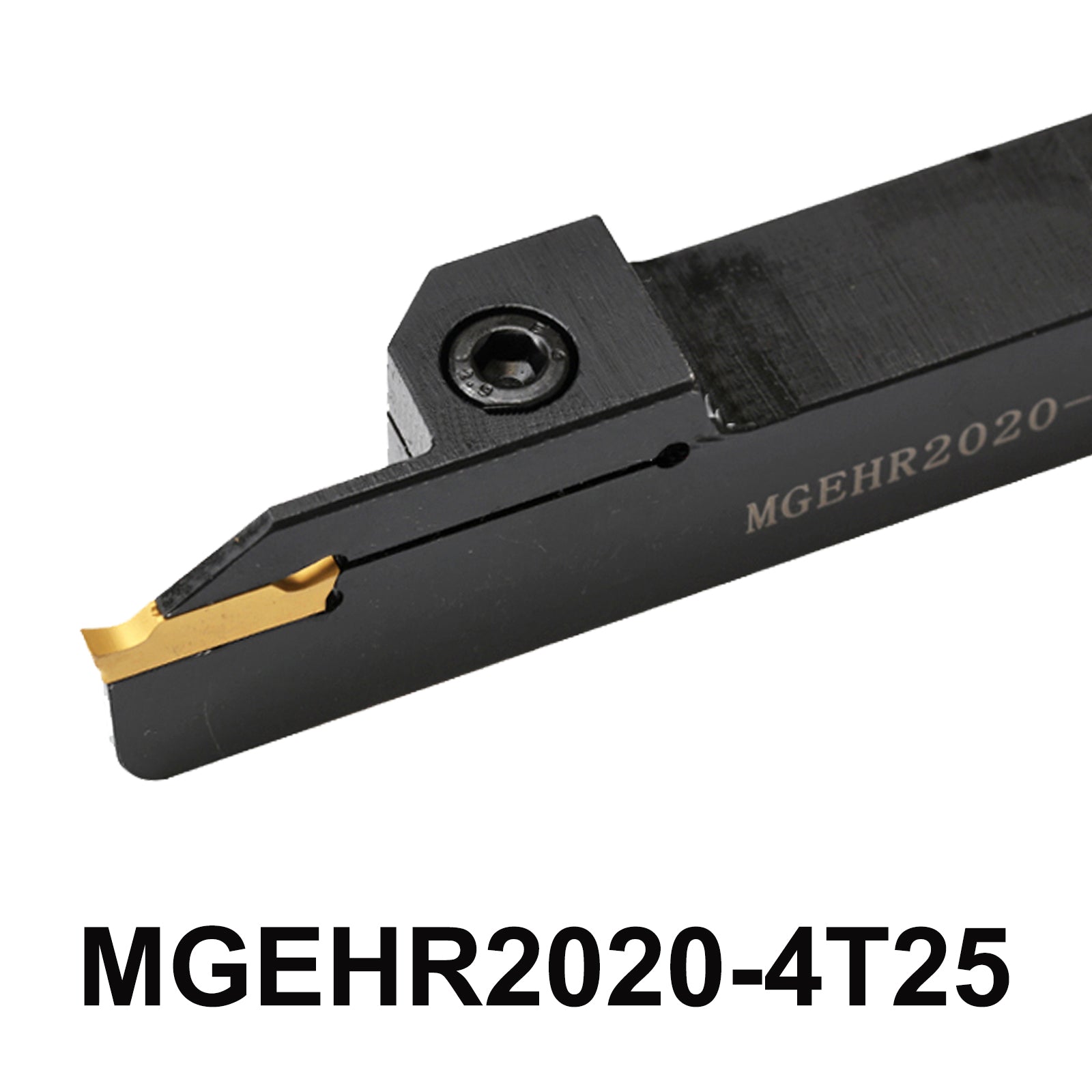

Buy MGEHR2020-4T25 Grooving Lathe Tool Holder | High-Quality CNC Machining Tool
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Introducing the MGEHR2020-4T25 grooving lathe tool, your ideal solution for precise and efficient grooving in CNC lathe applications.
With dimensions of 20x20x125mm and a cutting width of 4mm. Compatible with MGMN400-M MGGGN400-M MRMN400-M inserts
Product parameters:
-
Tool Holder Model: MGEHR2020-4T25
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 20 * 20 * 125 mm
- Tmax : 25mm
-
Cutting Width : About 4 mm
-
Applicable blade : MGMN400-M MGGGN400-M MRMN400-M
-
Screw : M6*20
-
Wrench : L5
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 *MGEHR2020-4T25 grooving lathe tool
1 * "T" Type wrench
1 * M6*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND MGEHR2020-4T25 External Grooving Turning Tools MGEHR2020-4T25 MGEHR2020 grooving lathe tool MGEHR2020 4T25 CNC Lathe Cutter Holder
Maximize Your Machining Efficiency with the MGEHR2020-4T25 Tool Holder
Key Features of the MGEHR2020-4T25 Grooving Lathe Tool
5-Point Description
-
Compact Design: The MGEHR2020-4T25 grooving lathe tool features a compact size of 20mm x 20mm x 125mm, making it ideal for precision machining in tight spaces without compromising on performance.
-
Versatile Cutting Width: With a cutting width of 4mm and a maximum depth of 25mm, this tool holder is engineered for versatile grooving and cut-off operations, ensuring clean and accurate results.
-
Complete Package: Each purchase includes the tool holder, M6 screws, and an L5 wrench, providing everything you need for quick setup and reliable performance right out of the box.
-
Compatible Inserts: Designed to work seamlessly with MGMN400-M, MGGGN400-M, and MRMN400-M inserts, the MGEHR2020-4T25 offers flexibility and efficiency for various machining applications.
-
Durable Construction: Crafted from high-quality materials, this CNC lathe cutter holder is built to withstand demanding machining environments, ensuring longevity and consistent results.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
