Shop MGEHR2525-6T30 Grooving Turning Tool Holder | High-Quality CNC Machining Tool
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:

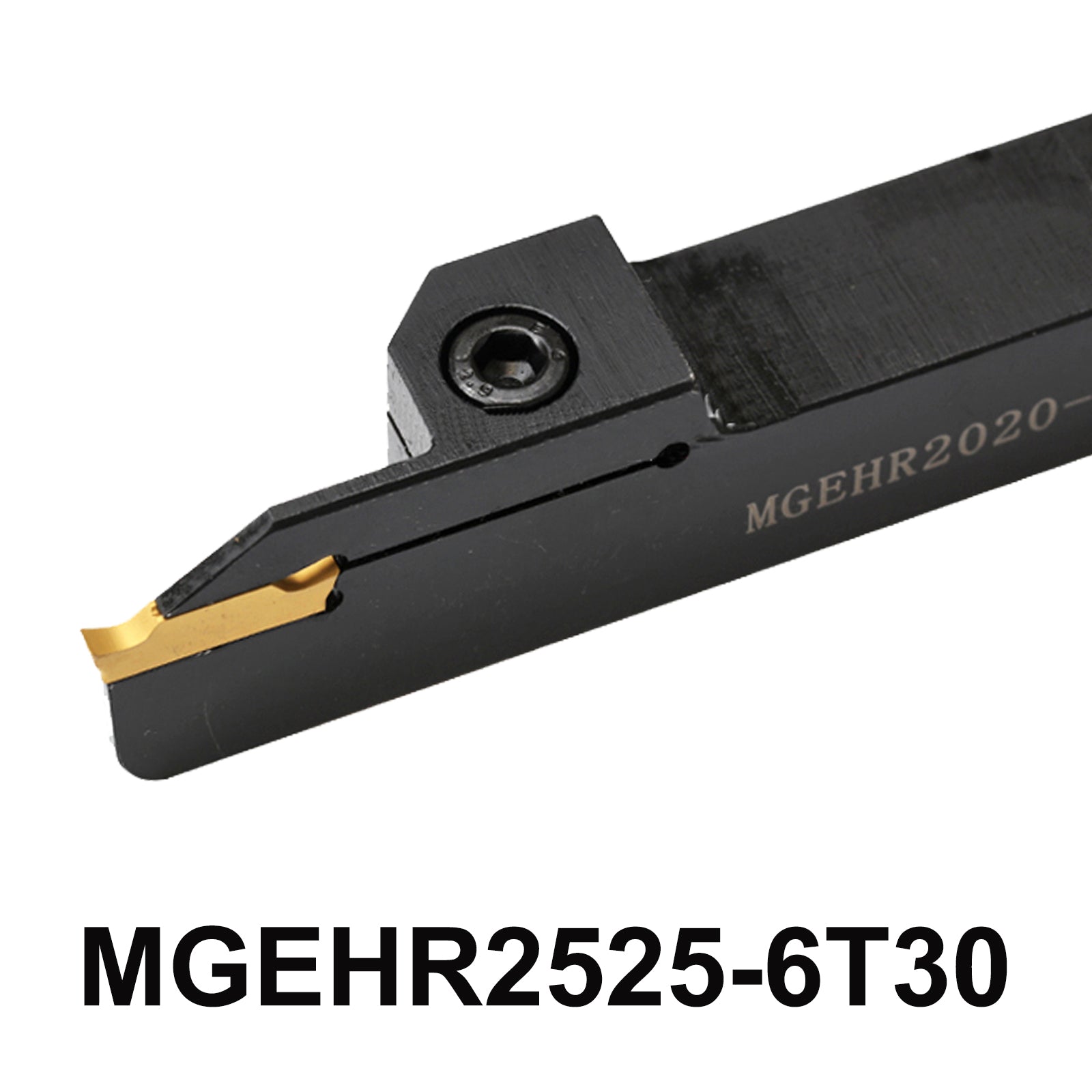

Introducing the MGEHR2525-6T30 Grooving Turning Tool Holder, your ideal solution for precise and efficient grooving in CNC lathe applications.
With dimensions of 25x25x150mm and a cutting width of 6mm. Compatible with MGMN600-M MGGN600-M MRMN600-M inserts
Product parameters:
-
Tool Holder Model: MGEHR2525-6T30
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 25 * 25 * 150 mm
- Tmax : 30 mm
-
Cutting Width : About 6 mm
-
Applicable blade : MGMN600-M MGGN600-M MRMN600-M
-
Screw : M6*20
-
Wrench : L5
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 *MGEHR2525-6T30 Grooving Turning Tool Holder
1 * "T" Type wrench
1 * M6*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND MGEHR2525-6T30 Grooving Turning Tool Holder MGEHR2525-6T30 MGEHR2525 MGEHR2525 6T30 CNC Lathe Cutter Holder Machine Metal Tool
Achieve Superior Machining Results with the MGEHR2525-6T30 Tool Holder
Essential Features of the MGEHR2525-6T30 Grooving Turning Tool Holder
5-Point Description
-
Optimal Size for Versatility: The MGEHR2525-6T30 Grooving Turning Tool Holder boasts dimensions of 25mm x 25mm x 150mm, offering an ideal balance between size and performance for various machining applications.
-
Efficient Cutting Width: With a cutting width of 6mm and a maximum depth of 30mm, this tool holder is perfect for precision grooving and turning, delivering clean and efficient cuts every time.
-
Complete Tooling Package: Each purchase comes with the tool holder, M6 screws, and an L5 wrench, ensuring you have all the necessary components for a seamless setup and operation.
-
Compatible with Leading Inserts: Designed for use with MGMN600-M, MGGN600-M, and MRMN600-M inserts, the MGEHR2525-6T30 provides flexibility for different materials and applications, enhancing your machining capabilities.
-
Durable and Reliable Construction: Made from high-quality materials, this CNC lathe cutter holder is built to withstand rigorous machining conditions, ensuring long-lasting performance and reliability.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
