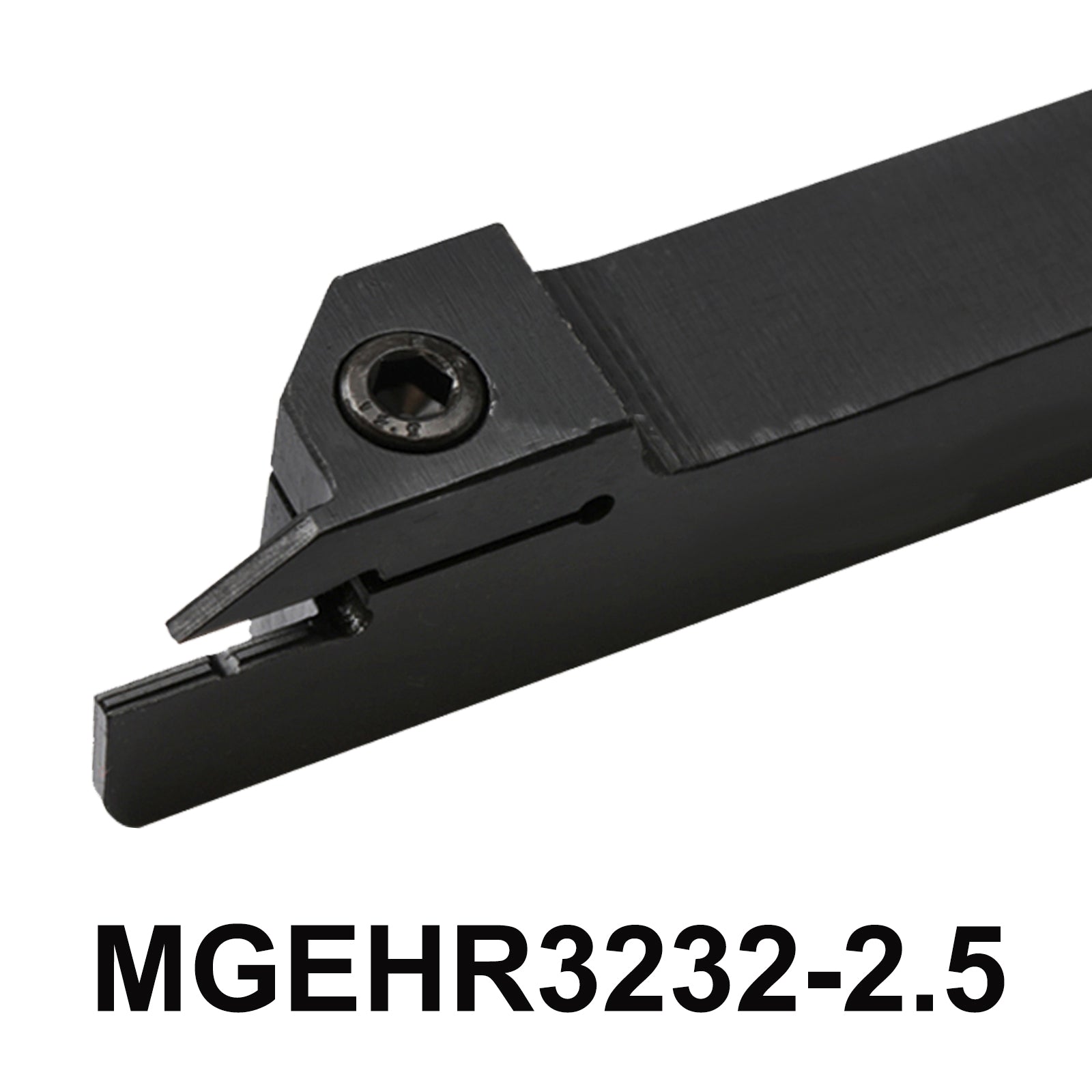

MGEHR3232-2.5 Slot Cutting Tool – Precision Engineering for CNC Lathes
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
The MGEHR3232-2.5 Slot Cutting Tool, the perfect solution for precision grooving in CNC machining.
Designed with a lathe size of 32mm x 32mm x 170mm and a cutting width of 2.5mm, Compatible with MGMN250-M inserts.
Product parameters:
-
Tool Holder Model: MGEHR3232-2.5
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 32 * 32 * 170 mm
-
Cutting Width : About 2.5 mm
-
Applicable blade : MGMN250-M
-
Screw : M6*20
- Wrench : L5
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * MGEHR3232-2.5 Slot Cutting Tool
1 * "L" Type wrench
1 * M6*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND MGEHR3232-2.5 External Grooving Turning Tools MGEHR3232-2.5 MGEHR 2525 MGEHR3232 2.5 CNC Lathe Cutter Holder Slot Cutting Tool
-
Exceptional Cutting Performance for Slotting Applications
-
Complete Tool Package: Includes Holder, Screws, and Wrench
-
Versatile Compatibility: Designed for MGMN250-M Inserts
-
Features of the MGEHR3232-2.5 Slot Cutting Tool
-
Specifications: Tailored for Efficiency and Precision
-
Applications: Perfect for Diverse Machining Tasks
5-Point Description
- Robust Design: The MGEHR3232-2.5 Slot Cutting Tool features a lathe size of 32mm x 32mm x 170mm, ensuring durability and stability during operation, even under demanding conditions.
- Optimized Cutting Width: With a cutting width of 2.5mm, this slot cutting tool delivers clean and precise cuts, enhancing the quality and accuracy of your projects.
- All-Inclusive Package: Each set comes complete with the tool holder, M6*20 screws, and an L5 wrench, providing everything needed for seamless installation and immediate use.
- Insert Compatibility: Specifically designed for MGMN250-M inserts, this tool offers versatility across various materials, making it suitable for a wide range of machining applications.
- High-Quality Construction: Made from premium materials, the MGEHR3232-2.5 Slot Cutting Tool is engineered for longevity and performance, ensuring it can withstand rigorous CNC machining demands.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
