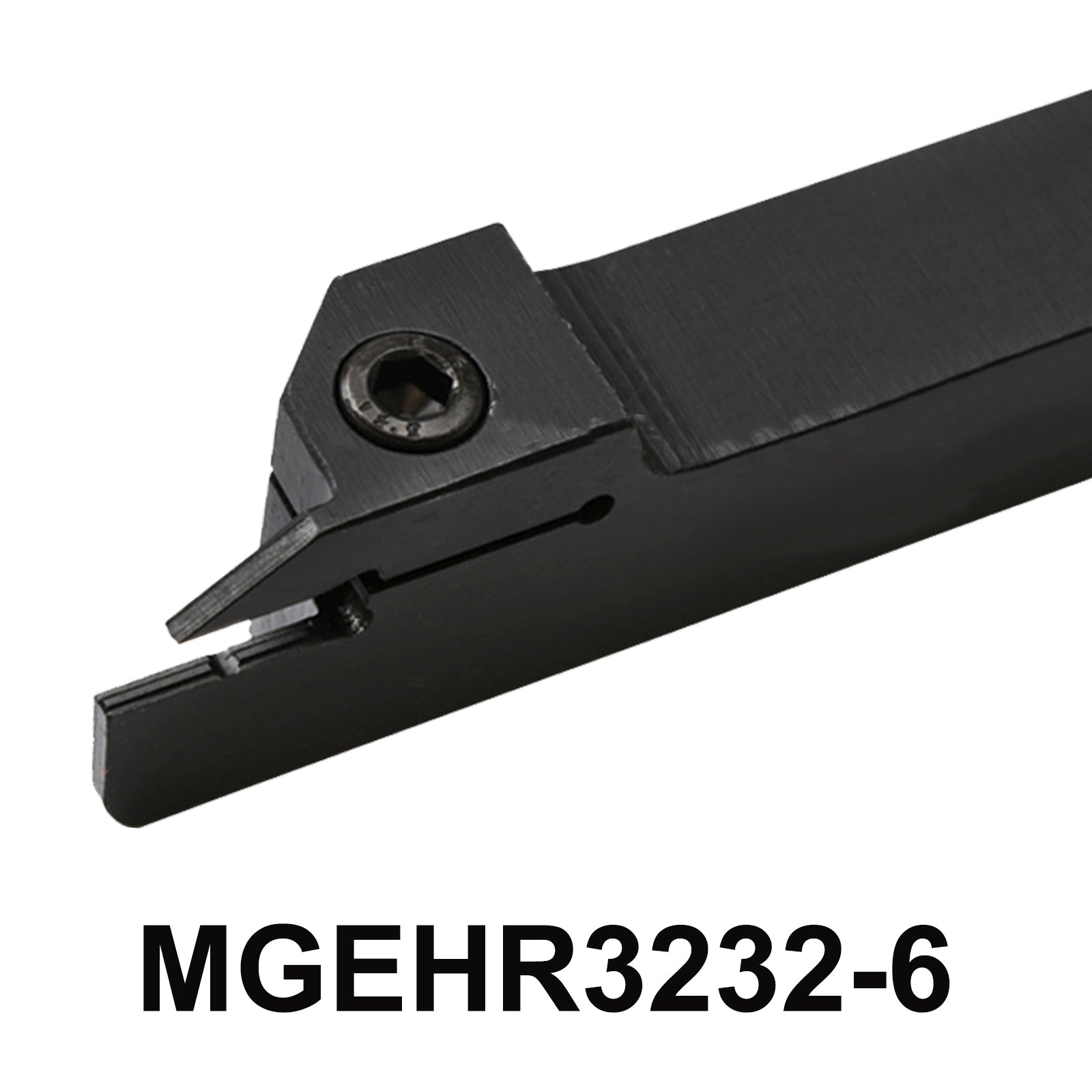

MGEHR3232-6 Grooving Lathe Tool Holder – High Precision for CNC Machining
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
MGEHR3232-6 Grooving Lathe Tool Holder , a precision-engineered CNC lathe cutter holder that delivers superior performance for slot cutting applications.
With a tool holder size of 32mm x 32mm x 170mm and a cutting width of 6mm ,Compatible with inserts such as MGMN600-M, MGGN600-M, and MRMN600-M
Product parameters:
-
Tool Holder Model: MGEHR3232-6
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 32 * 32 * 170 mm
-
Cutting Width : About 6 mm
-
Applicable blade : MGMN600-M MGGN600-M MRMN600-M
-
Screw : M6*20
- Wrench : L5
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * MGEHR3232-6 Grooving Lathe Tool Holder
1 * "L" Type wrench
1 * M6*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND MGEHR3232-6 Grooving Lathe Tool Holder MGEHR3232-6 MGEHR 3232 MGEHR3232 6 CNC Lathe Cutter Holder Machine Metal Tool
-
Enhance Your Machining Efficiency with MGEHR3232-6
-
Key Features of the MGEHR3232-6 Grooving Tool Holder
-
The Perfect Tool for All Your Grooving Needs
-
Sturdy and Reliable Construction
-
Optimal Cutting Performance
-
Convenient Installation and Compatibility
5-Point Description
- Robust Design: Crafted from high-quality materials, the MGEHR3232-6 is built to withstand rigorous machining environments, ensuring durability and long-lasting performance.
- Precision Cutting Width: With a cutting width of 6mm, this tool holder is designed for accurate grooving, making it ideal for both standard and complex machining applications.
- Versatile Insert Compatibility: Compatible with MGMN600-M, MGGN600-M, and MRMN600-M inserts, this tool holder provides flexibility for various cutting tasks, enhancing your operational efficiency.
- Easy Setup: The package includes M6*20 screws and a convenient L5 wrench, allowing for quick and straightforward installation, so you can focus on your machining work without delay.
- Compact Size: Measuring 32x32x170mm, the MGEHR3232-6 is designed to fit seamlessly into your existing CNC setup, maximizing your workspace while maintaining performance.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
