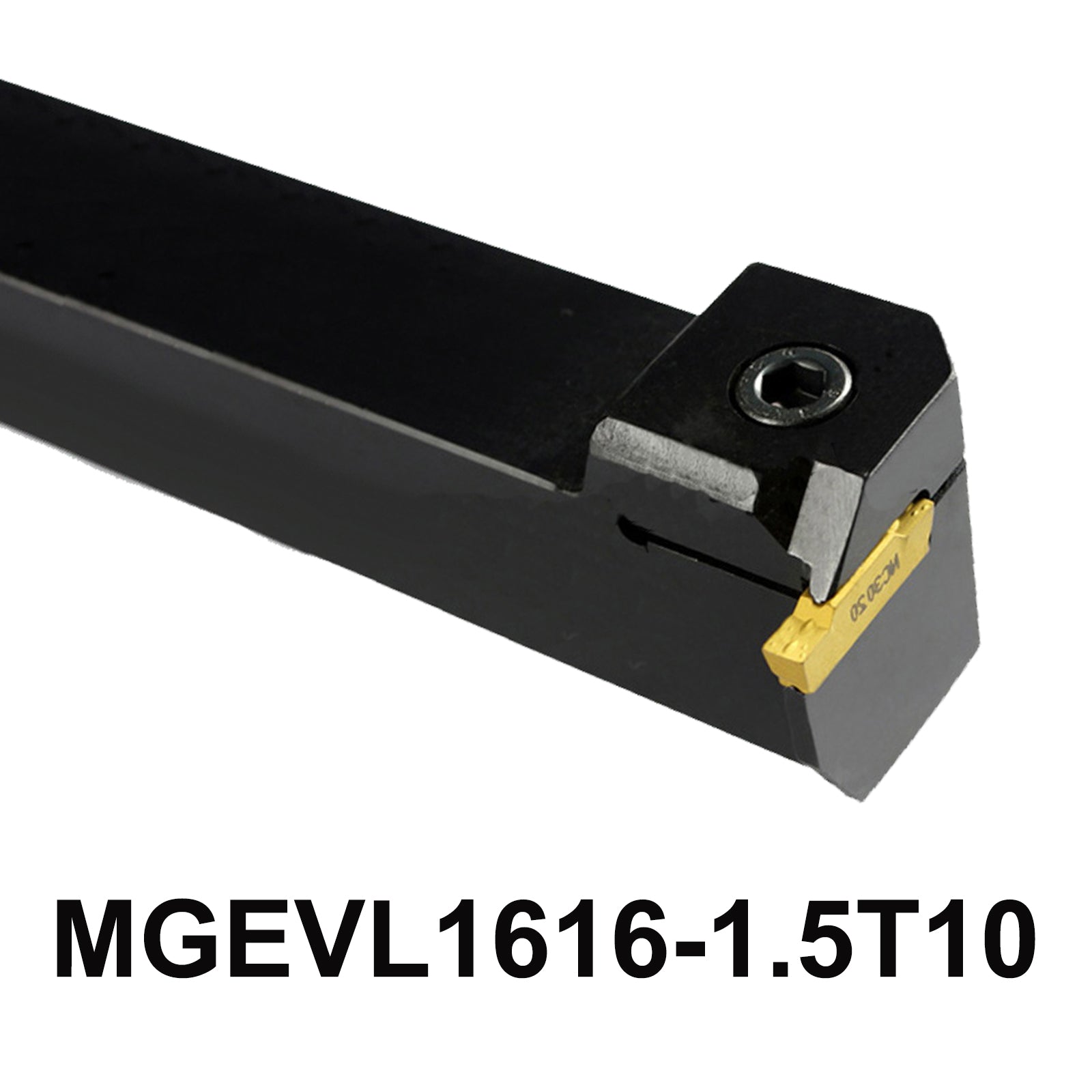

MGEVL1616-1.5T10 1.5mm Width Grooving Tool Lathe - Precision and Efficiency
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Introducing the MGEVL1616-1.5T10 Grooving Tool Lathe, your ideal solution for precise and efficient grooving in CNC lathe applications.
With dimensions of 16x16x100mm and a cutting width of 1.5mm. Compatible with MGMN150-M inserts
Product parameters:
-
Tool Holder Model: MGEVL1616-1.5T10
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 16 * 16 * 100 mm
- Tmax : 5 mm
-
Cutting Width : About 1.5 mm
-
Applicable blade : MGMN150-M
-
Screw : M5*20
-
Wrench : L4
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * MGEVL1616-1.5T10 Grooving Tool Lathe
1 * "T" Type wrench
1 * M5*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND MGEVL1616-1.5T10 Grooving Tool Lathe MGEVL1616-1.5T10 MGEVL1616 MGEVL1616 1.5T10 CNC Lathe Cutter Holder Machine Metal Tool
-
Achieve Precision with the MGEVL1616-1.5T10 Tool Holder
-
Features That Enhance Your Machining Experience
-
Complete Your CNC Arsenal with MGEVL1616-1.5T10
-
Compact Design for Efficient Machining
-
User-Friendly Installation with Included Hardware
-
Versatile Insert Compatibility for Optimal Performance
5-Point Description
-
Precision Cutting Width: Designed with a cutting width of 1.5mm, the MGEVL1616-1.5T10 Grooving Tool Lathe is perfect for intricate external grooving, ensuring high accuracy for detailed machining tasks.
-
Compact and Versatile Dimensions: With a lathe size of 16x16x100mm, this tool holder fits easily into tight spaces while providing the versatility needed for various projects in your workshop.
-
Complete Installation Package: The package includes the tool holder, M5*20 screws, and a handy L4 wrench, making installation straightforward and convenient for immediate use.
-
Compatible Inserts for Enhanced Functionality: This tool holder is designed to work seamlessly with MGMN150-M inserts, allowing for quick replacements and improved machining efficiency.
-
Durable Construction for Long-lasting Performance: Crafted from high-quality materials, the MGEVL1616-1.5T10 Grooving Tool Lathe ensures reliability and durability, making it a valuable addition to your CNC toolkit.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
