Buy MGEVL1616-4T10 Grooving Lathe Tool Holder – Precision CNC Lathe Holder
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:

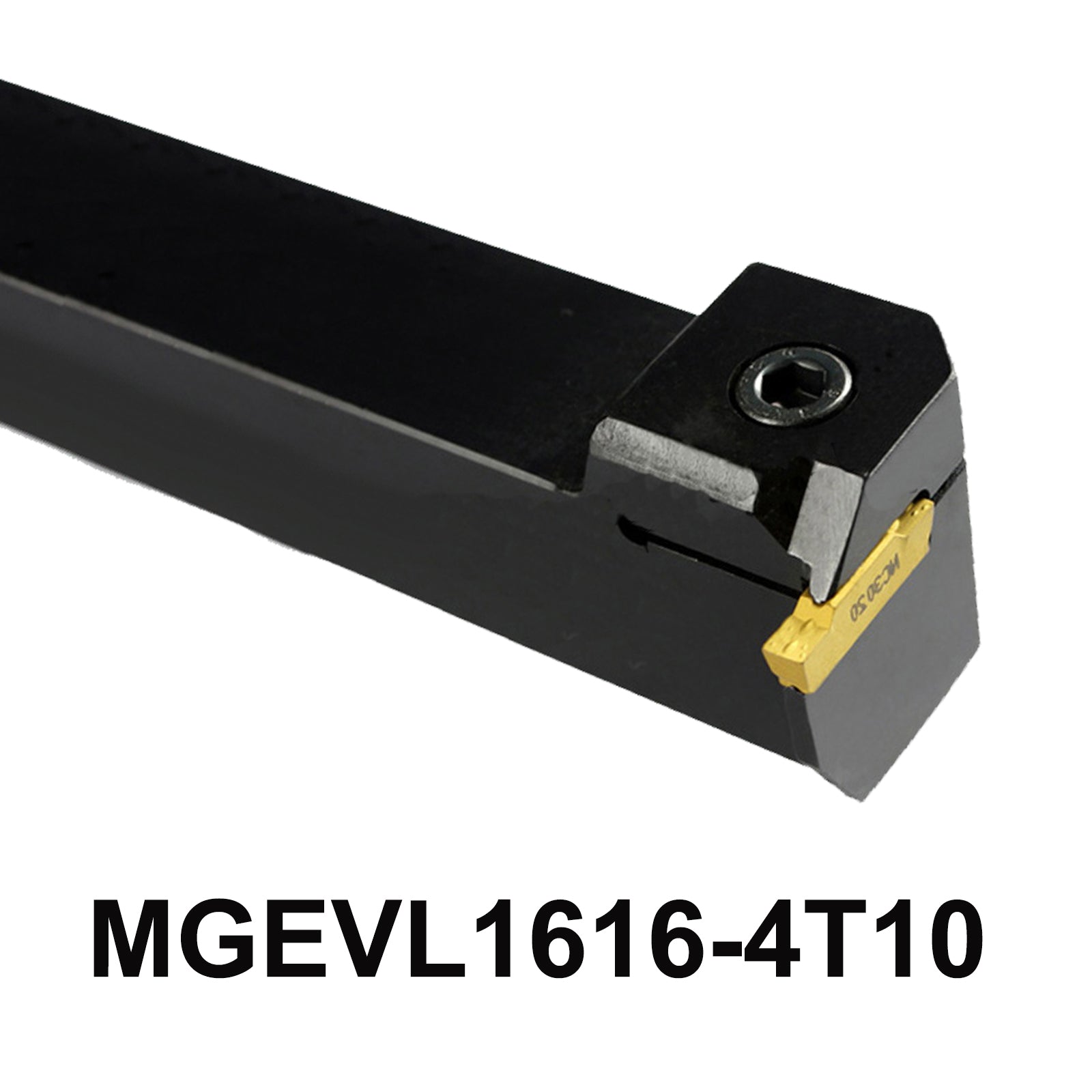

Introducing the MGEVL1616-4T10 Grooving Lathe Tool Holder , your ideal solution for precise and efficient grooving in CNC lathe applications.
With dimensions of 16x16x100mm and a cutting width of 4mm. Compatible with MGMN400-M inserts
Product parameters:
-
Tool Holder Model: MGEVR1616-4T10
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 16 * 16 * 100 mm
- Tmax : 7 mm
-
Cutting Width : About 4 mm
-
Applicable blade : MGMN400-M
-
Screw : M5*20
-
Wrench : L4
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * MGEVL1616-4T10 Grooving Lathe Tool Holder
1 * "T" Type wrench
1 * M5*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND MGEVL1616-4T10 Grooving Lathe Tool Holder MGEVL1616-4T10 MGEVL1616 MGEVL1616 4T10 CNC Lathe Cutter Holder Machine Metal Tool
Elevate Your Machining with the MGEVL1616-4T10 Cutting Tool
Complete Slotting Solution for CNC Lathe Applications
5-Point Description
-
Versatile Compatibility: Designed for CNC lathes with dimensions of 16x16x100mm, this tool holder accommodates a cutting width of 4mm and a maximum depth of cut of 7mm, making it suitable for various machining tasks.
-
Quality Engineering: Crafted with high-quality materials, the MGEVL1616-4T10 Grooving Lathe Tool Holder ensures durability and precision in your slotting operations, reducing wear and tear over time.
-
User-Friendly Package: The package includes everything you need—tool holder, M5*20 screws, and a convenient L4 wrench—allowing for quick and easy installation without additional purchases.
-
Enhanced Performance: Optimized for MGMN400 inserts, this cutting tool guarantees superior performance, enabling faster production times and exceptional finish quality.
-
Ready for Launch: Get ahead of the competition with our brand new cutting tool, launching soon on our dedicated website. Be among the first to elevate your machining capabilities!
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
